Schematic diagram
Polaris•Schematic assembly

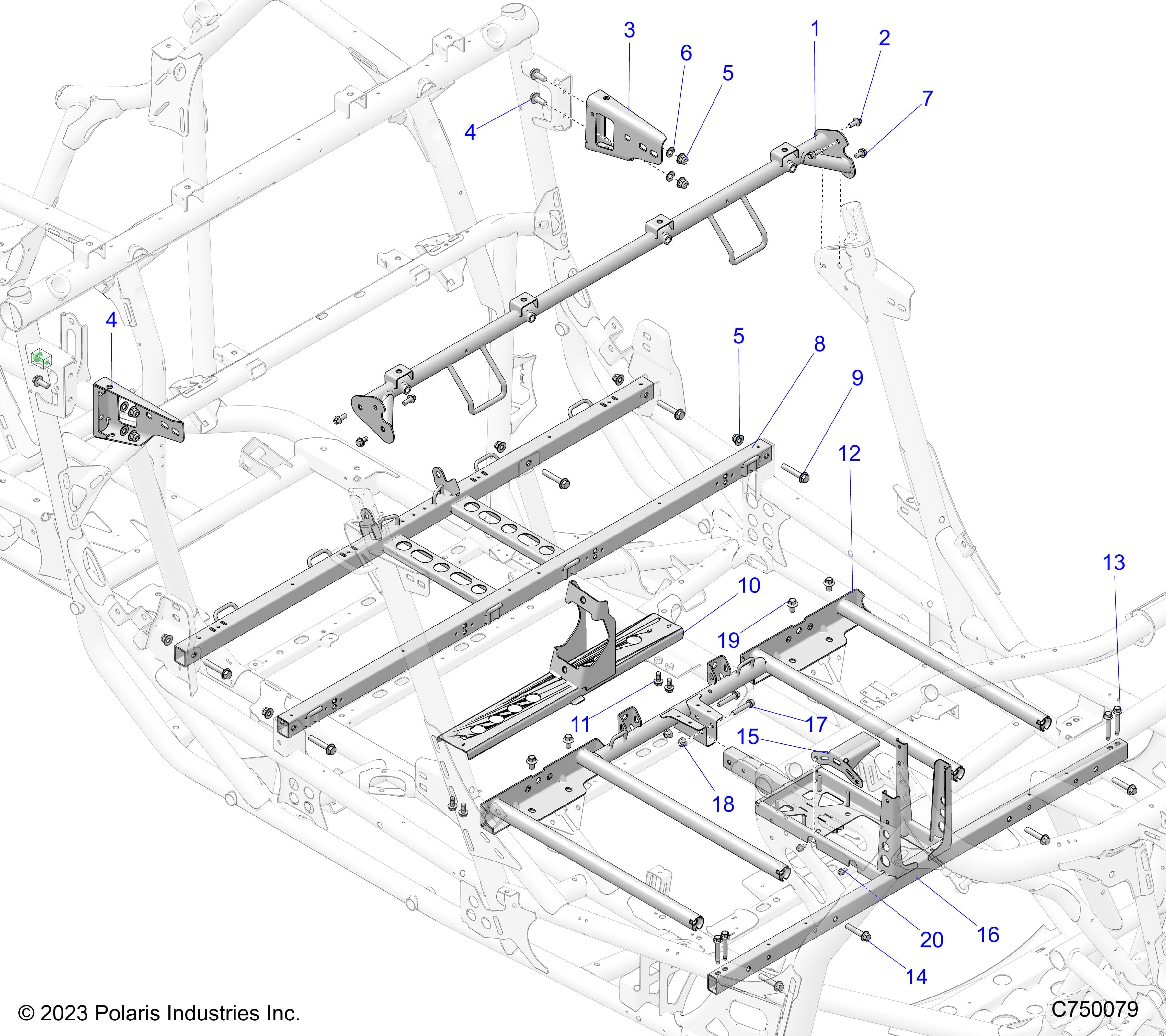

CHASSIS, MOUNTING AND BRACKETS - Z26R4P2KBL (C750079)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R4 LE Assembly ID: 260798
Vehicle Compatibility
- 2026 Polaris RZR PRO R4 LE
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1028541-458 | WELD-FRAME,CROSS BAR,MP,BLACK | 1 | $299.99 | Out of stock Est. Aug 20, 2026 | |
| 2 | 7517838 | SCR-HXFL-M8X1.25X20 10.9 ZPB | 4 | $4.99 | In stock | |
| 3 | 5276076-458 | BRKT-MOUNT,HINGE,UPR,LH,BLK | 1 | $84.99 | Out of stock Est. Aug 28, 2026 | |
| 4 | 5276077-458 | BRKT-MOUNT,HINGE,UPR,RH,BLK | 1 | $84.99 | Out of stock Est. Aug 28, 2026 | |
| 5 | 7547423 | NUT-M10X1.5 HFN NYLOC ZOD | 11 | Price TBD | Out of stock | |
| 6 | 7556153 | WASHER-3/8 FW SAE STL THRU-HRD | 4 | Price TBD | Out of stock | |
| 7 | 7518695 | BOLT-M8X1.25X16,HXHDFLG,W/PTCH | 2 | Price TBD | Out of stock | |
| 8 | 1024042-329 | WELD-SEAT BASE,REAR,MP,ECOAT | 1 | $374.99 | In stock | |
| 9 | 7518474 | SCR-HXFL-M10X1.5X55 8.8 ZY3 | 5 | $5.99 | In stock | |
| 10 | 1025195-329 | WELD-MOUNT,PROPSHAFT,ECOAT | 1 | $99.99 | In stock | |
| 11 | 7518450 | BOLT-M8X1.25X20,HXHDFLG,W/PTCH | 4 | $1.99 | In stock | |
| 12 | 1025197-329 | WELD-SEAT BASE,FRT,ECOAT | 1 | $354.99 | In stock | |
| 13 | 7519245 | SCR-HXFL-M8X1.25X50 DP ZODP30 | 4 | $4.99 | In stock | |
| 14 | 7518687 | SCR-M10X1.50X50 HX/FL-Y | 4 | $5.99 | In stock | |
| 15 | 5274421-329 | BRKT,SUPPORT,CLUTCH-DUCT,ECOAT | 1 | $29.99 | In stock | |
| 16 | 1028545-329 | WELD-SCM MOUNT,PRO R,MP,ECOAT | 1 | $409.99 | In stock | |
| 17 | 7516732 | SCR-SH-M8X1.25X30 8.8 ZPC | 2 | $1.99 | In stock | |
| 18 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 19 | 7517951 | SCR-HXFL-M10X1.5X16 8.8 ZPB | 4 | $6.99 | In stock | |
| 20 | 7521331-12 | SCR-HXFL-M6X1.0X12 10.9ZFB | 2 | $4.99 | In stock |
