Schematic diagram
Polaris•Schematic assembly
BODY, HVAC ROUTING
Product Description

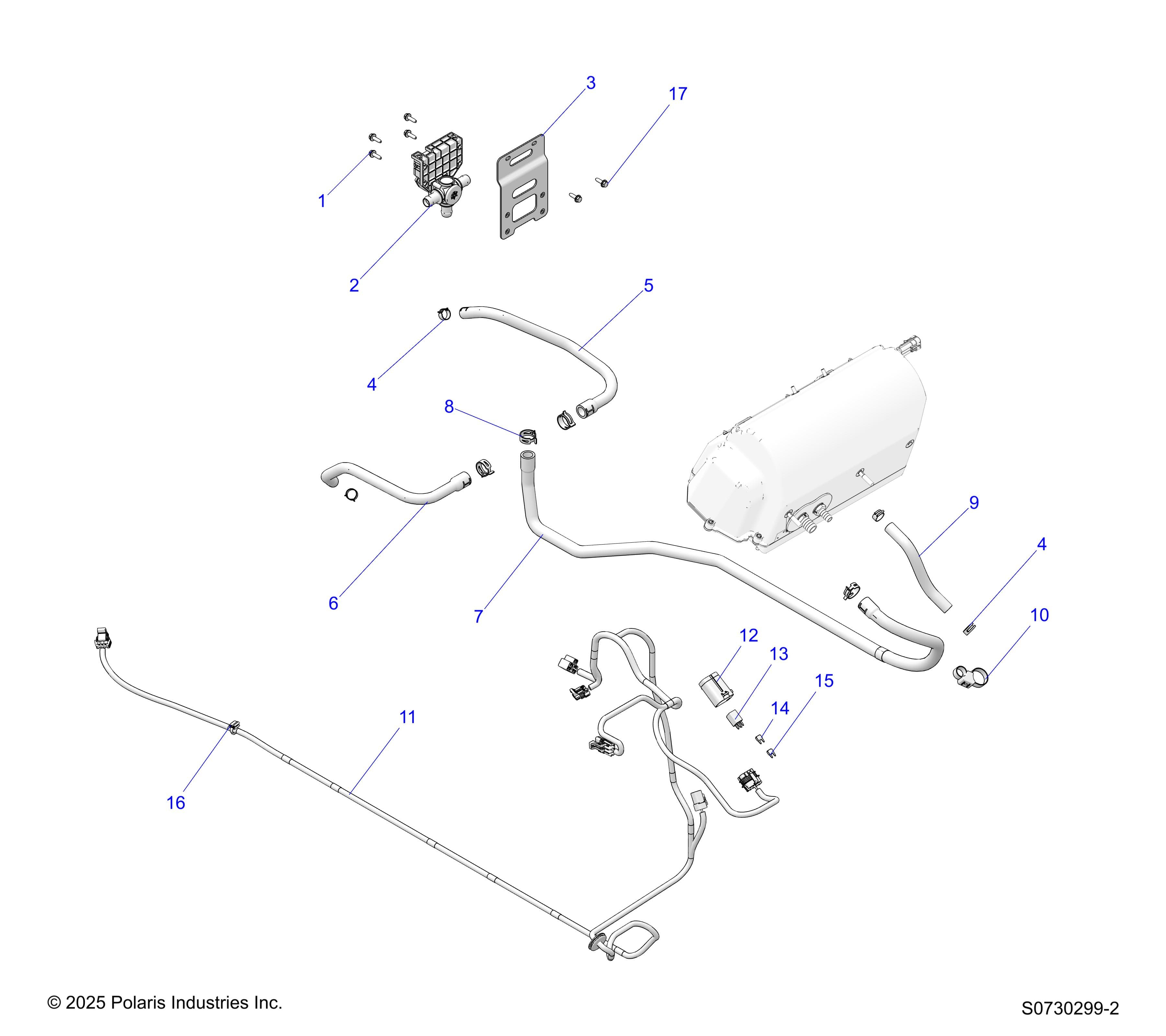

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 260281
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7517305 | SCREW-SH-M6X1.0X20 8.8 ZPB | 4 | $5.99 | In stock | |
| 2 | 2415244 | ASM-VALVE,3-WAY | 1 | $309.99 | In stock | |
| 3 | 5267467-458 | BRKT-ACCY,HEATER,MNT,HRC,BLK | 1 | $59.99 | In stock | |
| 4 | 7081026 | CLAMP-HOSE,SPRING .81 | 4 | $9.99 | In stock | |
| 5 | 5417211 | HOSE-ACCY HEATER,ENG-3WAY,HERC | 1 | $44.99 | In stock | |
| 6 | 5417212 | HOSE-ACCY COOLER 3WAY-ENG,HERC | 1 | $39.99 | In stock | |
| 7 | 5417010 | HOSE-HEATER RETURN,HRC | 1 | $64.99 | Out of stock Est. Jul 24, 2026 | |
| 8 | 7080841 | SPRINGBAND-CLAMP 27/12,GREEN | 4 | $8.99 | In stock | |
| 9 | 5416358 | HOSE-HEATER RETURN | 1 | $18.99 | In stock | |
| 10 | 7081807 | CABLE-TIE,DIA14-45MM,DUAL-LOOP | 1 | $9.99 | In stock | |
| 11 | 2414867 | HARNESS-ACCYHTR,HERC [INCLUDES 12-16] | 1 | Price TBD | Out of stock | |
| 12 | 4014381 | ACCESSORY RELAY CAP W/CLIP | 1 | $39.99 | In stock | |
| 13 | 4011283 | RELAY-SPST,SERIES 303,SEALED | 1 | Price TBD | Out of stock | |
| 14 | 4010752 | FUSE-2AMP,ATM,BLADE STYLE,MINI | 1 | $6.99 | In stock | |
| 15 | 2434017 | FUSE-PARK,20 AMP | 1 | Price TBD | Out of stock | |
| 16 | 7082402 | CLIP-EDGE, 1-3mm THICKNESS | 1 | $8.99 | In stock | |
| 17 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | $1.49 | In stock |
