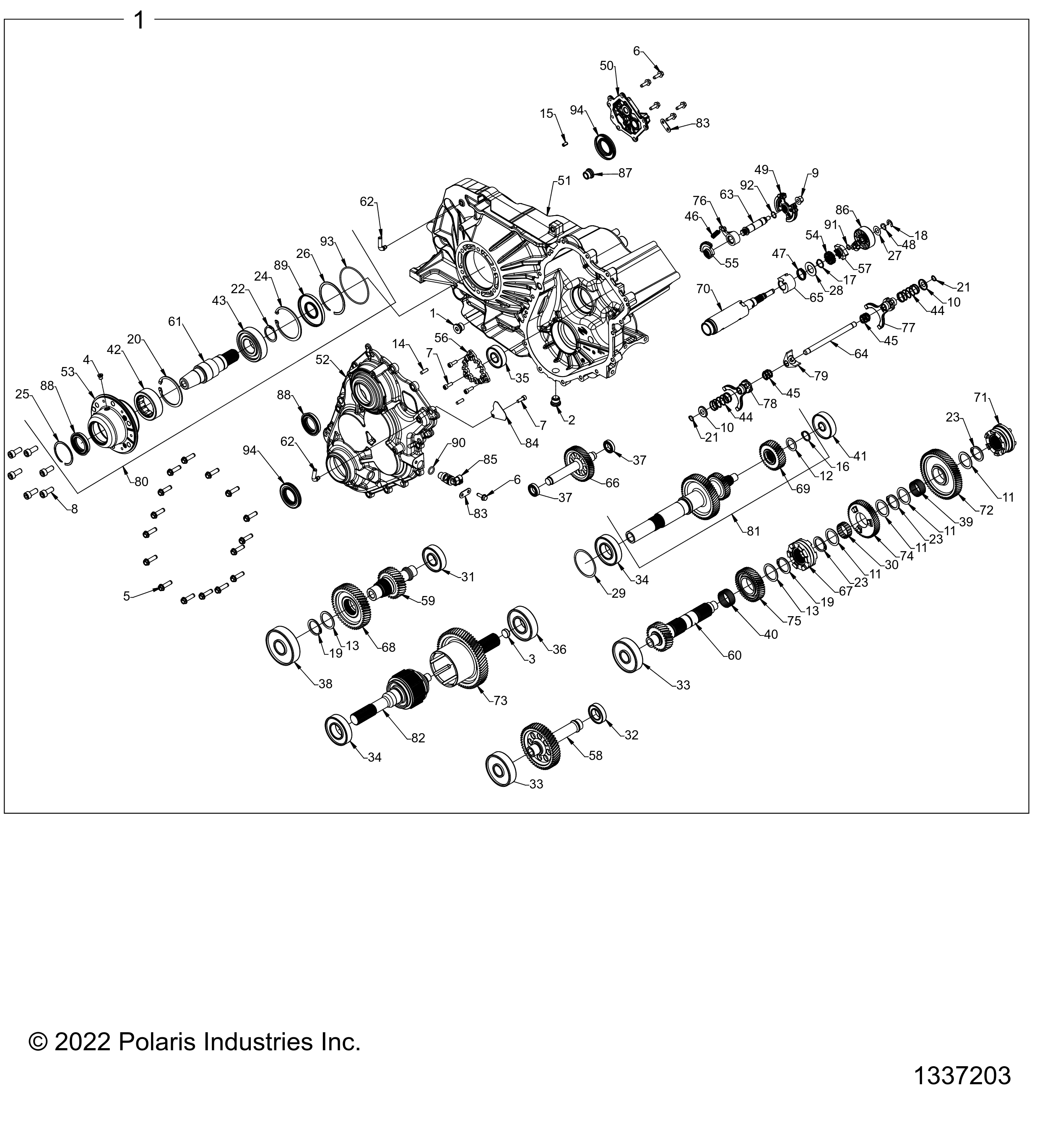

Schematic diagram
Polaris•Schematic assembly
DRIVE TRAIN, GEARCASE, MAIN - Z26RPP2KBL (1337203)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R LE Assembly ID: 260183
Vehicle Compatibility
- 2026 Polaris RZR PRO R LE
Checkout Note
Please note that 39 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337203 | ASM-GEARCASE,LIMT,COMPLETE,2P [INCL ALL] | 0 | $4,399.99 | In stock | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 3236578 | PLUG-EXPANSION,20 X 7 | 1 | $17.99 | In stock | |
| 4 | 3236579 | PLUG, HOLLOW HEX 5/16-24 | 1 | $7.99 | In stock | |
| 5 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 16 | Price TBD | Out of stock | |
| 6 | 3235206 | SCREW, HEX FLANGE HEAD, M6 X 1 X 20 | 6 | Price TBD | Out of stock | |
| 7 | 3235332 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 | 4 | Price TBD | Out of stock | |
| 8 | 3236580 | SCREW, SOCKET HEAD, CAP, M10 X 1.5 X 25 | 6 | $13.99 | In stock | |
| 9 | 3235210 | NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 | 1 | Price TBD | Out of stock | |
| 10 | 3234091 | WASHER-CUP | 2 | $11.99 | In stock | |
| 11 | 3235211 | WASHER-32.3X42X1.5(115288) | 4 | Price TBD | Out of stock | |
| 12 | 3236581 | WASHER, 22.70 X 32.0 X 1.5 | 1 | Price TBD | Out of stock | |
| 13 | 3236582 | WASHER, 35.3 X 44 X 1.5 | 2 | $8.99 | Out of stock Est. Oct 8, 2026 | |
| 14 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 15 | 7043746 | PIN, SPRING, SLOTTED 6 X 12 | 1 | Price TBD | Out of stock | |
| 16 | 7710434 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 17 | 3233045 | RING,RETAINING BASIC,EXTERNAL 0.75 | 1 | $5.99 | In stock | |
| 18 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 19 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 2 | Price TBD | Out of stock | |
| 20 | 3236619 | RING, RETAINING BASIC INTERNAL 72 | 1 | $12.99 | In stock | |
| 21 | 3234090 | RING,RETAINING BASIC,EXTERNAL 0.428 | 2 | $12.99 | In stock | |
| 22 | 7710917 | RING, RETAINING EXTERNAL | 1 | $24.99 | In stock | |
| 23 | 3235214 | RING-RETAIN,EXT,MSR-32(130296) | 3 | Price TBD | Out of stock | |
| 24 | 7710912 | RING, RETAINING BASIC INTERNAL 80 | 1 | $29.99 | In stock | |
| 25 | 3236700 | RING, RETAINING KLM-58 | 1 | $16.99 | In stock | |
| 26 | 7710918 | RING, RETAINING KLM-80 | 1 | $19.99 | In stock | |
| 27 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | Price TBD | Out of stock | |
| 28 | 3235883 | SPACER, 19.4 X 34.0 X 2.0 | 1 | $29.99 | In stock | |
| 29 | 3236585 | SHIM, 70 OD X 62 ID | 1 | $84.99 | In stock | |
| 30 | 3233014 | BEARING, NEEDLE | 1 | Price TBD | Out of stock | |
| 31 | 3233020 | BEARING | 1 | Price TBD | Out of stock | |
| 32 | 3233305 | Bearing, Ball | 1 | $39.99 | In stock | |
| 33 | 3235539 | BEARING, BALL, 6405 C3 25X80X21 | 2 | $64.99 | In stock | |
| 34 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 2 | Price TBD | Out of stock | |
| 35 | 3236587 | BEARING, BALL, 6304 C3 20X52X15 | 1 | Price TBD | Out of stock | |
| 36 | 3235099 | BEARING, BALL (35X80X21) | 1 | $39.99 | Out of stock Est. Aug 10, 2026 | |
| 37 | 3235807 | BEARING, BALL 6903 17 X 30 X 7 | 2 | Price TBD | Out of stock | |
| 38 | 3236588 | BEARING, BALL, 6406 C3, 30 X 90 X 23 | 1 | $79.99 | In stock | |
| 39 | 3236589 | BEARING, NEEDLE, 32 X 37 X 17 | 1 | $29.99 | In stock | |
| 40 | 3236734 | BEARING, NEEDLE, CAGE ASSY, 35 X 40 X 17 | 1 | $34.99 | In stock | |
| 41 | 3236590 | BEARING, BALL, 6403 C3 17X62X17 | 1 | $64.99 | In stock | |
| 42 | 3236591 | BEARING, ROLLER, RNU2207 | 1 | $59.99 | In stock | |
| 43 | 3236592 | BEARING, DGB 6307CO | 1 | $54.99 | In stock | |
| 44 | 3234078 | SPRING,COMPRESSION, .92 O.D. X 2.000 | 2 | $29.99 | In stock | |
| 45 | 3234089 | SPRING, COMPRESSION, 0.46 I.D. X 0.73 | 2 | $34.99 | In stock | |
| 46 | 3234578 | SPRING, COMPRESSION 0.36 O.D. X 1.125 | 1 | $16.99 | In stock | |
| 47 | 3235885 | SPRING, TORSION | 1 | $24.99 | In stock | |
| 48 | 3235327 | WASHER-SPRING,210393 | 1 | Price TBD | Out of stock | |
| 49 | 3236593 | PULLEY, SHIFT | 1 | $49.99 | In stock | |
| 50 | 3235809 | COVER, SECTOR GEARS MACH | 1 | $49.99 | Out of stock Est. Jul 28, 2026 | |
| 51 | 3236594 | CASE, MACH | 1 | $569.99 | Out of stock Est. Nov 18, 2026 | |
| 52 | 3236716 | COVER, MACH | 1 | $399.99 | In stock | |
| 52 | 3239873 | SUBASSEMBLY, COVER [HD/RACE] | 1 | Price TBD | Out of stock | |
| 52 | 3239873 | SUBASSEMBLY, COVER | 1 | Price TBD | Out of stock | |
| 53 | 3236596 | HOUSING, PTO MACH | 1 | $169.99 | In stock | |
| 54 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 55 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 56 | 3235456 | PLATE, PARK, 12 FACE | 1 | $49.99 | In stock | |
| 57 | 3236638 | STAR, DETENT | 1 | $39.99 | In stock | |
| 58 | 3236597 | SHAFT, IDLER 51T | 1 | $169.99 | In stock | |
| 59 | 3236598 | SHAFT, IDLER 31T | 1 | $274.99 | In stock | |
| 60 | 3236600 | SHAFT, REVERSE 29T | 1 | $179.99 | In stock | |
| 61 | 5142333 | SHAFT, PTO | 1 | $179.99 | In stock | |
| 62 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 2 | Price TBD | Out of stock | |
| 63 | 3235238 | SHAFT-SHIFT(352973) | 1 | $44.99 | In stock | |
| 64 | 3235542 | RAIL-SHIFT SHAFT(353622) | 1 | $34.99 | In stock | |
| 65 | 3235983 | CAM, PARK | 1 | $189.99 | Out of stock Est. Aug 13, 2026 | |
| 66 | 3236603 | SHAFT, REVERSE 53T | 1 | $264.99 | In stock | |
| 67 | 3236735 | ENGAGEMENT DOG, 6-FACE | 1 | $104.99 | In stock | |
| 68 | 3236604 | GEAR, IDLER 49T | 1 | $154.99 | Out of stock Est. Oct 19, 2026 | |
| 69 | 3236605 | GEAR, LOW 37T | 1 | $54.99 | In stock | |
| 70 | 3236606 | DRUM, SHIFT MACH | 1 | $174.99 | In stock | |
| 71 | 3236607 | SHIFT DOG, PARK | 1 | $124.99 | In stock | |
| 72 | 3236608 | GEAR, LOW 68T | 1 | $204.99 | In stock | |
| 73 | 3236610 | GEAR, OUTPUT 67T | 1 | $479.99 | In stock | |
| 74 | 3236758 | GEAR, REVERSE 56T | 1 | $154.99 | In stock | |
| 75 | 3236757 | GEAR, HIGH 44T | 1 | $104.99 | In stock | |
| 76 | 3235452 | SUBASSEMBLY, PAWL, DETENT, ROLLER | 1 | $44.99 | In stock | |
| 77 | 3236611 | SUBASSEMBLY, SHIFT FORK | 1 | $64.99 | In stock | |
| 78 | 3236612 | SUBASSEMBLY, SHIFT FORK | 1 | $69.99 | In stock | |
| 79 | 3236736 | SUBASSEMBLY, SHIFT COLLAR | 1 | $74.99 | In stock | |
| 80 | 3236733 | SUBASSY, ROGUE PTO | 1 | $999.99 | In stock | |
| 81 | 3236770 | SUBASSY, INPUT, 61T/39T/37T | 1 | $549.99 | In stock | |
| 82 | 3239506 | SUBASSEMBLY, ROGUE PTL | 1 | $949.99 | In stock | |
| 83 | 3235350 | BRACKET, WIRE HARNESS | 2 | Price TBD | Out of stock | |
| 84 | 3239507 | DEFLECTOR, OIL | 1 | $29.99 | In stock | |
| 85 | 4013908 | SENSOR-SPEED,TRANS | 1 | Price TBD | Out of stock | |
| 86 | 7662468 | SWITCH, ROTARY, 2 PIN RESISTIVE | 1 | $54.99 | Out of stock Est. Sep 29, 2026 | |
| 87 | 3234755 | PLUG, M18 X 1.5 | 2 | Price TBD | Out of stock | |
| 88 | 3236617 | SEAL, VITON DBL LIP, W/SHIELD AND FLANGE, 35X52X8 | 2 | $29.99 | Out of stock Est. Aug 25, 2026 | |
| 89 | 3510329 | SEAL, 35 X 80 X 8 | 1 | $19.99 | In stock | |
| 90 | 3233840 | O-RING, -113 VITON | 1 | $13.99 | In stock | |
| 91 | 3233836 | O-RING, -012 VITON | 1 | Price TBD | Out of stock | |
| 92 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock | |
| 93 | 3236615 | O-RING 2-153 | 1 | $11.99 | In stock | |
| 94 | 3236616 | SEAL, TRIPLE LIP VITON, 35 X 62 X 8 | 2 | Price TBD | Out of stock |
