Polaris•Schematic assembly

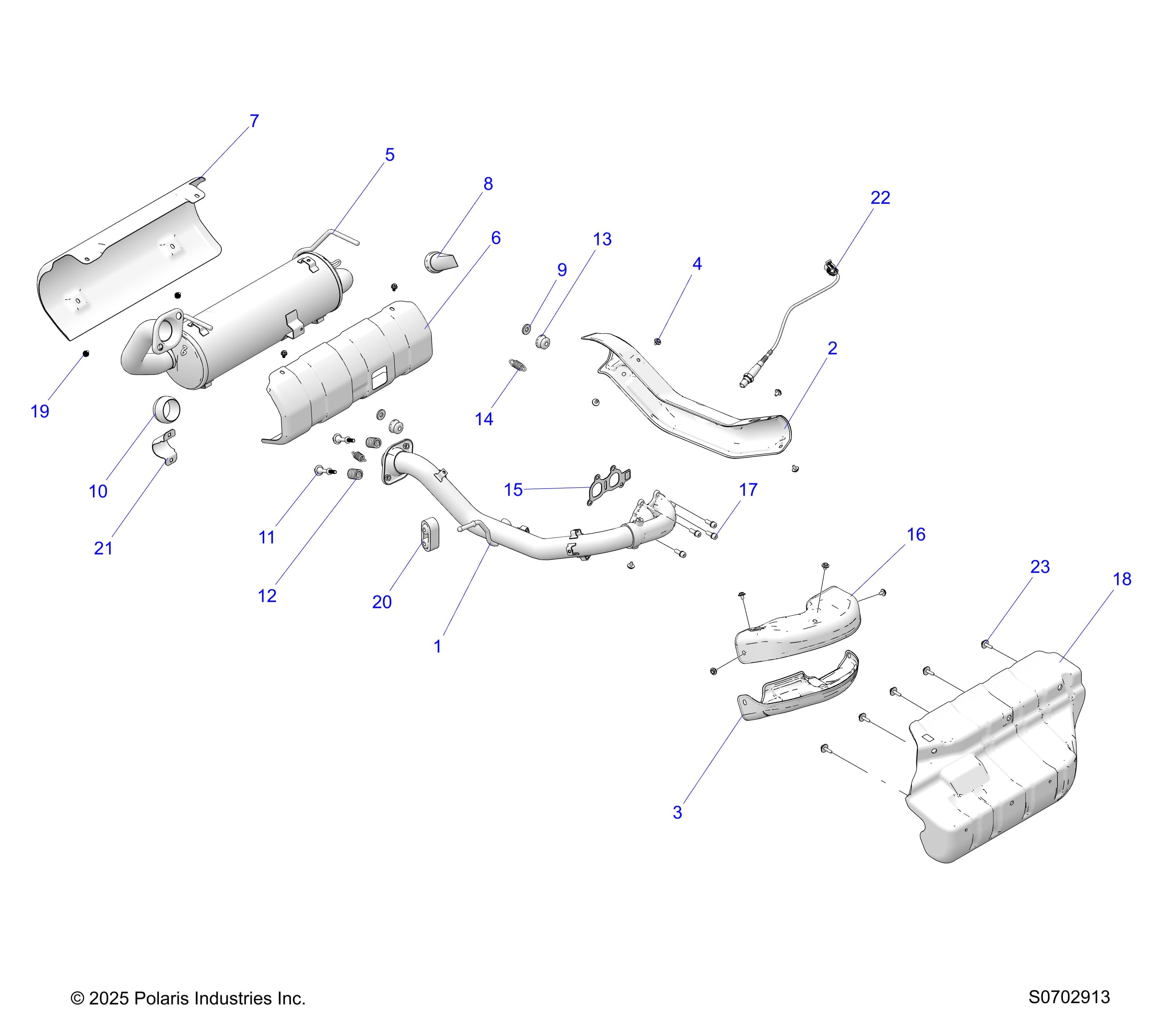

ENGINE, EXHAUST SYSTEM
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259491
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1263213 | ASM-HEADPIPE [INCLUDES 2-4] | 1 | $449.99 | Out of stock Est. Jul 13, 2026 | |
| 2 | 5266063 | SHIELD-HEAT,HEADPIPE,INNER | 1 | $69.99 | In stock | |
| 3 | 5266061 | SHIELD-HEAT,HEADPIPE,FRONT,LWR | 1 | $64.99 | In stock | |
| 4 | 7520291 | SCR-HHSEMS-M6X1.0X10 A286,LOCK | 9 | $8.99 | In stock | |
| 5 | 1263215 | ASM-SILENCER,RGR [INCLUDES 5-8] | 1 | $879.99 | In stock | |
| 6 | 5267898 | SHIELD-HEAT,SILENCER,INNER | 1 | $74.99 | In stock | |
| 7 | 5267899 | SHIELD-HEAT,SILENCER,OUTER | 1 | $79.99 | In stock | |
| 8 | 1263341 | WELD-SPARK ARRESTOR | 1 | $64.99 | In stock | |
| 9 | 7555966 | WASHER-.406X1.00X.125,FL | 2 | $3.29 | In stock | |
| 10 | 3610248 | GASKET-DOUBLE SPHERICAL,2" | 1 | $44.99 | In stock | |
| 11 | 7520079 | STUD-SPHERICAL,EXHAUST | 2 | $16.99 | In stock | |
| 12 | 7044274 | SPRING, SPHERICAL, EXHAUST | 2 | $18.99 | In stock | |
| 13 | 5417363 | ISOLATOR-EXHAUST,HANGER,HD | 2 | $8.99 | In stock | |
| 14 | 7043727 | SPRING-EXHAUST S.S. SHOTPEENED | 2 | $5.99 | In stock | |
| 15 | 3610319 | GASKET-EXHAUST SEAL | 1 | $59.99 | In stock | |
| 16 | 5266060 | SHIELD-HEAT,HEADPIPE,FRONT,UPR | 1 | $64.99 | In stock | |
| 17 | 7518984 | SCR-HXFL-M5X0.8X12 4.8 ZPC NYL | 6 | $9.99 | In stock | |
| 18 | 5276883 | SHIELD-HEAT,CLOSEOFF | 1 | $89.99 | In stock | |
| 19 | 7521252 | SCR-HXFL-M6X1.0X10 8.8 | 7 | $4.99 | In stock | |
| 20 | 5438965 | MNT-ISOLATOR | 1 | $34.99 | In stock | |
| 21 | 5276127 | SHIELD-BUSHING,SWAY BAR | 1 | $7.99 | Out of stock Est. Aug 13, 2026 | |
| 22 | 4011853 | SENSOR-LAMBDA,LSF 4.2 | 1 | $144.99 | In stock | |
| 23 | 7521064 | SCR-HXFL-M6X1.0X25 8.8 ZPB SEM | 5 | $3.99 | In stock |
