Polaris•Schematic assembly

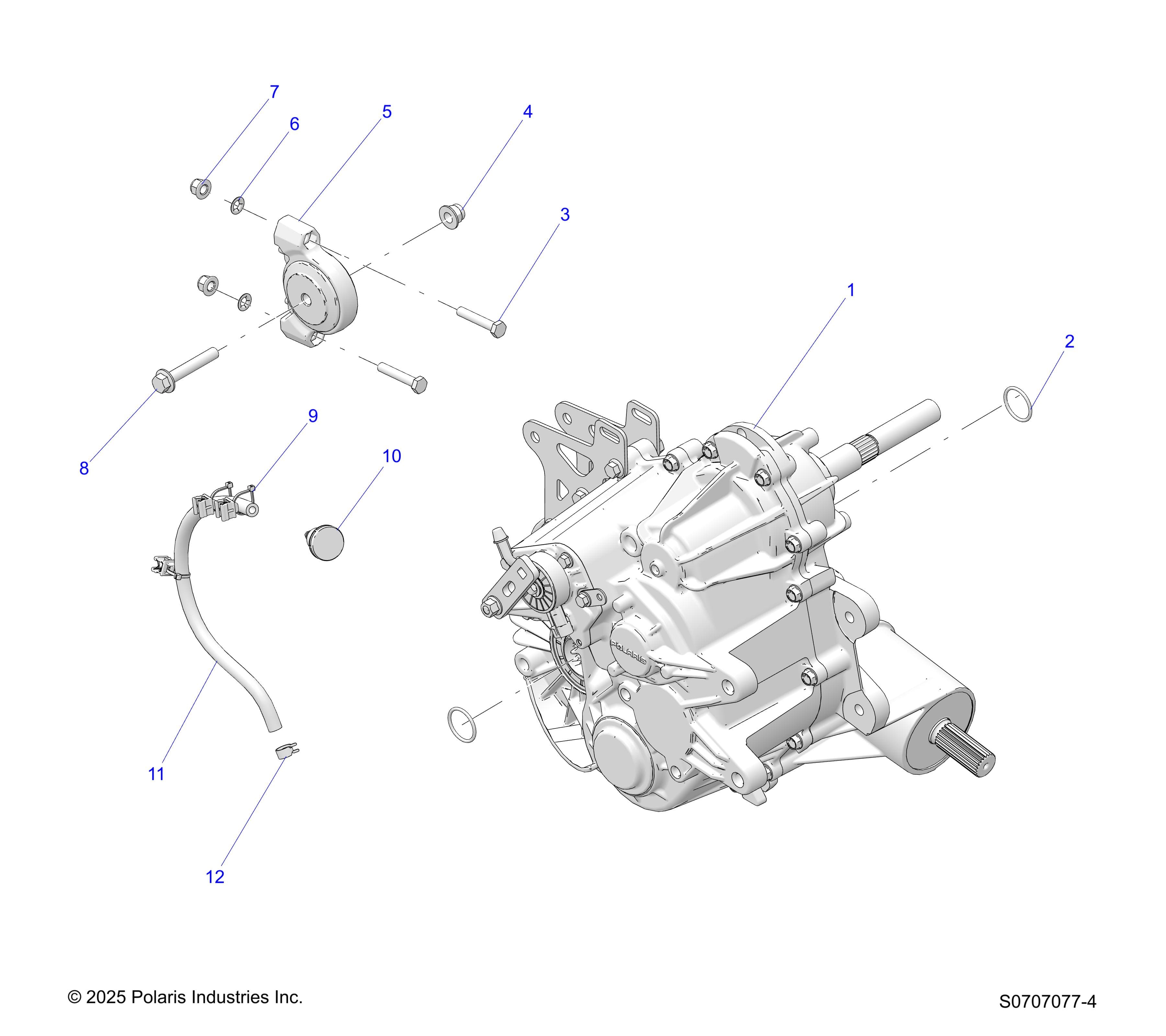

DRIVE TRAIN, MAIN GEARCASE MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259464
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337234 | ASM-GEARCASE,RGR 1000 | 1 | $3,799.99 | In stock | |
| 2 | 5143247 | O-RING,28.24X2.62,VITON,60A | 2 | $5.99 | In stock | |
| 3 | 7519097 | SCREW-HH M8X1.25X45 8.8 ZOD | 2 | $1.99 | In stock | |
| 4 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 1 | $1.99 | In stock | |
| 5 | 1332955 | MOUNT-ISOLATOR,DRIVELINE | 1 | $89.99 | In stock | |
| 6 | 7547030 | NUT-5/16-PAL-Y | 2 | $5.99 | In stock | |
| 7 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 1 | $4.99 | In stock | |
| 8 | 7518563 | SCR-HXFL-M10X1.25X60 8.8 ZOD | 1 | $3.99 | In stock | |
| 9 | 7081824 | CLIP-EDGE,DIA5-50MM,OUT-SER | 2 | $15.99 | In stock | |
| 10 | 7052758 | VENT-GEARCASE,8MM | 1 | $17.99 | In stock | |
| 11 | 8450040-35 | FUEL LINE-35 CENTIMETERS | 1 | $10.99 | In stock | |
| 12 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 1 | $4.99 | In stock |
