Schematic diagram
Polaris•Schematic assembly
DRIVE TRAIN, MAIN GEARCASE INTERNALS
Product Description

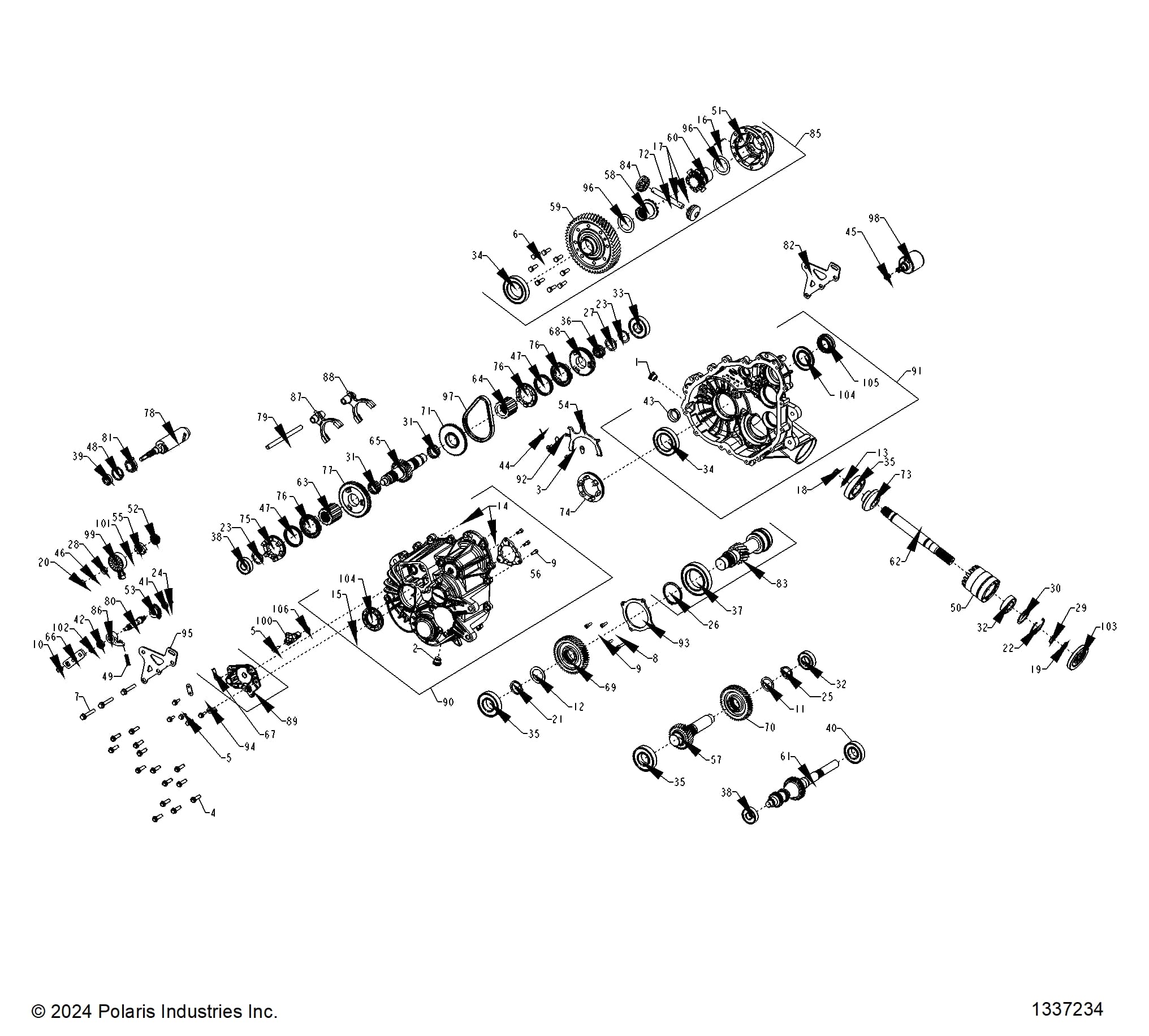

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259463
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1337234 | ASM-GEARCASE,RGR 1000 [INCLUDES ALL] | 1 | $3,799.99 | In stock | |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 | $34.99 | In stock | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | $39.99 | Out of stock Est. Jul 31, 2026 | |
| 3 | 3234309 | SCREW, 6-LOBE, PAN HD M6 X 1 X 16 | 2 | $8.99 | In stock | |
| 4 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 14 | $11.99 | In stock | |
| 5 | 3235206 | SCREW, HEX FLANGE HEAD, M6 X 1 X 20 | 6 | $8.99 | In stock | |
| 6 | 3236169 | SCREW, CAP HH M8 X 1.25 X 25 | 8 | $11.99 | In stock | |
| 7 | 3235207 | SCREW, HEX FLANGE M8 X 50 | 3 | $12.99 | In stock | |
| 8 | 3235208 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 | 1 | $13.99 | In stock | |
| 9 | 3235332 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 | 6 | $4.99 | In stock | |
| 10 | 3235210 | NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 | 1 | $9.99 | In stock | |
| 11 | 3235211 | WASHER-32.3X42X1.5(115288) | 3 | $12.99 | In stock | |
| 12 | 3235212 | WASHER-35.6X57X1.5(115289) | 1 | $16.99 | In stock | |
| 13 | 3236410 | WASHER, 22.5 X 30 X 1.5 | 1 | $9.99 | In stock | |
| 14 | 3234330 | PIN, DOWEL 6 X 20 | 2 | $8.99 | In stock | |
| 15 | 7043746 | PIN, SPRING, SLOTTED 6 X 12 | 1 | $9.99 | In stock | |
| 16 | 3236286 | PIN, DOWEL 3 X 40 | 1 | $16.99 | In stock | |
| 17 | 3236295 | PIN, DOWEL 8 X 10 | 2 | $13.99 | Out of stock Est. Aug 6, 2026 | |
| 18 | 7710434 | RING, RETAINING BASIC EXTERNAL | 1 | $4.99 | In stock | |
| 19 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | $6.99 | In stock | |
| 20 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | $12.99 | Out of stock Est. Aug 6, 2026 | |
| 21 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 1 | $7.99 | In stock | |
| 22 | 3234269 | RING,RETAINING BASIC,INTERNAL 2.047 | 1 | $11.99 | In stock | |
| 23 | 3234205 | RING, RETAINING, | 2 | $13.99 | In stock | |
| 24 | 3239594 | RING, RETAINING, BASIC EXTERNAL SH-39 | 1 | $9.99 | Out of stock Est. Oct 5, 2026 | |
| 25 | 3235214 | RING-RETAIN,EXT,MSR-32(130296) | 3 | $11.99 | Out of stock Est. Jul 28, 2026 | |
| 26 | 3235216 | RING-RETAIN,VSH-237(130298) | 1 | $12.99 | In stock | |
| 27 | 3233378 | WASHER,THRUST,1.187 X 1.500 X .0600 | 2 | $11.99 | In stock | |
| 28 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | $12.99 | In stock | |
| 29 | 3234272 | SHIM, 1.180 OD X 0.995 ID | 1 | $44.99 | Out of stock Est. Sep 17, 2026 | |
| 30 | 3234273 | SHIM, 2.040 OD X 1.63 ID | 1 | $16.99 | In stock | |
| 31 | 3233014 | BEARING, NEEDLE | 2 | $54.99 | In stock | |
| 32 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 2 | $39.99 | In stock | |
| 33 | 3233020 | BEARING | 1 | $59.99 | In stock | |
| 34 | 3233268 | BEARING-BALL 6010 C3 50 X 80 X 10 | 2 | $64.99 | In stock | |
| 35 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 3 | $59.99 | In stock | |
| 36 | 3233384 | BEARING-NEEDLE,30X35X13-CAGED | 1 | $39.99 | In stock | |
| 37 | 3235218 | BEARING, BALL, 6012 C3 60 X 95 X 18 | 1 | $74.99 | In stock | |
| 38 | 3234652 | BEARING, BALL 6303, 17 X 47 X 14 | 2 | $19.99 | In stock | |
| 39 | 3235807 | BEARING, BALL 6903 17 X 30 X 7 | 1 | $44.99 | Out of stock Est. Sep 4, 2026 | |
| 40 | 3235496 | BEARING, BALL 6206RSH2 STD 30 X 62 X 16 | 1 | $39.99 | In stock | |
| 41 | 3239595 | BEARING, BALL 6800, 10 X 19 X 5 | 1 | $14.99 | In stock | |
| 42 | 3239596 | BEARING, BALL 6802, 15 X 24 X 5 | 1 | $14.99 | In stock | |
| 43 | 3239597 | BEARING, PLAIN FLNGD, 28 X 32 X 13.00 | 1 | $19.99 | In stock | |
| 44 | 3234276 | SPRING, TORSION, RETURN | 1 | $10.99 | In stock | |
| 45 | 3234277 | SPRING,COMPRSSN.54ODX.44IDX.05 | 1 | $16.99 | In stock | |
| 46 | 3235327 | WASHER-SPRING,210393 | 1 | $11.99 | In stock | |
| 47 | 3239598 | SPRING, WAVE, 53.00 ID X 61.00 OD | 2 | $16.99 | In stock | |
| 48 | 3239599 | SPRING, TORSION | 1 | $29.99 | In stock | |
| 49 | 3239600 | SPRING, COMPRESSION, DETENT | 1 | $16.99 | In stock | |
| 50 | 3234278 | TUBE, SNORKEL MACHINED | 1 | $124.99 | In stock | |
| 51 | 3236287 | CARRIER, DIFFERENTIAL MACH | 1 | $209.99 | In stock | |
| 52 | 3233839 | GEAR, SECTOR, 16T | 1 | $44.99 | In stock | |
| 53 | 3233832 | GEAR-SECTOR,31T | 1 | $44.99 | In stock | |
| 54 | 3235455 | FORK, PIVOT SHIFT, REAR DIFF | 1 | $114.99 | In stock | |
| 55 | 3239602 | STAR, DETENT | 1 | $44.99 | In stock | |
| 56 | 3239815 | PLATE, PARK 6-FACE | 1 | $49.99 | In stock | |
| 57 | 3235223 | SHAFT-IDLER,29T(285803) | 1 | $134.99 | In stock | |
| 58 | 3236290 | GEAR, 14T OUTPUT, MACH | 1 | $204.99 | In stock | |
| 59 | 3236291 | GEAR, 53T OUTPUT | 1 | $324.99 | In stock | |
| 60 | 3236289 | GEAR, 14T OUTPUT DISCONNECT, MACH | 1 | $209.99 | In stock | |
| 61 | 3236348 | SHAFT, INPUT, HELICAL | 1 | $429.99 | In stock | |
| 62 | 3236438 | SHAFT, FRONT OUTPUT | 1 | $164.99 | Out of stock Est. Jul 29, 2026 | |
| 63 | 3239675 | SLEEVE, PARK | 1 | $59.99 | In stock | |
| 64 | 3239676 | SLEEVE, HIGH | 1 | $29.99 | In stock | |
| 65 | 3239622 | SHAFT, REVERSE 27T | 1 | $314.99 | In stock | |
| 66 | 3239607 | BELLCRANK, ZEUS, RC SHIFTING | 1 | $39.99 | In stock | |
| 67 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | $12.99 | In stock | |
| 68 | 3239640 | GEAR, 53T | 1 | $104.99 | In stock | |
| 69 | 3235236 | GEAR-46T,STAGE 3(352872) | 1 | $134.99 | In stock | |
| 70 | 3235381 | GEAR, 46T, STAGE 2 | 1 | $164.99 | In stock | |
| 71 | 3239641 | SPROCKET, 48T 6-FACE | 1 | $99.99 | In stock | |
| 72 | 3236292 | PIN, DIFFERENTIAL | 1 | $129.99 | In stock | |
| 73 | 3236412 | GEAR, 13T SNORKEL | 1 | $179.99 | In stock | |
| 74 | 3236293 | DOG, ENGAGEMENT | 1 | $169.99 | In stock | |
| 75 | 3239608 | SHIFT DOG, PARK | 1 | $179.99 | In stock | |
| 76 | 3239609 | DOG, SHIFT | 0 | $179.99 | Out of stock Est. Sep 10, 2026 | |
| 77 | 3239610 | GEAR, LOW 67T | 1 | $144.99 | In stock | |
| 78 | 3239611 | DRUM, SHIFT MACH | 1 | $344.99 | In stock | |
| 79 | 3239612 | RAIL, SHIFT SHAFT | 1 | $29.99 | In stock | |
| 80 | 3239613 | SHAFT, SHIFT | 0 | $44.99 | Out of stock Est. Aug 11, 2026 | |
| 81 | 3239614 | CAM, PARK | 0 | $189.99 | In stock | |
| 82 | 3235399 | WELDMENT REAR MOUNT BRACKET63 | 1 | $59.99 | In stock | |
| 83 | 3235336 | SUBASM.,SHAFT [INCLUDES BEARING, RET. RING] | 1 | $469.99 | In stock | |
| 84 | 3236288 | SUBASSEMBLY, PINION GEAR | 2 | $169.99 | Out of stock Est. Aug 13, 2026 | |
| 85 | 3236285 | SUBASSEMBLY, DIFFERENTIAL | 1 | $479.99 | In stock | |
| 86 | 3239619 | SUBASSEMBLY,ROLLER PAWL | 1 | $44.99 | In stock | |
| 87 | 3239620 | SUBASSEMBLY, SHIFT FORK | 1 | $89.99 | In stock | |
| 88 | 3239621 | SUBASSEMBLY, SHIFT FORK | 1 | $89.99 | In stock | |
| 89 | 3239623 | SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARWARE] | 1 | $139.99 | In stock | |
| 90 | 3239625 | SUBASSEMBLY, RH COVER [INCLUDES ALL HARWARE] | 1 | $549.99 | In stock | |
| 91 | 3239624 | SUBASSEMBLY, LH CASE [INCLUDES ALL HARWARE] | 1 | $524.99 | In stock | |
| 92 | 3234934 | RETAINER-FORK | 2 | $12.99 | In stock | |
| 93 | 3235241 | COVER-BEARING,CNTR DR. [CENTER DRIVE] | 1 | $59.99 | Out of stock Est. Aug 17, 2026 | |
| 94 | 3235350 | BRACKET, WIRE HARNESS | 2 | $10.99 | In stock | |
| 95 | 3235398 | BRACKET, MOUNT, REAR | 1 | $84.99 | In stock | |
| 96 | 3236294 | WASHER, THRUST, 40.83 X 56.25 X 0.38 | 2 | $13.99 | In stock | |
| 97 | 3234737 | CHAIN,SIL 101,.25P X .40W X58L | 1 | $209.99 | In stock | |
| 98 | 3235478 | SOLENOID | 1 | $364.99 | In stock | |
| 99 | 7662299 | SWITCH, ROTARY , 2 PIN RESISTIVE | 1 | $139.99 | In stock | |
| 100 | 4082135 | SENSOR-SPEED [INCLUDES 106] | 1 | $134.99 | In stock | |
| 101 | 3233836 | O-RING, -012 VITON | 1 | $8.49 | Out of stock Est. Jul 29, 2026 | |
| 102 | 3233828 | O-RING, -014 VITON | 1 | $8.49 | Out of stock Est. Aug 28, 2026 | |
| 103 | 3234113 | SEAL, TRIPLE LIP VITON 25 X 80 X 10 | 1 | $44.99 | In stock | |
| 104 | 3235052 | SEAL, TRIPLE LIP, VITON HELIX 40X70X7 | 2 | $39.99 | In stock | |
| 105 | 3235495 | SEAL, TRIPLE LIP, VITON HELIX 30 X 47 | 1 | $49.99 | In stock | |
| 106 | 3236279 | O-RING, -016 VITON | 1 | $6.99 | Out of stock Est. Aug 19, 2026 |
