Schematic diagram
Polaris•Schematic assembly

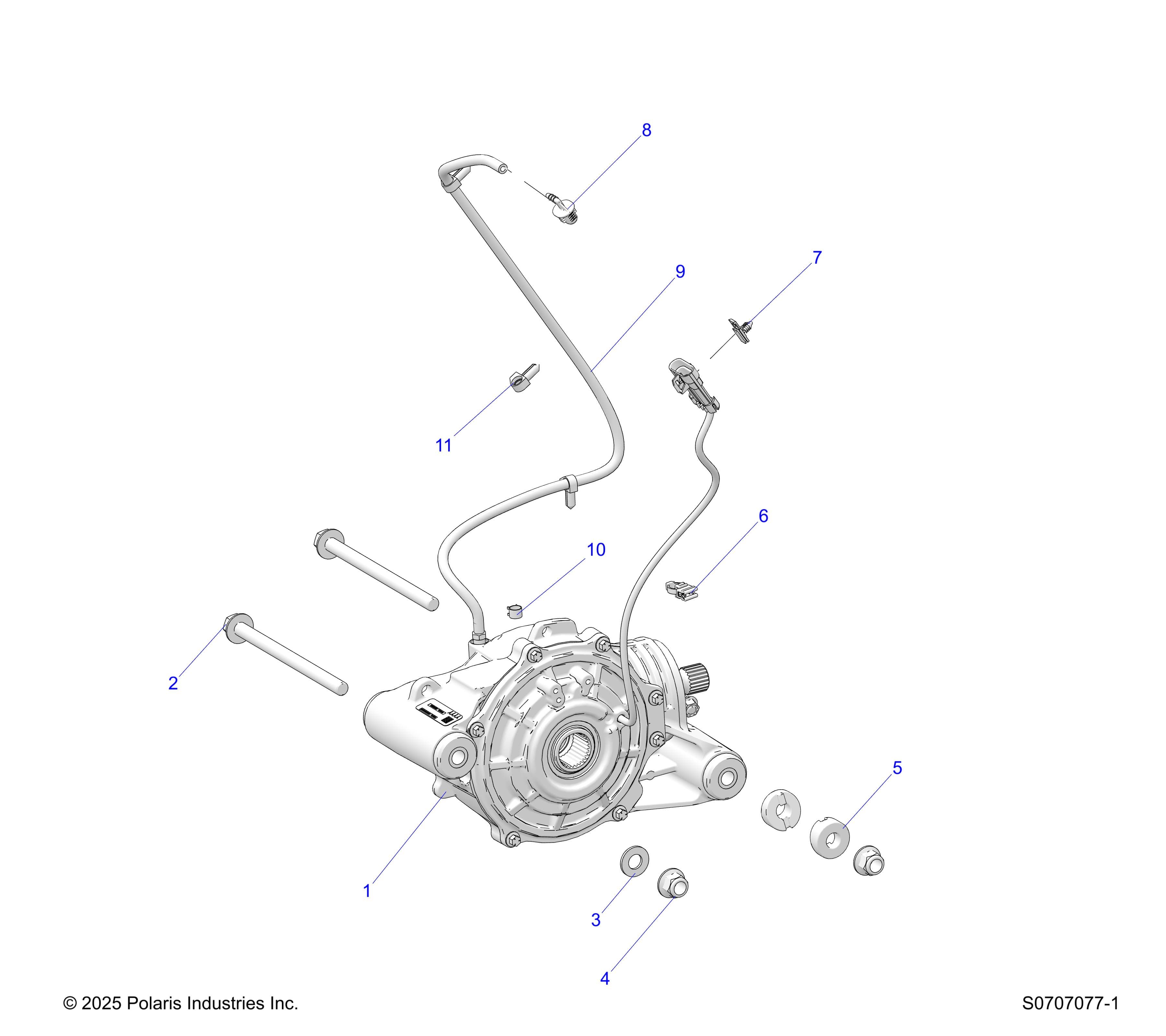

DRIVE TRAIN, FRONT GEARCASE MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CABBED Assembly ID: 259459
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CABBED
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1336960 | ASM-GRCASE,FRT,ISO,3.23,ZN | 1 | $2,099.99 | In stock | |
| 2 | 7527892 | SCR-HXFL-M12X1.5X170X40 10.9 Z | 2 | $9.99 | In stock | |
| 3 | 7556333 | WASHER-FLAT, .531X1.063X.095-Y | 1 | $4.99 | In stock | |
| 4 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 2 | $5.99 | In stock | |
| 5 | 5639729 | ANCHOR-WEDGE LOCK | 2 | $29.99 | In stock | |
| 6 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 1 | $5.99 | In stock | |
| 7 | 7082134 | CLIP-FIR,HOLE6.35MM | 1 | $4.99 | In stock | |
| 8 | 5454069 | FITTING-VENT LINE,90 | 1 | $11.99 | In stock | |
| 9 | 8450153-76 | LINE-BOOST,3/16 ID,76CM | 1 | $9.99 | In stock | |
| 10 | 7080307 | CLAMP-HOSE, (LARGE GREEN) | 1 | $0.99 | In stock | |
| 11 | 7670102 | CLIP-SILENCER BOX-C,98 INDY | 3 | $2.99 | In stock |
