Schematic diagram

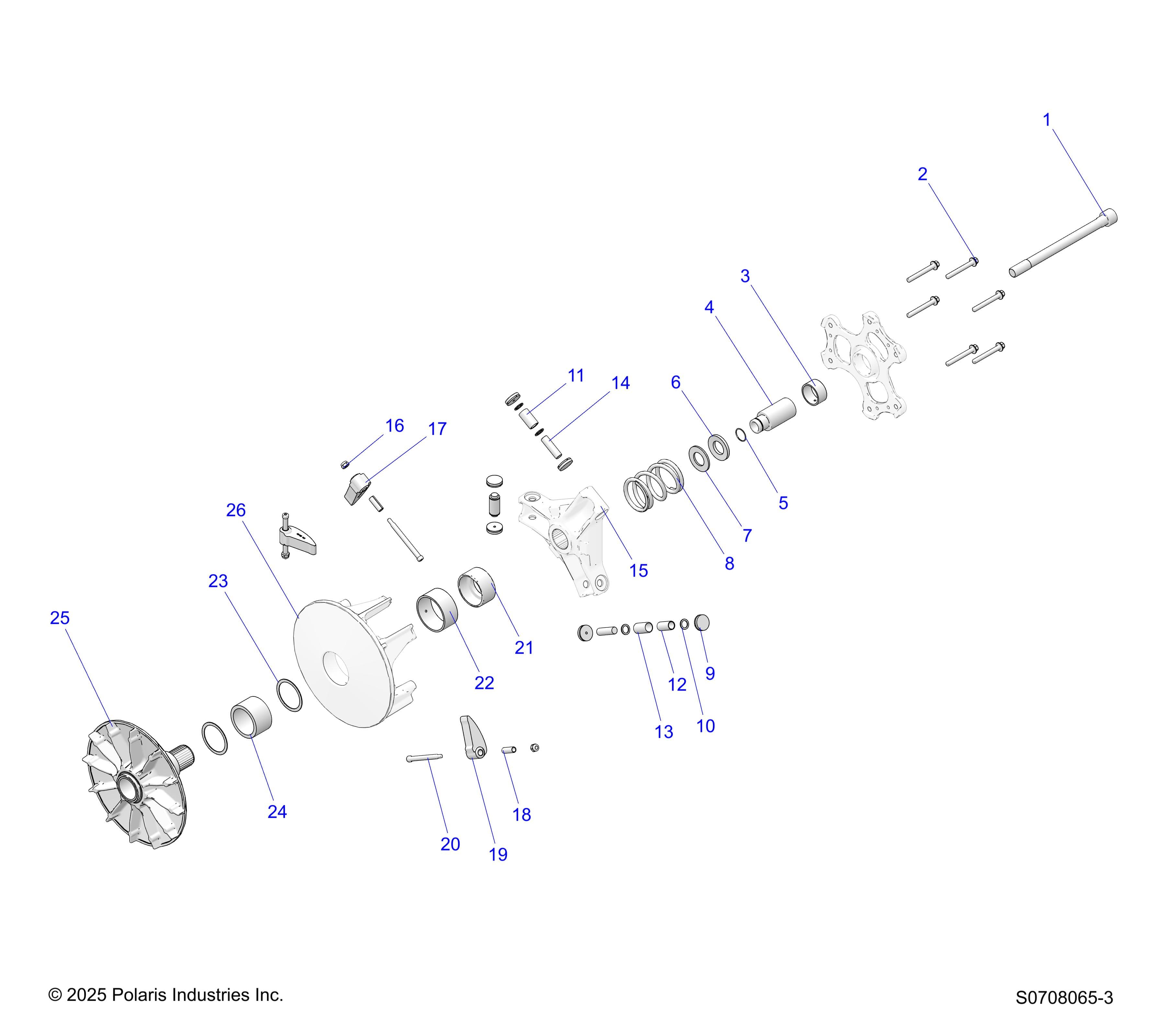

Polaris•Schematic assembly
DRIVE TRAIN, CLUTCH PRIMARY
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 259432
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1323801 | ASM-DRV CLTCH,BSC,P190XNEBS | 1 | $799.99 | In stock | |
| 1 | 7520526 | SCR-SH-M14X1.5X180 10.9 SPC | 1 | $44.99 | In stock | |
| 2 | 7517932 | SCR-M6X1.0X50.0 HX/FL-Y/D | 6 | $4.99 | In stock | |
| 3 | 3515173 | BUSHING-1.13X1.28X0.63,MU | 1 | $7.99 | In stock | |
| 4 | 5143553 | POST-CLUTCH,OUTER,O-RING | 1 | $39.99 | In stock | |
| 5 | 5418306 | O-RING 1.0X17.5MM,90A | 1 | $2.99 | In stock | |
| 6 | 7557018 | WSHR-BELLE,21X37.5X3.8,SPC | 1 | $12.99 | In stock | |
| 7 | 7557200 | WSHR-20.5X38.0X2.27 P&O | 1 | $3.99 | In stock | |
| 8 | 7045195 | SPRING-CLUTCH,99-277 | 1 | $59.99 | In stock | |
| 9 | 5457274 | BUTTON-CLUTCH,22MM,SCP | 6 | $9.99 | In stock | |
| 10 | 5453844 | WASHER-CLUTCH,SPIDER ROLLER | 6 | $1.99 | Out of stock Est. Jul 21, 2026 | |
| 11 | 1323795 | ASM-SPIDER ROLLER,P90X,25MM [INCLUDES 12 & 13] | 3 | $19.99 | In stock | |
| 12 | 5457275 | BUSHING-10X12X25,MU | 3 | Price TBD | Out of stock | |
| 13 | 5143506 | ROLLER-SPIDER,12X14.3X25 | 3 | Price TBD | Out of stock | |
| 14 | 5140978 | PIN-SPIDER | 3 | $12.99 | In stock | |
| 15 | 1323794 | ASM-SPIDER,22MM,P90X,HD [INCLUDES 9-15] | 1 | $129.99 | In stock | |
| 16 | 7541906 | NUT-10-24-FLEX LOC-Z | 3 | $3.99 | In stock | |
| 17 | 1323704 | ASM-WEIGHT-SHIFT,32-112,HC [INCLUDES 19 & 20] | 3 | $54.99 | In stock | |
| 18 | 5453843 | BUSHING-WEIGHT,1/4X7/8,DU | 3 | $7.99 | In stock | |
| 19 | 5142233 | WEIGHT-SHIFT,32-112,HC | 3 | $39.99 | In stock | |
| 20 | 7520585 | BOLT-SHIFT WEIGHT,BUSHED | 3 | $6.99 | In stock | |
| 21 | 5143479 | SPACER-CLUTCH,P90X,QPQ | 1 | $34.99 | In stock | |
| 22 | 3515174 | BUSHING-50X55X25,MU | 1 | $15.99 | In stock | |
| 23 | 7557071 | WSHR-CLUTCH,40.5X49X0.8,SP-21 | 2 | $16.99 | In stock | |
| 24 | 3515077 | BEARING-NEEDLE,40X50X30 | 1 | $54.99 | Out of stock Est. Aug 6, 2026 | |
| 25 | 5142942 | ASM-SHEAVE,STAT,P190X 1000 | 1 | $164.99 | In stock | |
| 26 | ------- | ASM-SHEAVE,MOV,DRIVE,P190X,MU [INCLUDES SHEAVE & 22} | 1 | Price TBD | Out of stock |
