Schematic diagram
Polaris•Schematic assembly

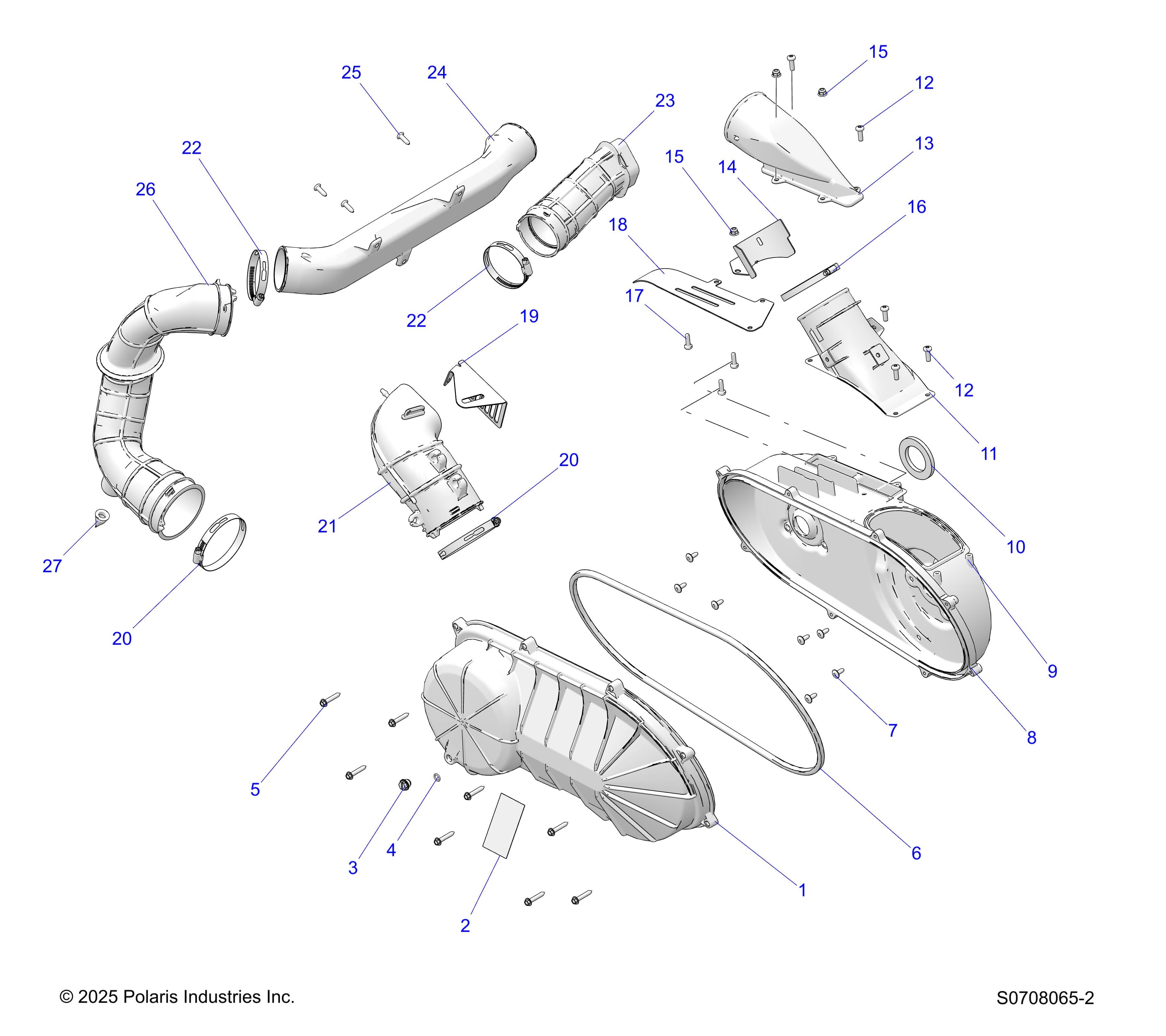

DRIVE TRAIN, CLUTCH COVER & DUCTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 259421
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2212016 | K-CVR,CLUTCH,OTR,RGR,1000 [INCLUDES COVER & 2-4 ] | 1 | $89.99 | Out of stock Est. Sep 7, 2026 | |
| 2 | 7177469 | DECAL-BELT,WARNING/CHECK | 1 | Price TBD | Out of stock | |
| 3 | 5434264 | PLUG-DRAIN,CLUTCH COVER | 1 | $6.99 | In stock | |
| 4 | 5410542 | O RING-.364X.504X.07 | 1 | Price TBD | Out of stock | |
| 5 | 7519330 | SCREW-NXFL-M6X35 ZOD HILO | 8 | $4.99 | In stock | |
| 6 | 5526449 | SEAL-OUTER CLUTCH COVER | 1 | $54.99 | In stock | |
| 7 | 7528114 | SCR-TXTH-M6X1.0X16 ZPB P80 | 7 | $1.49 | In stock | |
| 8 | 2638583 | ASM-COVER,CLUTCH,INNER [INCLUDES 8-18] | 1 | $214.99 | In stock | |
| 9 | 5454487-070 | COVER-CLUTCH,INNER,BLK | 1 | $189.99 | In stock | |
| 10 | 5813708 | SEAL-COVER,PTO | 1 | $29.99 | In stock | |
| 11 | 5455298 | DUCT-CLUTCH,AIR OUTLET | 1 | $54.99 | In stock | |
| 12 | 7519205 | SCR-#14X3/4 HI/LO-PH-PN TRX-M | 5 | $1.99 | In stock | |
| 13 | 5439086 | DUCT-CLUTCH,AIR INLET | 1 | $49.99 | In stock | |
| 14 | 2209225 | KIT-BRKT, OULET DUCT [INCLUDES 14-17] | 1 | $51.99 | In stock | |
| 14 | 1027063 | WELD-GUARD,CLUTCH | 1 | $29.99 | In stock | |
| 15 | 7547453 | NUT-HXFL-M6X1.0 8 ZB3 NYL | 3 | $4.99 | In stock | |
| 16 | 7081626 | CLAMP-WORM DRIVE,3.69 DIA | 1 | $9.99 | In stock | |
| 17 | 7518546 | SCR-M6X1.0X20MM,TX,PH,8.8-B | 3 | $3.99 | In stock | |
| 18 | 5256223 | BRKT-GUARD,CLUTCH COVER | 1 | $44.99 | In stock | |
| 19 | 5270401 | BRKT-SCREEN,BELT | 1 | $12.99 | In stock | |
| 20 | 7081969 | CLAMP-HOSE SLOTTED,92-100 DIA | 1 | $12.99 | In stock | |
| 21 | 5416788 | DUCT-CLUTCH,AIR OUTLET | 1 | $109.99 | In stock | |
| 22 | 7082509 | CLAMP-HOSE SLOTTED,60-80 DIA | 2 | $5.99 | In stock | |
| 23 | 5416775 | HOSE-CLUTCH,DUCT | 1 | $39.99 | In stock | |
| 24 | 5466345 | DUCT, INTAKE, CLUTCH | 1 | $64.99 | In stock | |
| 25 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 3 | $3.99 | In stock | |
| 26 | 5419024 | HOSE-INTAKE,CLUTCH | 1 | $69.99 | In stock | |
| 27 | 5414472 | PLUG-DRAIN | 1 | $6.99 | In stock |
