Polaris•Schematic assembly

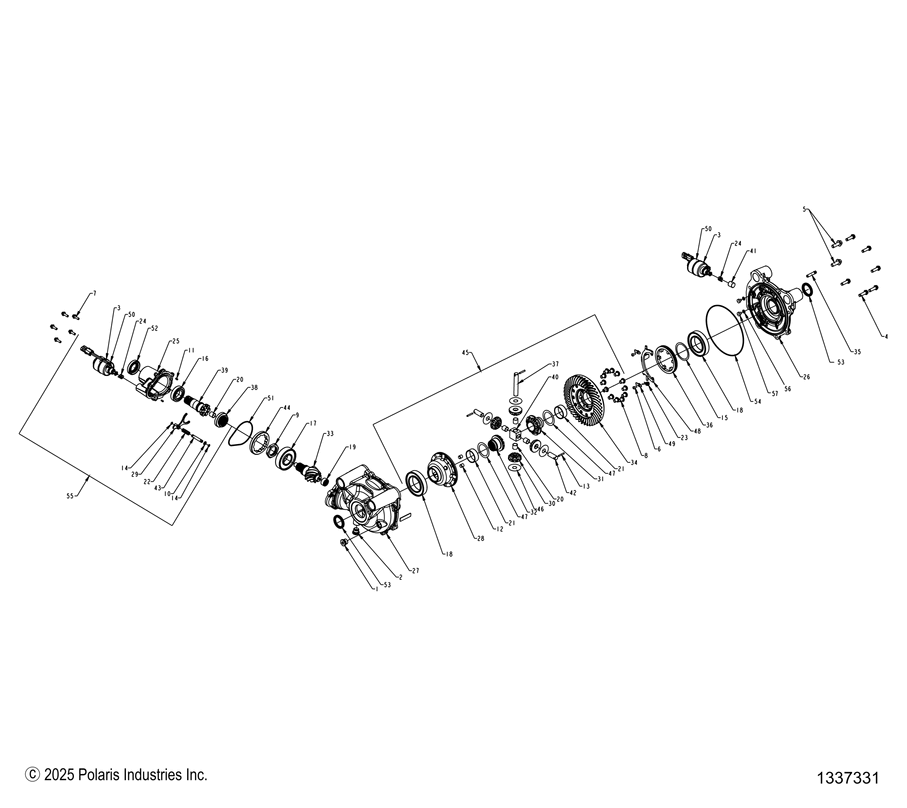

DRIVE TRAIN, GEARCASE INTERNALS, FRONT - Z26RRE2KAL (1337331)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R RACE Assembly ID: 255774
Vehicle Compatibility
- 2026 Polaris RZR PRO R RACE
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1337331 | ASM-GEARCASE,FRONT,RM,8K [INCL. ALL] | 1 | Price TBD | Out of stock | |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 | Price TBD | Out of stock | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 2 | Price TBD | Out of stock | |
| 4 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 6 | Price TBD | Out of stock | |
| 5 | 3234634 | SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30 | 2 | $16.99 | In stock | |
| 6 | 3239227 | SCREW-SOCK,BUTTON HD,M5X.8X1 | 2 | $12.99 | In stock | |
| 7 | 3239475 | SCREW, HEX FLANGE HEAD , M6 X 1 X 20 | 5 | $12.99 | In stock | |
| 8 | 3239568 | SCREW, 6-LOBE BUTTON HD M10 X 1.5 X 13 | 12 | $24.99 | In stock | |
| 9 | 3239229 | NUT, HEX PINION BEARING , M35 X 1.5-6H X 8.00 | 1 | $29.99 | In stock | |
| 10 | 3239567 | WASHER, 8.15 X 12.00 X 1.00 | 1 | $24.99 | In stock | |
| 11 | 3235715 | PIN, DOWEL, M4X8 | 2 | $3.99 | In stock | |
| 12 | 3239230 | PIN, DOWEL , 10MM X 14MM | 2 | $29.99 | In stock | |
| 13 | 3239325 | PIN, DOWEL , .1562 X 1 | 3 | $12.99 | In stock | |
| 14 | 3239569 | RING, RETAINING EXT CG-31SJ | 2 | $24.99 | In stock | |
| 15 | 3239232 | SHIM, 66.30 X 55.50 | 1 | $289.99 | In stock | |
| 16 | 3239460 | BEARING, BALL , 6006 30 X 55 X 13 | 1 | $19.99 | In stock | |
| 17 | 3235099 | BEARING, BALL | 1 | $39.99 | Out of stock Est. Aug 10, 2026 | |
| 18 | 3239233 | BEARING, BALL , 55 X 90 X 18 | 2 | $64.99 | In stock | |
| 19 | 3239570 | BEARING, NEEDLE .5625 X .750 X .500 | 1 | $59.99 | In stock | |
| 20 | 3239443 | BEARING, PLAIN , 14 X 16 X 15 | 5 | $24.99 | Out of stock Est. Aug 10, 2026 | |
| 21 | 3239235 | BEARING, PLAIN , 1.625 X 1.781 X .685 | 2 | $54.99 | In stock | |
| 22 | 3239461 | SPRING, COMPRESSION , 10.80 OD X 9.02 ID X 0.89 WIRE | 1 | $154.99 | In stock | |
| 23 | 3239411 | SPRING, TORSION , RETURN | 1 | $154.99 | In stock | |
| 24 | 3239412 | SPRING, COMPRESSION , .54 OD X.44 ID X.050 WIRE | 2 | $14.99 | In stock | |
| 25 | 3239571 | HOUSING, DISCONNECT MACH | 1 | $209.99 | In stock | |
| 26 | 3239572 | COVER, FRONT DIFF MACH | 1 | $329.99 | In stock | |
| 27 | 3239573 | CASE, FRONT MAIN MACH | 1 | $409.99 | In stock | |
| 28 | 3239574 | CARRIER, DIFFERENTIAL MACH | 1 | $179.99 | In stock | |
| 29 | 3239575 | FORK, DISCONNECT SHIFT | 1 | $69.99 | In stock | |
| 30 | 3239438 | PINION, 10T BEVEL | 4 | $84.99 | In stock | |
| 31 | 3239243 | GEAR, OUTPUT , 14T MACH | 1 | $154.99 | Out of stock Est. Sep 3, 2026 | |
| 32 | 3239244 | GEAR, OUTPUT , 14T MACH | 1 | $154.99 | Out of stock Est. Aug 13, 2026 | |
| 33 | 3239576 | PINION, 10T SPIRAL BEVEL | 1 | $154.99 | In stock | |
| 34 | 3239577 | GEAR, RING 41T | 1 | $369.99 | In stock | |
| 35 | 3239296 | TUBE, VENT , 1/4" HOSE | 1 | $39.99 | In stock | |
| 36 | 3239248 | DOG, ENGAGEMENT | 1 | $104.99 | In stock | |
| 37 | 3239249 | PIN, DIFFERENTIAL | 1 | $64.99 | In stock | |
| 38 | 3239464 | COLLAR, SHIFT 25T | 1 | $124.99 | In stock | |
| 39 | 3239465 | SHAFT, DISCONNECT 25T | 1 | $109.99 | In stock | |
| 40 | 3239489 | COUPLER, PIN | 1 | $109.99 | In stock | |
| 41 | 3239415 | CUP | 1 | $54.99 | In stock | |
| 42 | 3239442 | PIN, DIFFERENTIAL | 2 | $54.99 | In stock | |
| 43 | 3239580 | RAIL, SHIFT SHAFT | 1 | $39.99 | In stock | |
| 44 | 3239578 | NUT, LOCK M85 X 2.0 LH | 1 | $54.99 | In stock | |
| 45 | 3239581 | SUBASSEMBLY, DIFFERENTIAL 4.10 RATIO, 4 SPIDER | 1 | $899.99 | In stock | |
| 46 | 3239253 | WASHER, THRUST , 14.25 X 43.25 X 0.38 | 4 | $12.99 | In stock | |
| 47 | 3239254 | WASHER, THRUST , 42.10 X 56.25 X 0.38 | 2 | $29.99 | In stock | |
| 48 | 3239417 | CONTROL ARM, SHIFT , FRONT DIFF | 1 | $74.99 | In stock | |
| 49 | 3239582 | STRAP, SHIFT FORK | 1 | $29.99 | In stock | |
| 50 | 3235478 | SOLENOID | 1 | Price TBD | Out of stock | |
| 51 | 3239583 | O-RING, 2-154 | 4 | $34.99 | In stock | |
| 52 | 3239468 | SEAL, TRIPLE LIP , 1.181 X 2.047 X 0.394 | 1 | $39.99 | In stock | |
| 53 | 3239328 | SEAL, OIL, 37 X 48 X 6 TG | 2 | $39.99 | Out of stock Est. Jul 28, 2026 | |
| 54 | 3239584 | O-RING, 2-168 | 1 | $49.99 | In stock | |
| 55 | 3239657 | SUBASSEMBLY, DISCONNECT TRITON 8K | 1 | $619.99 | In stock | |
| 56 | 3233583 | SHIM .450 X .265 | 2 | $34.99 | In stock | |
| 57 | 3233582 | THRUST BUTTON | 2 | $8.99 | In stock |
