Schematic diagram
Polaris•Schematic assembly

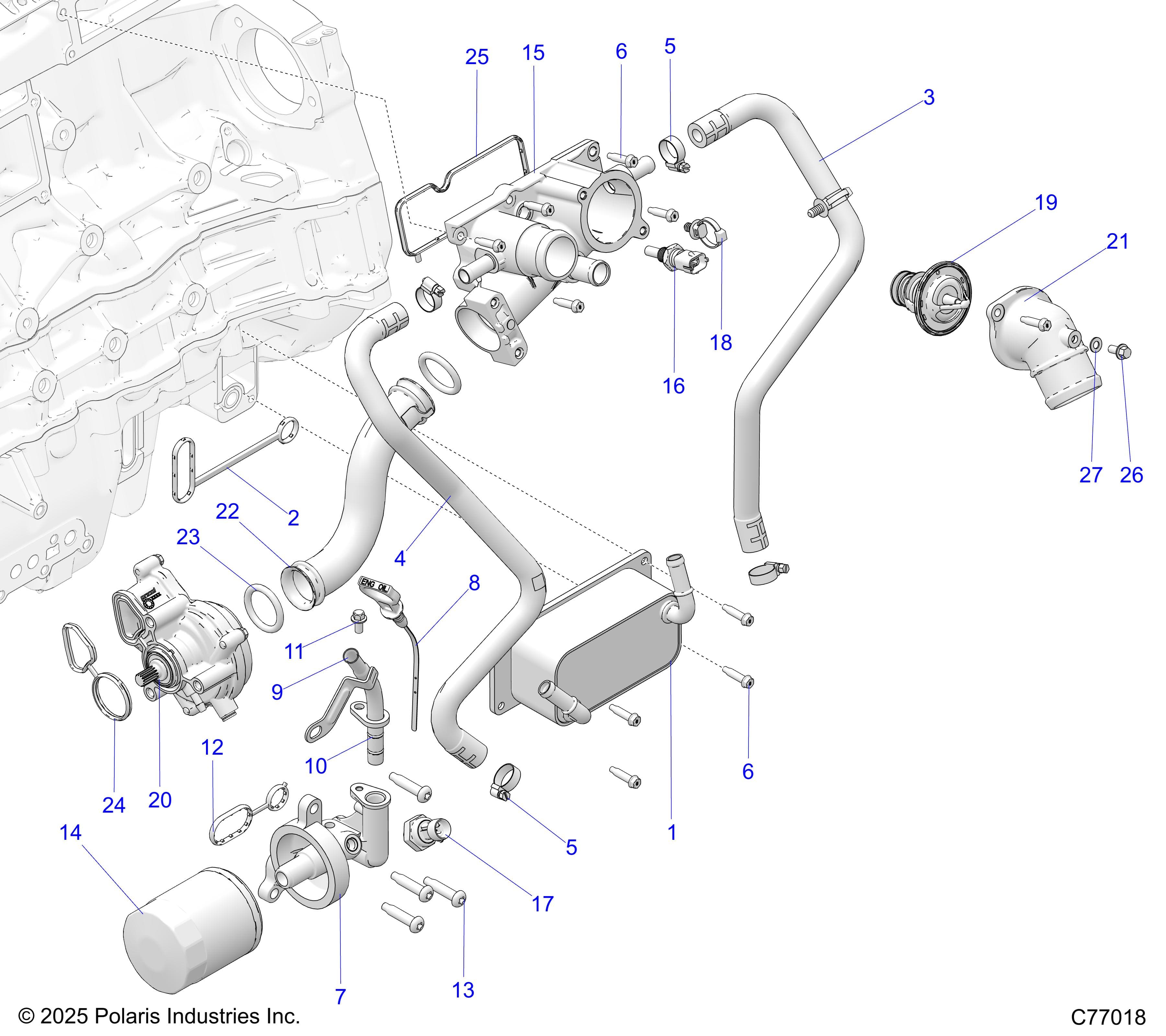

ENGINE, OIL FILTER, OIL COOLER AND THERMASTAT - Z26RRL2KAL (C77018)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R RACE H.O. Assembly ID: 255707
Vehicle Compatibility
- 2026 Polaris RZR PRO R RACE H.O.
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2521776 | COOLER-OIL | 1 | $119.99 | In stock | |
| 2 | 5814676 | GASKET-OIL COOLER | 1 | $9.99 | In stock | |
| 3 | 5417160 | HOSE-OIL COOLER,RETURN | 1 | $49.99 | In stock | |
| 4 | 5417161 | HOSE-OIL COOLER,SUPPLY | 1 | $49.99 | In stock | |
| 5 | 7081026 | CLAMP-HOSE,SPRING .81 [TO 12/01/2025] | 4 | Price TBD | Out of stock | |
| 5 | ------- | CLAMP-HOSE(WORM DR)0.5-0.88 [FROM 12/01/2025] | 4 | Price TBD | Out of stock | |
| 5 | 7081026 | CLAMP-HOSE,SPRING .81 [TO 12/01/2025] | 4 | Price TBD | Out of stock | |
| 5 | ------- | CLAMP-HOSE(WORM DR)0.5-0.88 [FROM 12/01/2025] | 4 | Price TBD | Out of stock | |
| 6 | 7520496 | SCR-HXFL-M6X1.0X20 8.8 DOG | 11 | $3.99 | In stock | |
| 7 | 5144938 | ADAPTER-FILTER,MACH | 1 | $34.99 | In stock | |
| 8 | 3024020 | DIPSTICK | 1 | $99.99 | In stock | |
| 9 | 3023415 | TUBE-DIPSTICK [INCLUDES 10] | 1 | $59.99 | In stock | |
| 10 | 5416422 | O-RING-.364X.504X.07,VITON | 2 | $3.99 | In stock | |
| 11 | 7517257 | SCREW-HXFL-M6X1.0X12 10.9 ZPC | 1 | Price TBD | Out of stock | |
| 12 | 5814721 | SEAL-FILTER ADAPTER [TO 1/12/2026] | 1 | $9.99 | In stock | |
| 12 | 5815858 | SEAL-FILTER ADAPTER [FROM 1/12/2026] | 1 | $9.99 | In stock | |
| 13 | 7520705 | SCR-BHCS-M8X1.25X30 DOG | 5 | $3.99 | In stock | |
| 14 | 2521728 | FILTER-OIL | 1 | $14.99 | In stock | |
| 15 | 3024366 | HOUSING-TSTAT | 1 | $104.99 | In stock | |
| 16 | 4010644 | SENSOR-THERMISTER | 1 | Price TBD | Out of stock | |
| 17 | 4018558 | SENSOR-OIL PRESSURE | 1 | $114.99 | In stock | |
| 18 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 19 | 7052766 | THERMOSTAT-78C | 1 | $74.99 | In stock | |
| 20 | 3023613 | ASM-PUMP,COOLANT,HIGHFLOW | 1 | $249.99 | In stock | |
| 21 | 3023629 | COVER, THERMOSTAT | 1 | $44.99 | In stock | |
| 22 | 3024146 | TUBE-TRANSFER | 1 | $69.99 | In stock | |
| 23 | 5815287 | O-RING | 2 | $29.99 | In stock | |
| 24 | 5814464 | GASKET, COOLANT PUMP | 1 | $8.99 | In stock | |
| 25 | 5814698 | GASKET, MODULE,COOLING | 1 | $12.99 | In stock | |
| 26 | 7520470 | SCR-M6X1.0X13,SL/HX/FL-Z,BLEED | 1 | Price TBD | Out of stock | |
| 27 | 7555998 | WASHER-FLAT,6.15X12X1MM-AL | 1 | Price TBD | Out of stock |
