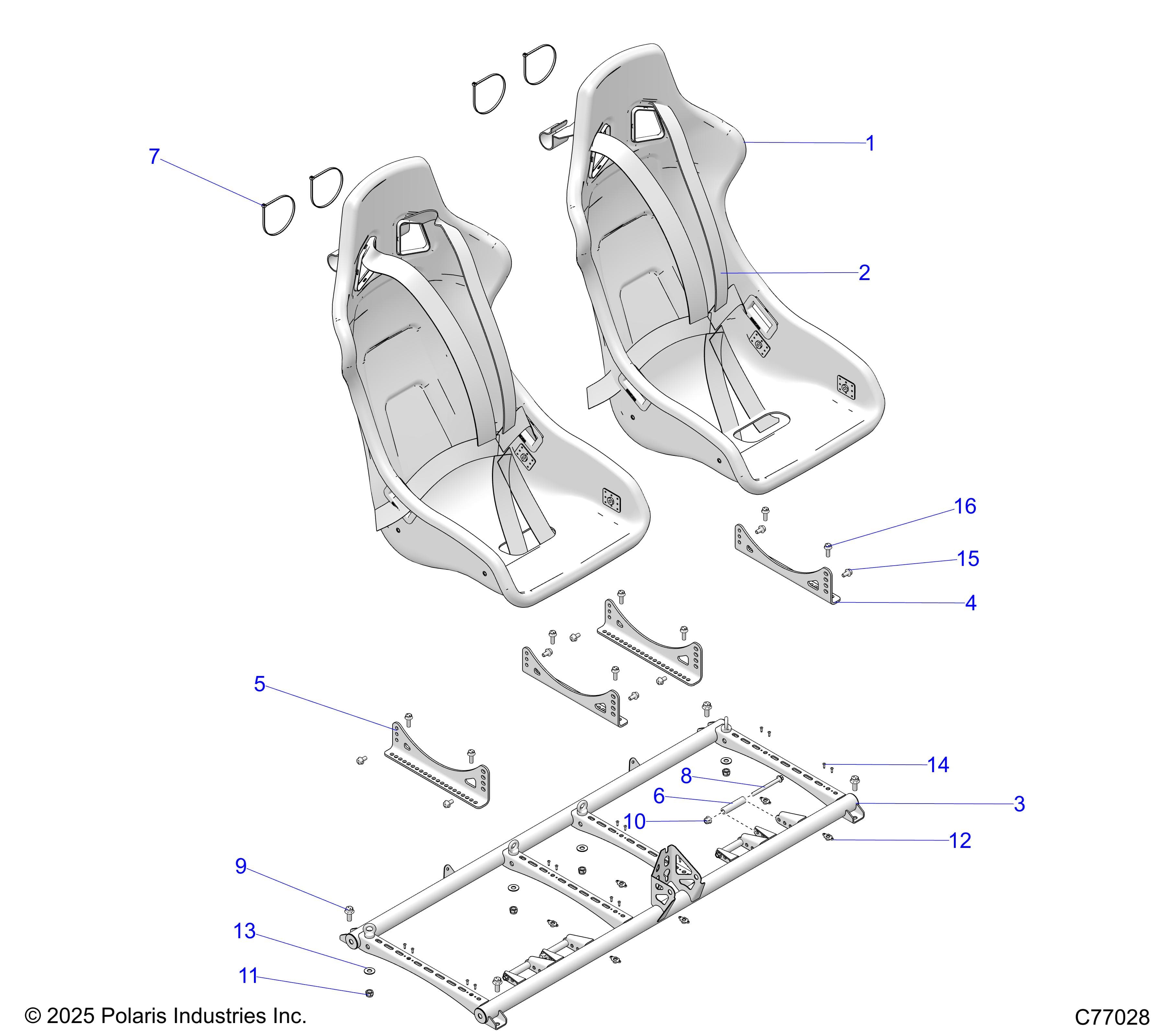

Schematic diagram
Polaris•Schematic assembly
BODY, SEATS - Z26RRL2KAL (C77028)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R RACE H.O. Assembly ID: 255592
Vehicle Compatibility
- 2026 Polaris RZR PRO R RACE H.O.
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2639166 | ASM-SEAT RACE | 2 | Price TBD | Out of stock | |
| 2 | 2639165 | ASM-SEAT BELT HARNESS RACE | 2 | Price TBD | Out of stock | |
| 3 | 1028845-458 | WELD-SEAT BASE,MBLK | 1 | Price TBD | Out of stock | |
| 4 | 5274908-458 | BRKT-SEAT MNT LH,MBLK | 2 | Price TBD | Out of stock | |
| 5 | 5274909-458 | BRKT-SEAT MNT RH,MBLK | 2 | Price TBD | Out of stock | |
| 6 | 5346508 | TUBE-SEAT BELT HARN SPACER | 4 | Price TBD | Out of stock | |
| 7 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 4 | Price TBD | Out of stock | |
| 8 | 7519154 | SCR-HXFLG,M8X1.25X90 | 4 | Price TBD | Out of stock | |
| 9 | 7521333-25 | SCR-HXFL-M10X1.5X25 10.9 ZFB | 4 | $1.99 | In stock | |
| 10 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | Price TBD | Out of stock | |
| 11 | 7547692 | NUT-7/16-20 HX NYL INSRT GR8 | 4 | $3.99 | In stock | |
| 12 | 7548160 | NUT-ANCHOR-M8X1.25 SPC | 8 | Price TBD | Out of stock | |
| 13 | 7556212 | WASHER-7/16 SAE,STF,THRU-HRD-Y | 4 | Price TBD | Out of stock | |
| 14 | 7662394 | RIVET-1/8X0.4 (.188-.250) AL | 16 | $1.49 | In stock | |
| 15 | 7521332-16 | SCR-HXFL-M8X1.25X16 10.9 ZFB | 8 | $3.99 | In stock | |
| 16 | 7521332-25 | SCR-HXFL-M8X1.25X25 10.9 ZFB | 8 | Price TBD | Out of stock |
