DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z26NMX99A4/B4/A6/B6 (1337513)
Product Description

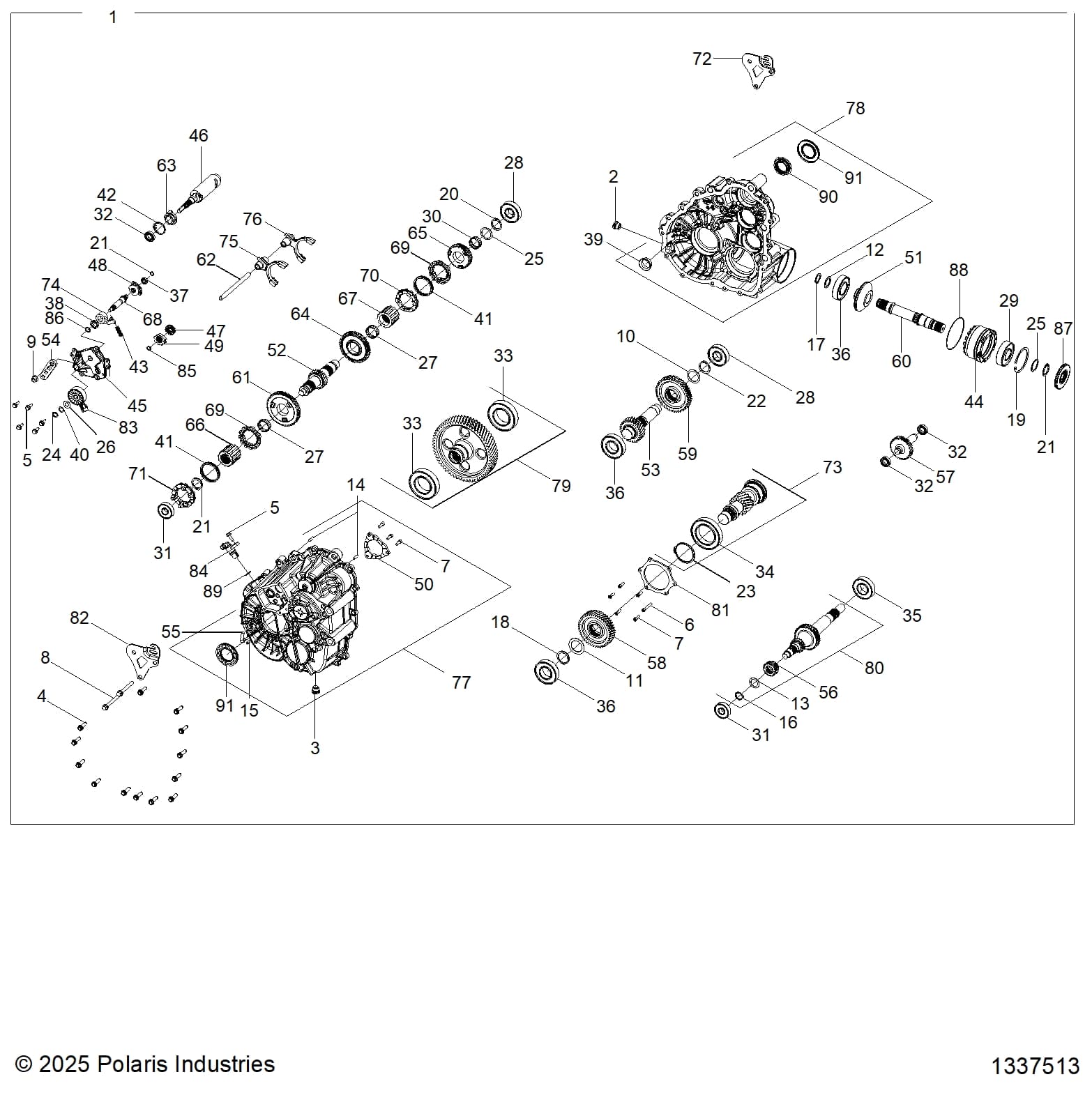

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP S 4 1000 SPORT Assembly ID: 255175
Vehicle Compatibility
- 2026 Polaris RZR XP S 4 1000 SPORT
Checkout Note
Please note that 72 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337513 | ASM-GEARCASE,MAIN,424511 | 1 | $4,864.99 | In stock | |
| 2 | 3234755 | PLUG, M18 X 1.5 | 1 | Price TBD | Out of stock | |
| 3 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 4 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 13 | Price TBD | Out of stock | |
| 5 | 3235206 | SCREW, HEX FLANGE HEAD, M6 X 1 X 20 | 6 | Price TBD | Out of stock | |
| 6 | 3235208 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 | 1 | Price TBD | Out of stock | |
| 7 | 3235332 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 | 8 | Price TBD | Out of stock | |
| 8 | 3235802 | SCREW HEX FLANGE M8 X 1.25 X 70 | 2 | $6.99 | In stock | |
| 9 | 3235210 | NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 | 1 | Price TBD | Out of stock | |
| 10 | 3235211 | WASHER-32.3X42X1.5(115288) | 1 | Price TBD | Out of stock | |
| 11 | 3235212 | WASHER-35.6X57X1.5(115289) | 1 | Price TBD | Out of stock | |
| 12 | 3235805 | WASHER 25.26 X 34 X 2 | 1 | $7.99 | In stock | |
| 13 | 3235991 | WASHER 22.70 X 32.0 X 1.5 | 1 | Price TBD | Out of stock | |
| 14 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 15 | 7043746 | PIN, SPRING, SLOTTED 6 X 12 | 1 | Price TBD | Out of stock | |
| 16 | 7710434 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 17 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | Price TBD | Out of stock | |
| 18 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 1 | Price TBD | Out of stock | |
| 19 | 3236619 | RING, RETAINING BASIC INTERNAL 72 | 1 | $12.99 | In stock | |
| 20 | 3234205 | RING, RETAINING, | 3 | Price TBD | Out of stock | |
| 21 | 3239594 | RING, RETAINING, BASIC EXTERNAL SH-39 | 1 | Price TBD | Out of stock | |
| 22 | 3235214 | RING-RETAIN,EXT,MSR-32(130296) | 1 | Price TBD | Out of stock | |
| 23 | 3235216 | RING-RETAIN,VSH-237(130298) | 1 | Price TBD | Out of stock | |
| 24 | 3239951 | RING-RETAINING,SHF-43 | 1 | Price TBD | Out of stock | |
| 25 | 3233378 | WASHER,THRUST,1.187 X 1.500 X .0600 | 2 | Price TBD | Out of stock | |
| 26 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | Price TBD | Out of stock | |
| 27 | 3233014 | BEARING, NEEDLE | 2 | Price TBD | Out of stock | |
| 28 | 3233020 | BEARING | 2 | Price TBD | Out of stock | |
| 29 | 3233589 | BEARING,BALL | 1 | $74.99 | In stock | |
| 30 | 3233384 | BEARING-NEEDLE,30X35X13-CAGED | 1 | Price TBD | Out of stock | |
| 31 | 3234652 | BEARING, BALL 6303, 17 X 47 X 14 | 2 | Price TBD | Out of stock | |
| 32 | 3235807 | BEARING, BALL 6903 17 X 30 X 7 | 3 | Price TBD | Out of stock | |
| 33 | 3239839 | BEARING,BALL 6210 C3 | 2 | Price TBD | Out of stock | |
| 34 | 3236768 | BRG,BALL 6012P PEER 60X95X18 | 1 | $74.99 | In stock | |
| 35 | 3236773 | BEARING, BALL 62/32 | 1 | $59.99 | In stock | |
| 36 | 3239477 | BEARING,BALL 6207 PEER HP C3 35X72X17 | 3 | $49.99 | Out of stock Est. Nov 13, 2026 | |
| 37 | 3239595 | BEARING, BALL 6800, 10 X 19 X 5 | 1 | Price TBD | Out of stock | |
| 38 | 3239596 | BEARING, BALL 6802, 15 X 24 X 5 | 1 | Price TBD | Out of stock | |
| 39 | 3239597 | BEARING, PLAIN FLNGD, 28 X 32 X 13.00 | 1 | Price TBD | Out of stock | |
| 40 | 3235327 | WASHER-SPRING,210393 | 1 | Price TBD | Out of stock | |
| 41 | 3239598 | SPRING, WAVE, 53.00 ID X 61.00 OD | 2 | Price TBD | Out of stock | |
| 42 | 3239599 | SPRING, TORSION | 1 | Price TBD | Out of stock | |
| 43 | 3239600 | SPRING, COMPRESSION, DETENT | 1 | Price TBD | Out of stock | |
| 44 | 3236423 | TUBE, SNORKEL MACH | 1 | $129.99 | In stock | |
| 45 | 3239981 | COVER-SECTOR GEARS,MACH | 1 | Price TBD | Out of stock | |
| 46 | 3239982 | DRUM-SHIFT,MACH | 1 | $209.99 | Out of stock Est. Aug 3, 2026 | |
| 47 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 48 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 49 | 3239602 | STAR, DETENT | 1 | Price TBD | Out of stock | |
| 50 | 3239815 | PLATE, PARK 6-FACE | 1 | Price TBD | Out of stock | |
| 51 | 3236425 | GEAR, 19T SNORKEL | 1 | $139.99 | In stock | |
| 52 | 3236424 | SHAFT IDLER, 27T | 1 | $134.99 | Out of stock Est. Sep 7, 2026 | |
| 53 | 3239835 | SHAFT,REVERSE 23T RC | 1 | Price TBD | Out of stock | |
| 54 | 3235227 | BELLCRANK, 92 DEGREE | 1 | $34.99 | In stock | |
| 55 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 56 | 3236132 | GEAR, LOW 25T | 1 | Price TBD | Out of stock | |
| 57 | 3235986 | GEAR, IDLER 39T | 1 | Price TBD | Out of stock | |
| 58 | 3236427 | GEAR, 43T STAGE 3 | 1 | $134.99 | Out of stock Est. Sep 7, 2026 | |
| 59 | 3236690 | GEAR, 50T STAGE 2 | 1 | $164.99 | Out of stock Est. Sep 14, 2026 | |
| 60 | 3236703 | SHAFT, FRONT OUTPUT | 1 | $164.99 | In stock | |
| 61 | 3239610 | GEAR, LOW 67T | 1 | Price TBD | Out of stock | |
| 62 | 3239612 | RAIL, SHIFT SHAFT | 1 | Price TBD | Out of stock | |
| 63 | 3239614 | CAM, PARK | 1 | Price TBD | Out of stock | |
| 64 | 3239615 | GEAR, REVERSE 56T | 1 | Price TBD | Out of stock | |
| 65 | 3239836 | GEAR,HIGH 46T RC | 1 | $124.99 | Out of stock Est. Oct 2, 2026 | |
| 66 | 3239675 | SLEEVE, PARK | 1 | Price TBD | Out of stock | |
| 67 | 3239676 | SLEEVE, HIGH | 1 | Price TBD | Out of stock | |
| 68 | 3239985 | SHAFT-SHIFT | 1 | $49.99 | Out of stock Est. Oct 2, 2026 | |
| 69 | 3239898 | SHIFT DOG-HIGH/LOW | 2 | $124.99 | In stock | |
| 70 | 3239899 | SHIFT DOG-REVERSE | 1 | $124.99 | In stock | |
| 71 | 3239900 | SHIFT DOG-PARK | 1 | $124.99 | In stock | |
| 72 | 3239840 | WELDMENT,REAR MOUNT BRACKET | 1 | Price TBD | Out of stock | |
| 73 | 3239259 | SUBASSEMBLY, PINION | 1 | $449.99 | In stock | |
| 74 | 3239902 | ASM-PAWL,DETENT,ROLLER | 1 | Price TBD | Out of stock | |
| 75 | 3239620 | SUBASSEMBLY, SHIFT FORK | 1 | Price TBD | Out of stock | |
| 76 | 3239621 | SUBASSEMBLY, SHIFT FORK | 1 | Price TBD | Out of stock | |
| 77 | 3239842 | SUBASSEMBLY,RH CASE | 1 | Price TBD | Out of stock | |
| 78 | 3239841 | SUBASSEMBLY,LH CASE | 1 | Price TBD | Out of stock | |
| 79 | 3239843 | SUBASSEMBLY,REAR OUTPUT 61T | 1 | Price TBD | Out of stock | |
| 80 | 3239837 | SUBASM,INPUT 48T/22T/25T RC | 1 | $79.99 | Out of stock Est. Oct 28, 2026 | |
| 81 | 3235823 | COVER, BEARING CENTER DRIVE | 1 | $59.99 | In stock | |
| 82 | 3239844 | BRACKET,REAR MOUNT | 1 | Price TBD | Out of stock | |
| 83 | 7662468 | SWITCH, ROTARY, 2 PIN RESISTIVE | 1 | $54.99 | Out of stock Est. Sep 29, 2026 | |
| 84 | 4082135 | SENSOR-SPEED | 1 | Price TBD | Out of stock | |
| 85 | 3233836 | O-RING, -012 VITON | 1 | Price TBD | Out of stock | |
| 86 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock | |
| 87 | 3235824 | SEAL, TRIPLE LIP 30 X 75 X 8 | 1 | $69.99 | In stock | |
| 88 | 3235948 | O-RING 3.609 I.D. X 0.139 | 1 | $7.99 | In stock | |
| 89 | 3236279 | O-RING, -016 VITON | 1 | Price TBD | Out of stock | |
| 90 | 3239564 | SEAL-LGHTR LIP W/FLNGE,32X49X9 | 1 | $74.99 | In stock | |
| 91 | 3239726 | SEAL-TRIPLE LIP,VITON,40X70X7 | 2 | $39.99 | Out of stock Est. Aug 24, 2026 |
