Schematic diagram
Polaris•Schematic assembly

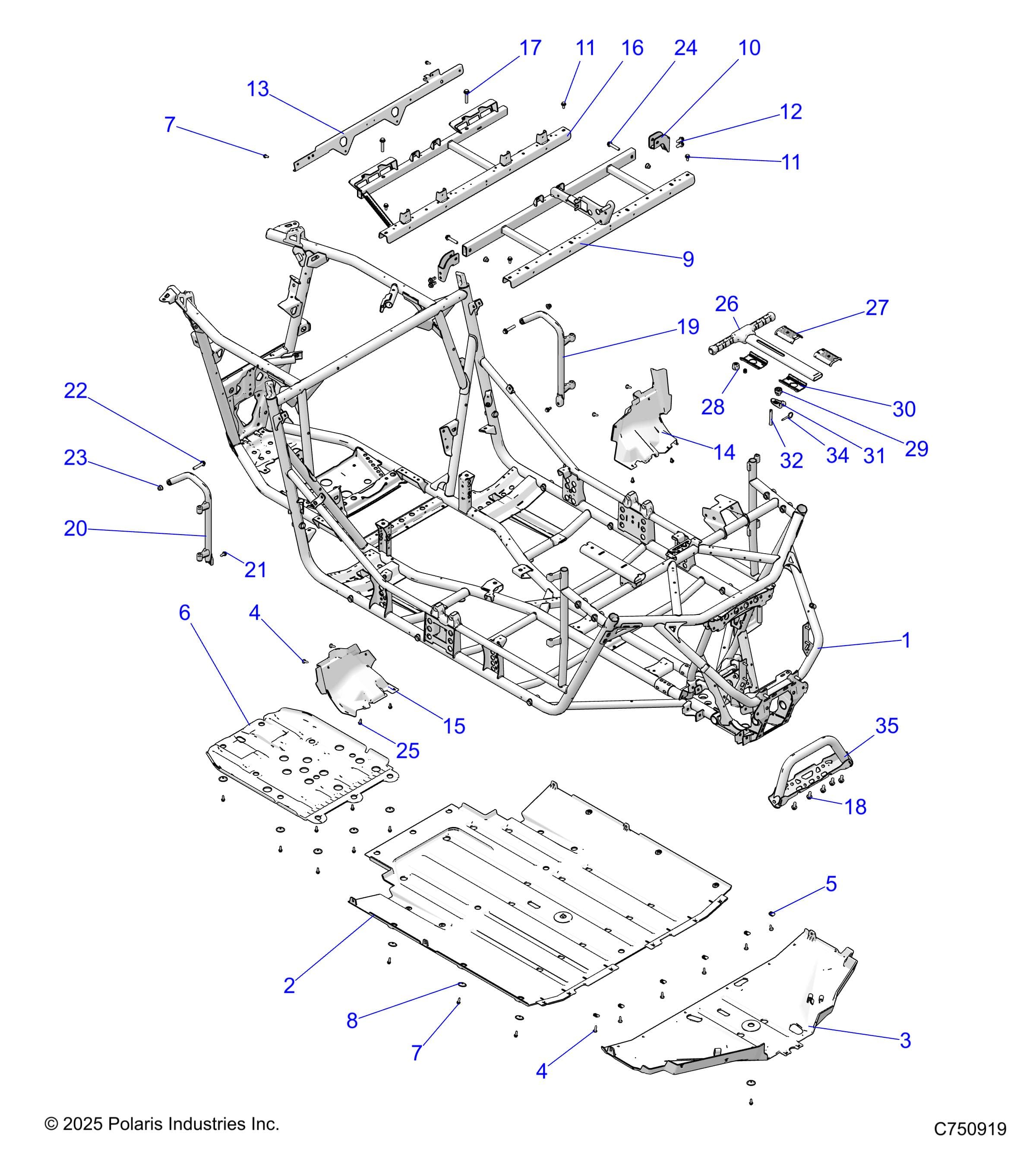

CHASSIS, MAIN FRAME AND SKID PLATES - Z26NMX99A4/B4/A6/B6 (C750919)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP S 4 1000 SPORT Assembly ID: 255159
Vehicle Compatibility
- 2026 Polaris RZR XP S 4 1000 SPORT
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1028663-458 | WELD-FRAME MAIN,MP,72,BLK | 1 | $5,744.99 | In stock | |
| 2 | 5466371-070 | SKID PLATE-MID,MP,BLK | 1 | $314.99 | In stock | |
| 3 | 5466531-070 | PLATE-SKID,FRONT,MP,BLK | 1 | $134.99 | In stock | |
| 4 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 10 | Price TBD | Out of stock | |
| 5 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 6 | Price TBD | Out of stock | |
| 6 | 5466296-070 | PLATE-SKID,REAR | 1 | $209.99 | In stock | |
| 7 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 26 | Price TBD | Out of stock | |
| 8 | 7556065 | WASHER-SKID PLATE | 24 | Price TBD | Out of stock | |
| 9 | 1026957-329 | WELD-SEAT BASE,FRT,MP,BLK | 1 | $239.99 | In stock | |
| 10 | 1026483-329 | BRKT-SEAT SUPPORT,FRT,MP,ECOAT | 2 | $79.99 | In stock | |
| 11 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 4 | Price TBD | Out of stock | |
| 12 | 7518934 | SCR-M10X1.5X25-8.8 HFS ZOD | 4 | $4.99 | In stock | |
| 13 | 5274852-329 | BRKT-CLOSE OFF SUPPORT,ECOAT | 1 | $114.99 | In stock | |
| 14 | 5457593-070 | COVER-SCM,LH,BLK | 1 | $49.99 | In stock | |
| 15 | 5457594-070 | COVER-TANK,RH,BLK | 1 | $44.99 | In stock | |
| 16 | 1026958-329 | WELD-SEAT BASE,REAR,MP,BLK | 1 | $279.99 | In stock | |
| 17 | 7518474 | SCR-HXFL-M10X1.5X55 8.8 ZY3 | 2 | $5.99 | In stock | |
| 18 | 7519071 | SCR-M10X1.5X25 8.8 HXFL ZOD | 5 | Price TBD | Out of stock | |
| 19 | 1026695-458 | WELD-BOLSTER,LH,REAR,BLK | 1 | $114.99 | In stock | |
| 20 | 1026696-458 | WELD-BOLSTER,RH,REAR,BLK | 1 | $114.99 | In stock | |
| 21 | 7518450 | BOLT-M8X1.25X20,HXHDFLG,W/PTCH | 2 | $1.99 | In stock | |
| 22 | 7519956 | SCR-HXFL-M10X1.25X55 10.9 RIE | 2 | $2.99 | In stock | |
| 23 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 24 | 7519285 | SCR-HXFL-M10X1.25X55 10.9 ZOD | 2 | $2.99 | In stock | |
| 25 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 4 | Price TBD | Out of stock | |
| 26 | 2637771 | ASM-GRAB BAR | 1 | $104.99 | In stock | |
| 27 | 5457427 | BUSHING-GRAB BAR,UPPER | 2 | $5.99 | In stock | |
| 28 | 5457511 | NUT-GRAB BAR | 1 | $8.99 | In stock | |
| 29 | 5457512 | CAP,GRAB BAR LEVER | 1 | $5.99 | In stock | |
| 30 | 5457891 | BUSHING-GRAB BAR,LOWER | 2 | $5.99 | In stock | |
| 31 | 5459039 | LEVER,GRAB BAR | 1 | $3.99 | In stock | |
| 32 | 7521309 | ROD-GRAB BAR THREADED | 1 | $8.99 | In stock | |
| 34 | 7663047 | PIN-GRAB BAR | 1 | $9.99 | In stock | |
| 35 | 1028894-458 | WELD-FRT,BUMPER,BLK | 1 | $299.99 | In stock |
