Polaris•Schematic assembly

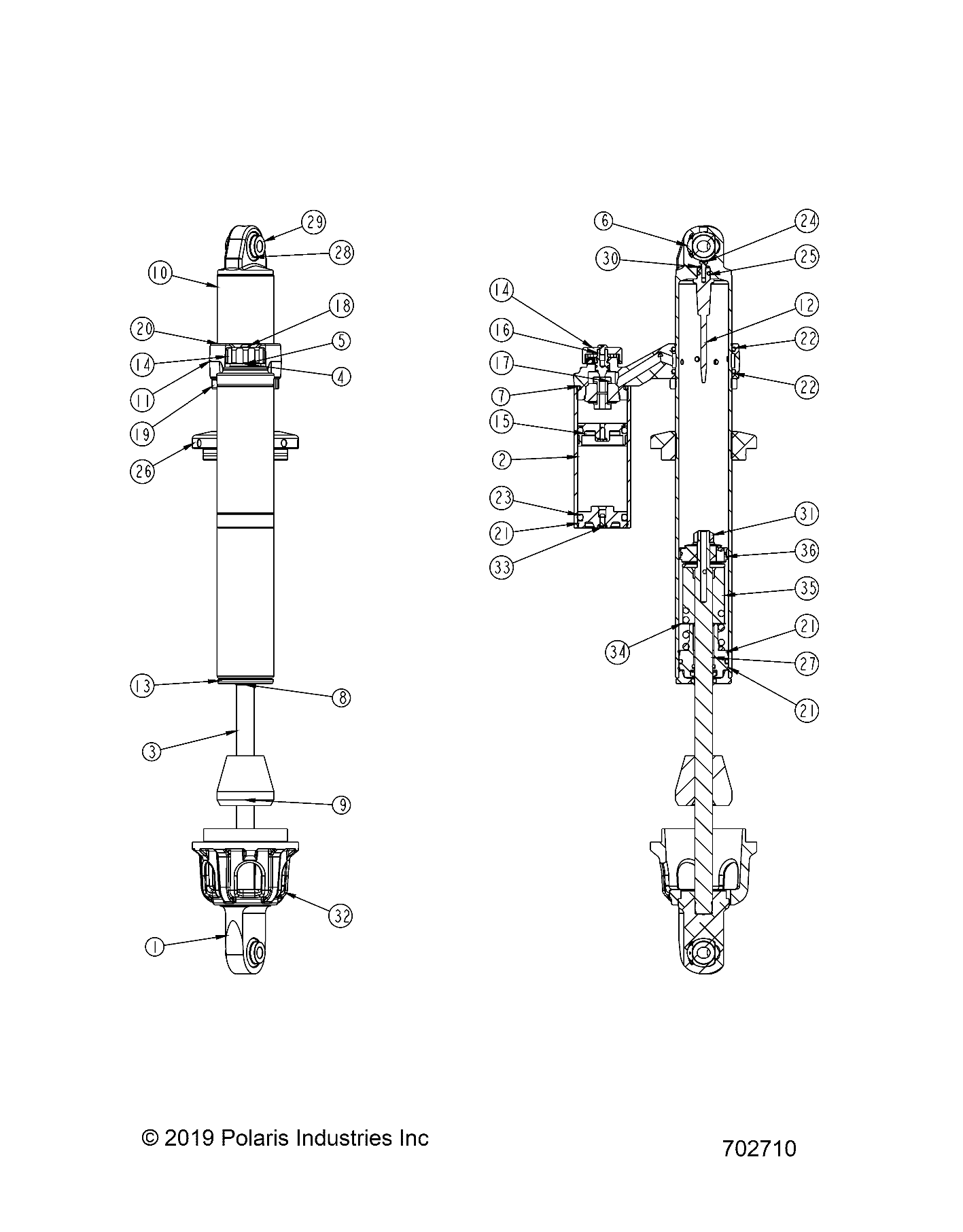

SUSPENSION, FRONT SHOCK INTERNALS - Z26NMT99A4/B4/A6 (702710)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP 4 1000 ULTIMATE Assembly ID: 254857
Vehicle Compatibility
- 2026 Polaris RZR XP 4 1000 ULTIMATE
Checkout Note
Please note that 14 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 7045916 | SHOCK,FRONT,MP,LH [INCLUDES 1-36] | 1 | $899.99 | In stock | |
| - | 7045917 | SHOCK,FRONT,MP,RH [INCLUDES 1-36] | 1 | $899.99 | In stock | |
| 1 | ------- | SHAFT LOOP, I .00 BORE, BRNG STEP, 2. 930L | 1 | Price TBD | Out of stock | |
| 2 | ------- | RES BODY, 2.0", 5.0L, WIRE RING | 1 | Price TBD | Out of stock | |
| 3 | ------- | NEEDLE SHAFT, .625 X 13.500L | 1 | Price TBD | Out of stock | |
| 4 | 1800127 | BALL, DETENT 3/16" | 1 | $7.99 | In stock | |
| 5 | 1800128 | SPRING-COMP .025X.3, 40.5# | 1 | $13.99 | In stock | |
| 6 | 1800041 | RING, SNAP, END BEARING | 2 | $9.99 | Out of stock Est. Aug 24, 2026 | |
| 7 | 1800030 | O-RING BODY LOOP | 2 | $2.49 | In stock | |
| 8 | 1800034 | WIPER, 5/8" D/TYPE- BLK | 1 | $44.99 | In stock | |
| 9 | ------- | BUMP STOP, 64g - (ISC-140224) | 1 | Price TBD | Out of stock | |
| 10 | ------- | BODY, 2.0 IMP EXT, VS, CO | 1 | Price TBD | Out of stock | |
| 11 | 1800921 | BRIDGE, WIDE 2.0 WER ADJUSTER (CLEAR) | 1 | $164.99 | In stock | |
| 12 | 1800861 | NEEDLE-1PC PRESS IN 1620008 | 1 | $64.99 | In stock | |
| 13 | 1800794 | CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE) | 1 | $54.99 | In stock | |
| 14 | 1800418 | KNOB,CLICKER BLK (1000604) | 1 | $114.99 | In stock | |
| 15 | ------- | IFP PISTON ASM I. 750, W-BLEED | 1 | Price TBD | Out of stock | |
| 16 | 1800758 | ASM-CLICKER STUD 404613 | 1 | $29.99 | In stock | |
| 17 | ------- | ASM. CLICKER PISTON | 1 | Price TBD | Out of stock | |
| 18 | 1800357 | SCREW, 10X5/8 BTN SS (500603) | 1 | $3.99 | In stock | |
| 19 | ------- | 2. 0 JAMB NUT, STUB ACME THD | 1 | Price TBD | Out of stock | |
| 20 | 1800862 | RING-RETAINING 1520119 | 1 | $7.99 | In stock | |
| 21 | 1800795 | RETAINING RING WIRE 0.0625 X 1.750ID | 3 | $9.99 | In stock | |
| 22 | 1800863 | O-RING, 2-226 1600018 | 2 | $5.99 | In stock | |
| 23 | 1800184 | O-RING, 2-324 | 1 | $6.99 | In stock | |
| 24 | 1800843 | #8-32 X .500 LOW HEAD SCREW | 1 | $5.99 | In stock | |
| 25 | 1800864 | O-RING, 2-108 1600026 | 1 | $5.99 | In stock | |
| 26 | 1800865 | SPRING NUT-2" CLEAR 1620014-AC | 1 | $49.99 | In stock | |
| 27 | ------- | 0-RING 2-108 | 1 | Price TBD | Out of stock | |
| 28 | 1800843 | #8-32 X .500 LOW HEAD SCREW | 1 | $5.99 | In stock | |
| 29 | 1800809 | BEARING-HKFS8T-10MM 1600130 | 1 | $59.99 | In stock | |
| 30 | 1801031 | 0-RING 5MM ID X 2MM 1600073 | 1 | $1.99 | In stock | |
| 31 | 1800638 | NUT 7/16 NYLOCK (1425112) | 1 | $5.99 | In stock | |
| 32 | 5634606 | RETAINER-SPRING,CAST | 1 | $94.99 | Out of stock Est. Aug 6, 2026 | |
| 33 | 1801044 | 2.0 END CAP ASM,WR,PORT | 1 | $89.99 | In stock | |
| 34 | ------- | SHIM, 5/8 X .015 X 1.55 | 1 | Price TBD | Out of stock | |
| 35 | ------- | SHAFT SPACER, .6251D X I .970L | 1 | Price TBD | Out of stock | |
| 36 | ------- | PISTON ASSEMBLY | 1 | Price TBD | Out of stock |
