Schematic diagram
Polaris•Schematic assembly
FUEL SYSTEM, EVAP
Product Description

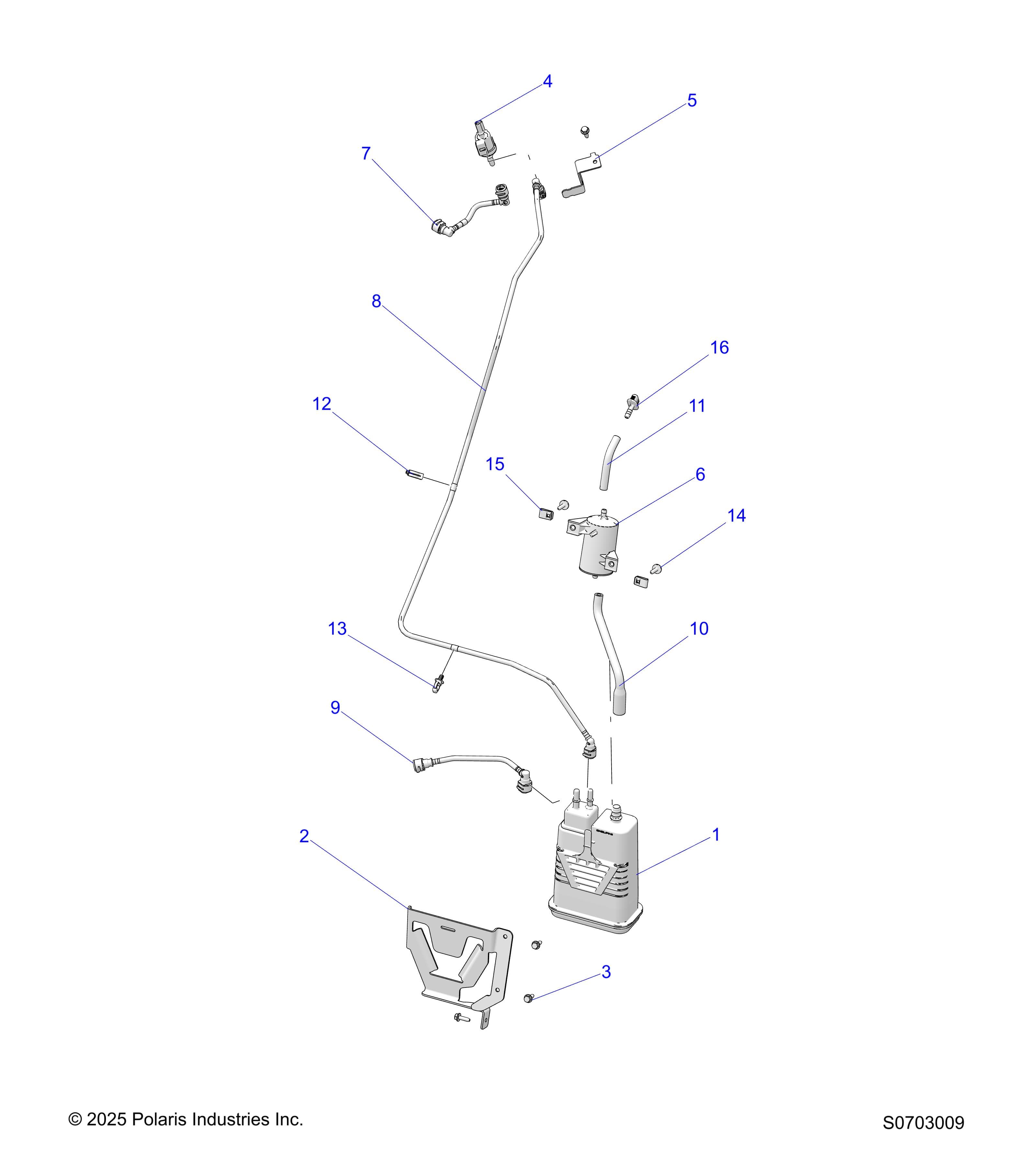

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 254461
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2521786 | CANISTER-ACTIVATED CARBON | 1 | $94.99 | Out of stock Est. Jul 24, 2026 | |
| 2 | 5263839-329 | BRKT-CANISTER,MNT,BLK | 1 | $39.99 | In stock | |
| 3 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | $1.49 | In stock | |
| 4 | 2521964 | VALVE-PURGE | 1 | $79.99 | In stock | |
| 5 | 5266036 | BRKT-PURGE VALVE,MOUNT | 1 | $44.99 | In stock | |
| 6 | 2521750 | FILTER-CANISTER VENT | 1 | $69.99 | In stock | |
| 7 | 2521979 | ASM-LINE,PURGE TO TB [INCLUDES FITTING] | 1 | $74.99 | In stock | |
| 7 | 5416362 | FITTING,90,7.6X7.95MM | 1 | $11.99 | Out of stock Est. Dec 14, 2026 | |
| 8 | 2521877 | ASM-LINE,CANISTER TO PURGE [INCLUDES FITTING] | 1 | $99.99 | In stock | |
| 8 | 5416362 | FITTING,90,7.6X7.95MM | 1 | $11.99 | Out of stock Est. Dec 14, 2026 | |
| 9 | 2522002 | ASM-LINE,TANK TO CANISTER � | 1 | $74.99 | In stock | |
| 10 | 5416216 | HOSE-AIR,FRESH,FUEL VENT | 1 | $18.99 | In stock | |
| 11 | 8450040-10 | FUEL LINE-10 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 12 | 7082407 | CLIP-OMEGA,CABLE/10-14MM DIA � | 3 | $4.99 | In stock | |
| 13 | 7081496 | CLIP FIR-TREE,DIA6-33MM � | 1 | $5.99 | In stock | |
| 14 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | $4.99 | In stock | |
| 15 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | $1.49 | In stock | |
| 16 | 5453465 | FITTING-VENT LINE | 1 | $6.99 | In stock |
