Schematic diagram
Polaris•Schematic assembly

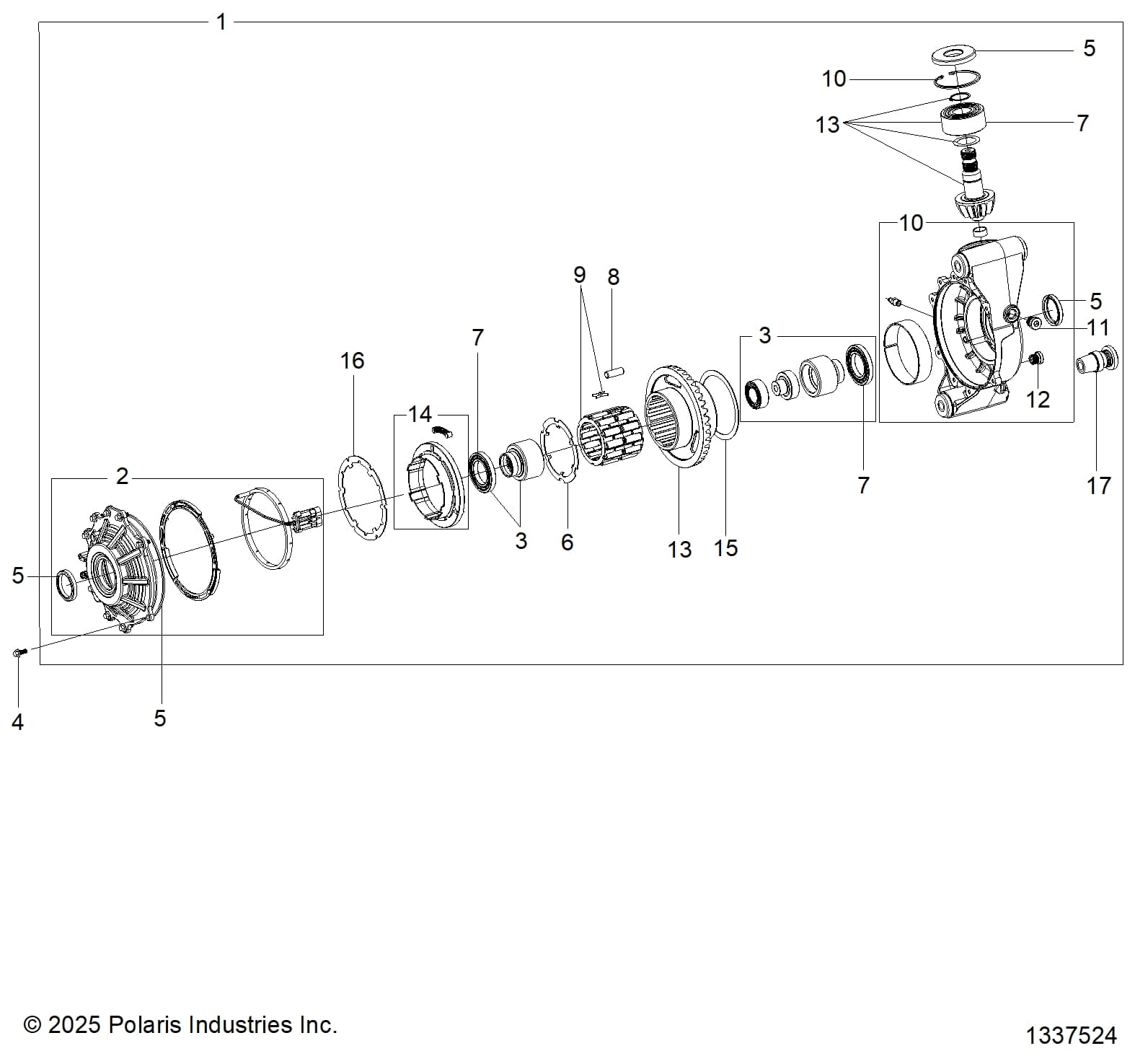

DRIVE TRAIN, FRONT GEARCASE - Z26NEX99A4/B4/A6/B6 (1337524)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP S 1000 SPORT Assembly ID: 254056
Vehicle Compatibility
- 2026 Polaris RZR XP S 1000 SPORT
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337524 | ASM-GEARCASE,FRONT [INCLUDES ALL] | 1 | $2,099.99 | In stock | |
| 2 | 3239799 | ASM-COVER OUTPUT [DOES NOT INCLUDE HARWARE] | 1 | $499.99 | In stock | |
| 3 | 3239800 | ASM - OUTPUT HUB | 1 | $509.99 | In stock | |
| 4 | 3236202 | COVER, FASTENERS | 9 | $34.99 | In stock | |
| 5 | 3239501 | KIT, SEAL REPAIR | 1 | $154.99 | In stock | |
| 6 | 3236205 | PLATE, CAGE | 1 | $114.99 | In stock | |
| 7 | 3236206 | BEARINGS | 1 | $199.99 | In stock | |
| 8 | 3236207 | CAGE ROLLERS | 1 | $4.99 | In stock | |
| 9 | 3236208 | ASM, ROLL CAGE [INCLUDES ROLL CAGE & 24 H-CLIPS] | 24 | $449.99 | Out of stock Est. Sep 3, 2026 | |
| 10 | 3239801 | ASM-GEARCASE | 1 | $629.99 | In stock | |
| 11 | 2203738 | KIT-PLUG,DRAIN | 1 | Price TBD | Out of stock | |
| 12 | 2203739 | KIT-PLUG,FILL | 1 | Price TBD | Out of stock | |
| 13 | 3239820 | KIT-GEAR HOUSING & PINION GEAR ASSSY | 1 | $999.99 | In stock | |
| 14 | 3239527 | TORSION RETAINER ASSEMBLY | 1 | $219.99 | In stock | |
| 15 | 3236212 | SPACER, GEAR | 1 | $49.99 | In stock | |
| 16 | 3236488 | PLATE, 4WD ARMATURE | 1 | $79.99 | In stock | |
| 17 | 5417265 | KIT-ISOLATOR | 1 | Price TBD | Out of stock |
