Schematic diagram
Polaris•Schematic assembly

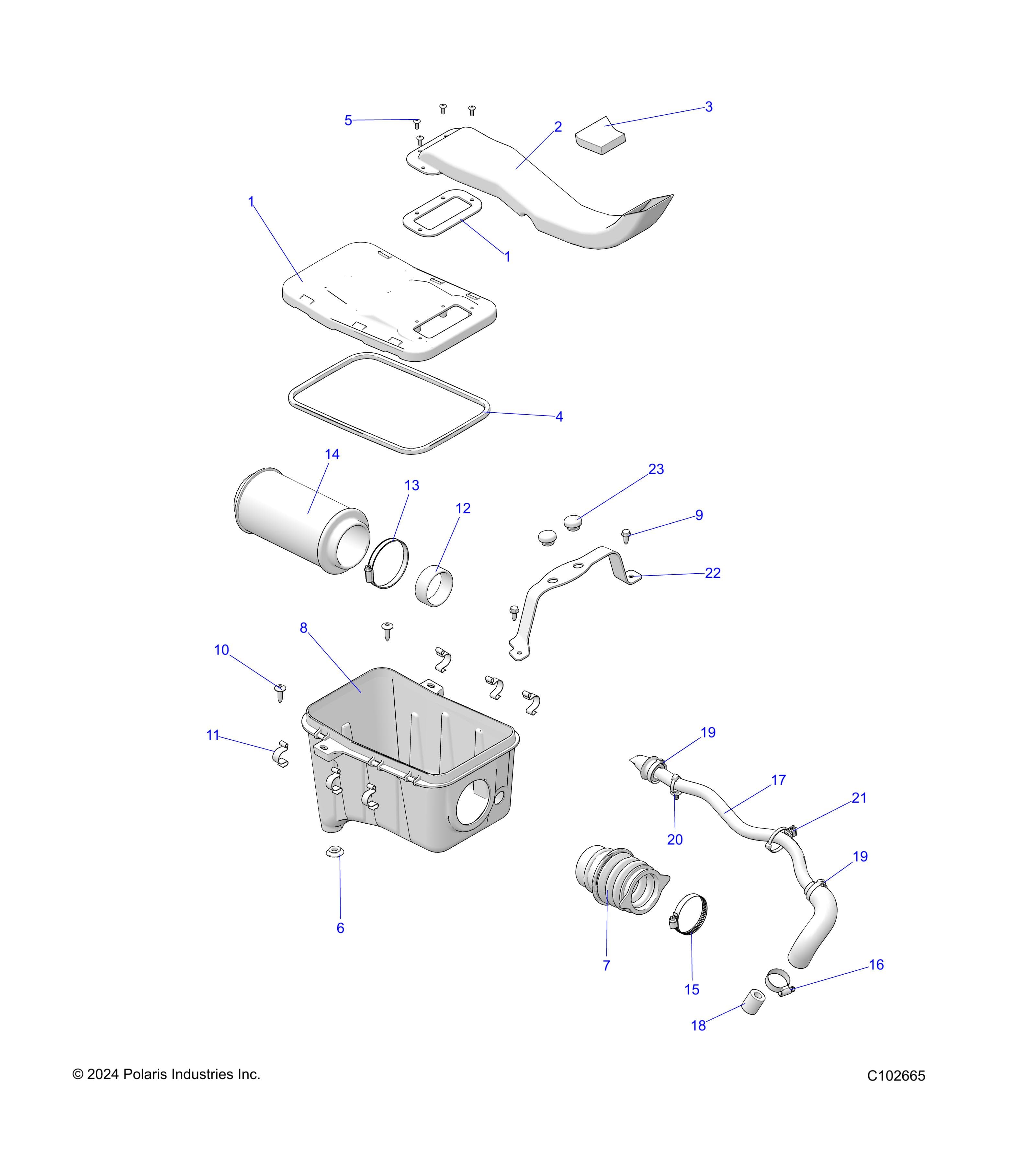

ENGINE, AIR INTAKE SYSTEM - A26SJR57AG (C102665)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING 570 ULT Assembly ID: 253909
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING 570 ULT
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1244766 | ASM-COVER/DUCT,TOUR [INCL 1-5] | 1 | $139.99 | In stock | |
| 1 | 5459622 | COVER-AIR BOX | 1 | $54.99 | In stock | |
| 1 | 5411422 | GASKET, INTAKE | 1 | $8.29 | In stock | |
| 1 | 5459622 | COVER-AIR BOX | 1 | $54.99 | In stock | |
| 1 | 5411422 | GASKET, INTAKE | 1 | $8.29 | In stock | |
| 2 | 5450580 | DUCT-AIR INLET,TOUR | 1 | $37.99 | In stock | |
| 3 | 5815089 | FOAM,INTAKE,STICK ON | 1 | $8.99 | In stock | |
| 4 | 5813949 | SEAL, AIRBOX COVER | 1 | $34.99 | In stock | |
| 5 | 7517317 | SCR-#8X1/2,TR/PH,TYPE B-Y | 4 | $3.99 | In stock | |
| 6 | 5418084 | PLUG-COMPARTMENT | 1 | Price TBD | Out of stock | |
| 7 | 5415034 | BOOT, ENGINE, INTAKE | 1 | $109.99 | In stock | |
| 8 | 5450387 | BOX, AIR INTAKE | 1 | $169.99 | In stock | |
| 9 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 10 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 11 | 5242044 | CLIP-AIR BOX | 6 | $11.99 | In stock | |
| 12 | 5433847 | SLEEVE, CARBURETOR, INNER | 1 | $17.99 | In stock | |
| 13 | 7080707 | CLAMP-BAND,NARROW 60-80MM | 1 | Price TBD | Out of stock | |
| 14 | 7083107 | FILTER-AIR INTAKE,HD | 1 | $34.99 | In stock | |
| 14 | 7083114 | FILTER-HD AIR INTAKE, 208MM HD OPTION | 1 | $59.99 | Out of stock Est. Jul 27, 2026 | |
| 15 | 7080446 | CLAMP, HOSE, 2.75" SS | 1 | $13.99 | In stock | |
| 16 | 7081174 | CLAMP-HOSE,13/16"-1 1/2" | 1 | Price TBD | Out of stock | |
| 17 | 2523082 | ASM-CRANK BREATHER,ATV | 1 | $74.99 | In stock | |
| 18 | ------- | BUSHING-BREATHER HOSE | 1 | Price TBD | Out of stock | |
| 19 | ------- | CLAMP-HOSE,OETIKER,25.4-28.6 | 4 | Price TBD | Out of stock | |
| 20 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 21 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 1 | Price TBD | Out of stock | |
| 22 | 5274388-329 | BRKT-SUPPORT,INTAKE DUCT,BLK | 1 | $29.99 | In stock | |
| 23 | 5412067 | BUMPER-RUBBER | 2 | Price TBD | Out of stock |
