Schematic diagram
Polaris•Schematic assembly

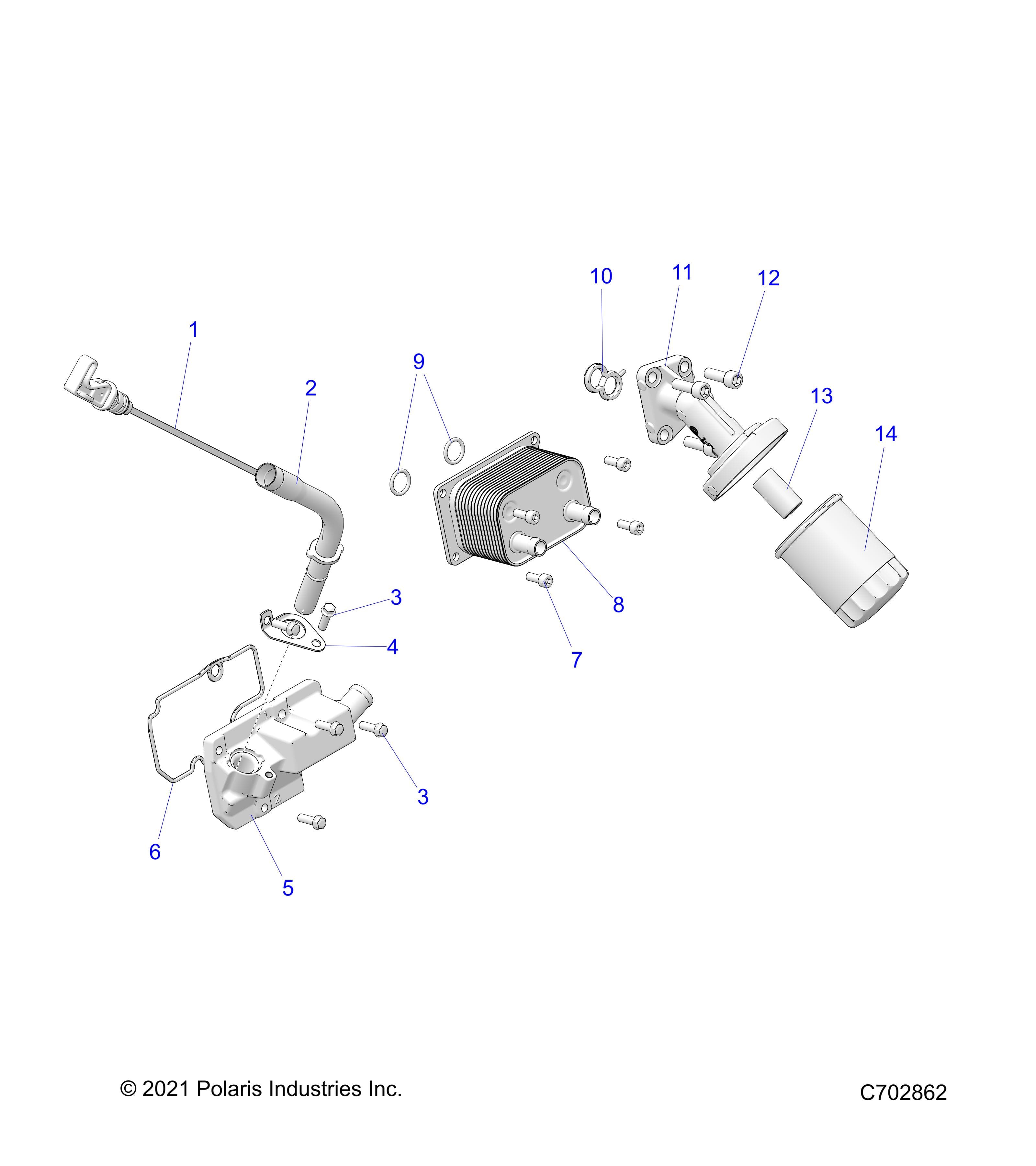

ENGINE, DIPSTICK AND OIL FILTER - Z26NET99A4/B4/A6/B6 (C702862)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP 1000 ULTIMATE Assembly ID: 253677
Vehicle Compatibility
- 2026 Polaris RZR XP 1000 ULTIMATE
Checkout Note
Please note that 16 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023488 | ASM-DIPSTICK | 1 | Price TBD | Out of stock | |
| 2 | 1204547 | ASM-OIL FILL TUBE [INCL. O-RING] | 1 | Price TBD | Out of stock | |
| 2 | 5414047 | O-RING, 12MMX2MM | 1 | Price TBD | Out of stock | |
| 3 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 5 | Price TBD | Out of stock | |
| 4 | 5255453 | BRACKET, TUBE, OIL FILL, LOWER | 1 | Price TBD | Out of stock | |
| 5 | 5143720 | COVER-BREATHER,MACH | 1 | Price TBD | Out of stock | |
| 6 | 5815811 | SEAL-COVER,BREATHER | 1 | $4.99 | Out of stock Est. Aug 27, 2026 | |
| 7 | 7519303 | SCREW-SH-M6X1.0X16 8.8 ZPY D204 | 4 | Price TBD | Out of stock | |
| 8 | 1240820 | COOLER, OIL TO WATER, 7 | 1 | $124.99 | Out of stock Est. Jul 31, 2026 | |
| 9 | 5413837 | O-RING,.612X.818X.103 | 2 | Price TBD | Out of stock | |
| 10 | 3610348 | SEAL-FILTER ADAPTER-3HOLE | 1 | Price TBD | Out of stock | |
| 11 | 5142156 | ADAPTER-OIL FILTER, MACH | 1 | Price TBD | Out of stock | |
| 12 | 7518142 | SCR-SH-M8X1.25X25 8.8 ZPC NYL | 3 | Price TBD | Out of stock | |
| 13 | 2521530 | ADAPTOR-FILTER,STRAIGHT | 1 | Price TBD | Out of stock | |
| 14 | 2540086 | FILTER-OIL (10 MICRON) | 1 | Price TBD | Out of stock | |
| 14 | 2522485 | FILTER-HD,OIL [HD OPTION] | 1 | Price TBD | Out of stock |
