Polaris•Schematic assembly

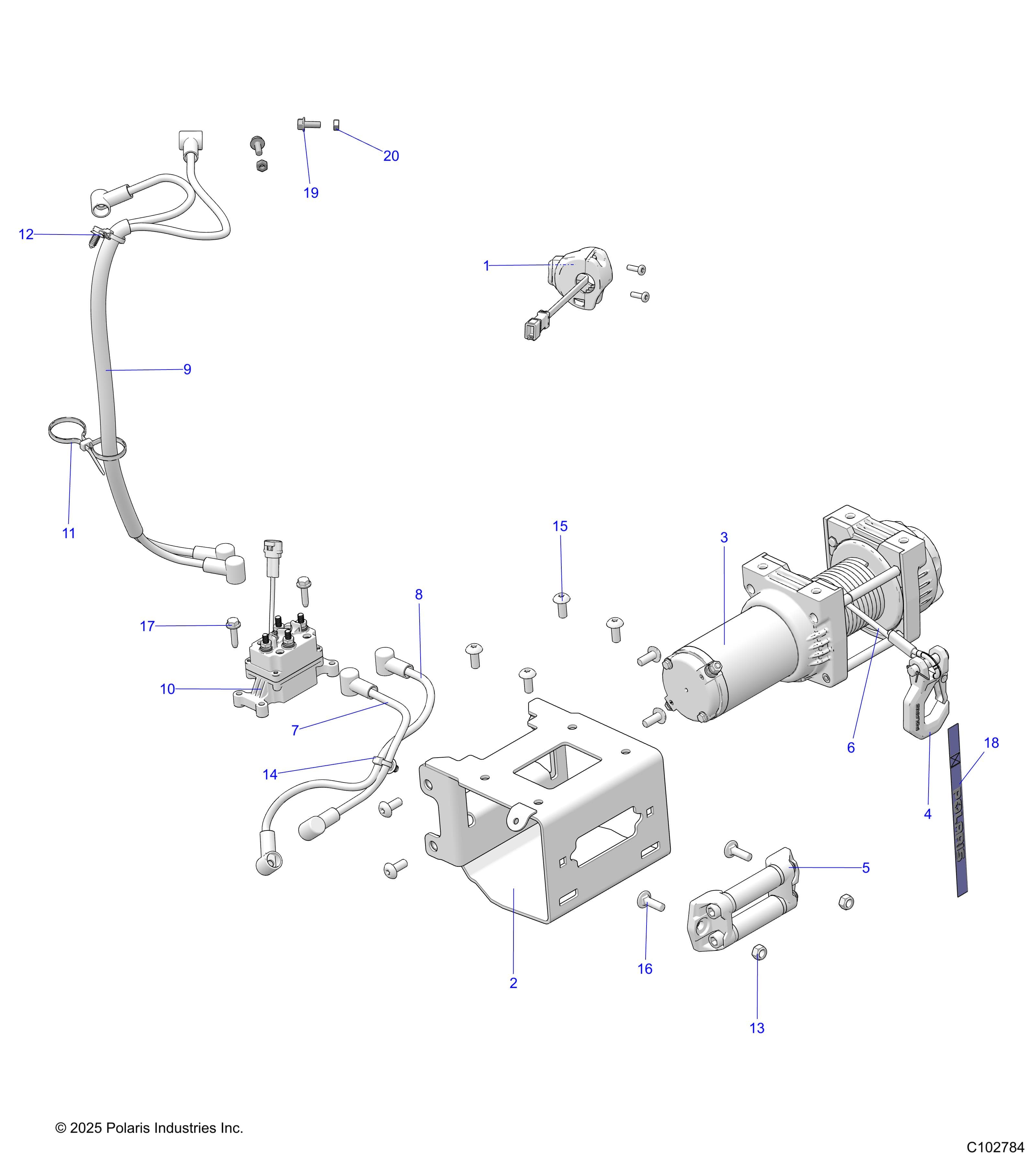

CHASSIS, WINCH - A26SEE57A1/A4/A6/A9/B1/B4/B6 (C102784)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 EPS Assembly ID: 253491
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 EPS
Checkout Note
Please note that 14 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2640641 | ASM-WINCH,35HD,TH,PRD,BAS,SAP [INCL. ALL] | 1 | Price TBD | Out of stock | |
| 1 | 2207175 | K-WINCH SWITCH,HBR,EU,ATV [INCL. HOUSING, SWITCH, & SCREWS] | 1 | $79.99 | In stock | |
| 1 | 4017111 | SWITCH-HBR,EU,ATV | 1 | Price TBD | Out of stock | |
| 1 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 2 | Price TBD | Out of stock | |
| 2 | 1025981 | WELD-BRKT,WINCH MOUNT,SAP | 1 | $114.99 | In stock | |
| 3 | 2212694 | WINCH-POL,35HD,TH,T,B+45 [INCL 3] | 1 | $364.99 | In stock | |
| 3 | 2205265 | K-SVC, HANDLE, HD WINCH | 1 | Price TBD | Out of stock | |
| 3 | 2212756 | SVC-WINCH MOTOR,35HDT | 1 | $99.99 | In stock | |
| 4 | 5910705 | HOOK-LATCH,WINCH,ULT,CMN [INCL 17] | 1 | Price TBD | Out of stock | |
| 5 | 2638130 | ASM-FAIRLEAD,ROLLER,LOWPRO,NRW [INCL 13] | 1 | $99.99 | In stock | |
| 6 | 2878890 | CABLE-WINCH,STEEL,3/16" | 1 | $49.99 | Out of stock Est. Aug 18, 2026 | |
| 7 | 4013468-300 | CABLE-WINCH,YELLOW 6 GA,300MM | 1 | $44.99 | In stock | |
| 8 | 4013469-410 | CABLE-WINCH,BLUE 6 GA,410MM | 1 | $29.99 | In stock | |
| 9 | 2415675 | ASM-HARN,POWER,WINCH,SAP [INCL 11] | 1 | $84.99 | In stock | |
| 10 | 4015095 | CONTACTOR-WINCH,POL,LIF,CAP | 1 | $109.99 | In stock | |
| 11 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 1 | Price TBD | Out of stock | |
| 12 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 13 | 7547144 | NUT-NYLOCK M8X1.25-Y | 2 | Price TBD | Out of stock | |
| 14 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 15 | 7519260 | SCR-TXTH-M8X1.25X20 8.8 ZODP30 | 8 | $7.99 | In stock | |
| 16 | 7519324 | SCR-RHCAR-M8X1.25X25 8.8 ZOD | 2 | $3.99 | In stock | |
| 17 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 2 | Price TBD | Out of stock | |
| 18 | 7083177 | STRAP-WINCH HOOK,POL,BLUE | 1 | Price TBD | Out of stock | |
| 19 | 7518591 | SCREW-HXFL-M6X1.0X16 8.8 ZPB | 2 | Price TBD | Out of stock | |
| 20 | 7546701 | NUT-M6X1 HX R.HAND-Y | 2 | Price TBD | Out of stock |
