Polaris•Schematic assembly

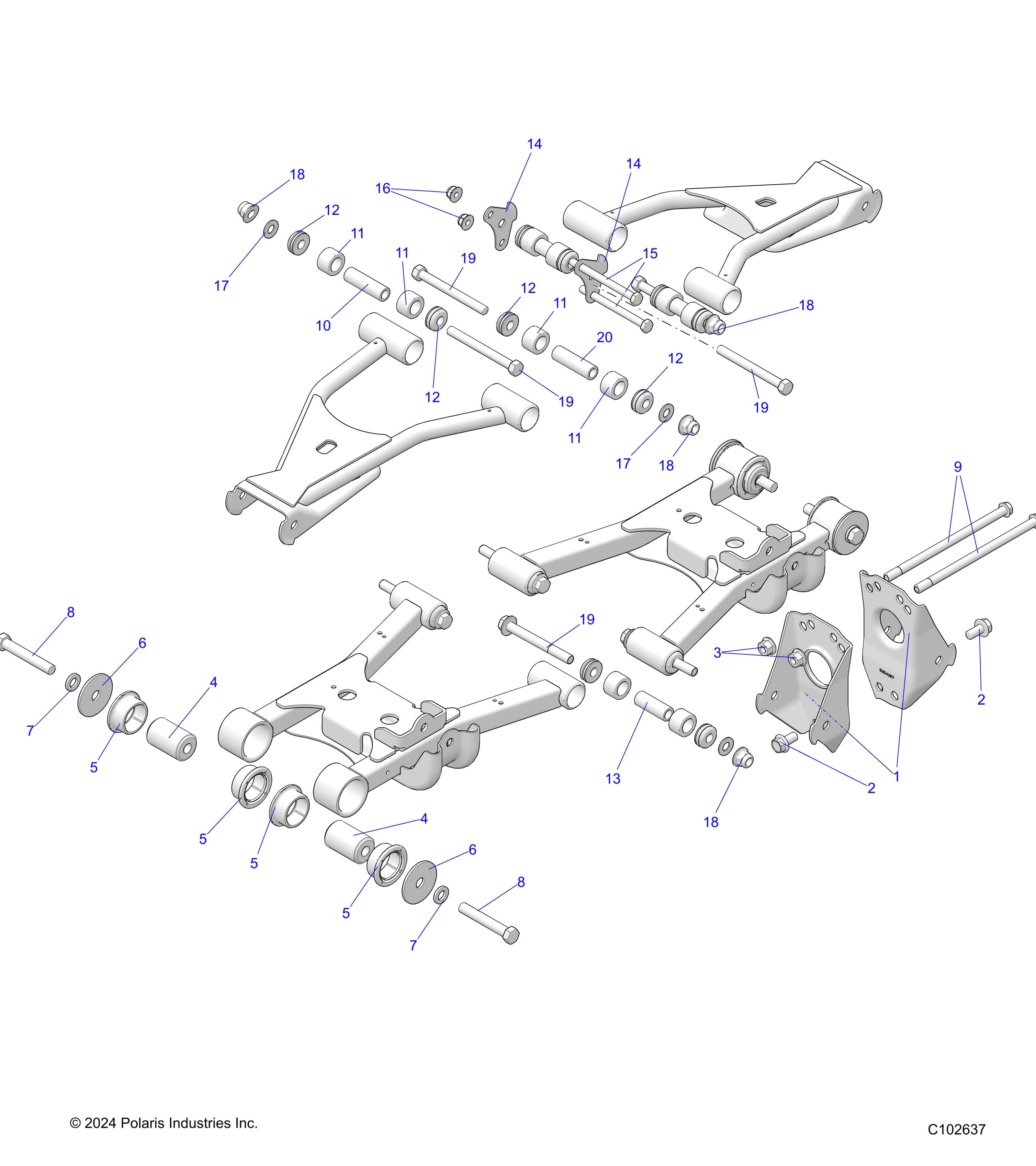

SUSPENSION, MIDDLE CONTROL ARM MOUNTING - A26SKE57A1 (C102637)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253236
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5264874-329 | BRKT-CONTROL-ARM,PIVOT10MM,BLK | 2 | $39.99 | In stock | |
| 2 | 7517632 | SCR-3/8-16X3/4 HX FLNG-GR5-Y | 2 | $6.99 | In stock | |
| 3 | 7547180 | NUT-FLANGED,3/8-16 NYLON-Z | 2 | Price TBD | Out of stock | |
| 4 | 5632291 | BUSHING, BEARING CARRIER | 4 | $29.99 | In stock | |
| 5 | 5418905 | BUSHING, CONTROL, LOWER, BLACK | 8 | $5.99 | In stock | |
| 6 | 7555740 | WASHER, FLAT | 4 | $1.99 | In stock | |
| 7 | 7552614 | WASHER-LOCK, 7/16-B | 4 | $1.99 | In stock | |
| 8 | 7517873 | SCR-HH-7/16-14X2.75 GR5 ZY3 NY | 4 | $2.99 | In stock | |
| 9 | 7518365 | BOLT-3/8-16X7 HX FLNG GR5-Y | 2 | $8.99 | In stock | |
| 10 | 5141387 | SHAFT-PIVOT,54MM,M10 | 2 | $12.99 | In stock | |
| 11 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 8 | Price TBD | Out of stock | |
| 11 | 1543326 | ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) | 8 | $15.99 | In stock | |
| 11 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 8 | Price TBD | Out of stock | |
| 11 | 1543326 | ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) | 8 | $15.99 | In stock | |
| 11 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 8 | Price TBD | Out of stock | |
| 11 | 1543326 | ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) | 8 | $15.99 | In stock | |
| 11 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 8 | Price TBD | Out of stock | |
| 11 | 1543326 | ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) | 8 | $15.99 | In stock | |
| 12 | 1543611 | ASM-PIVOT CAP, SEALED, M10 | 8 | Price TBD | Out of stock | |
| 13 | 5141292 | SHAFT-PIVOT,SHORT,M10,43MM | 4 | $4.99 | In stock | |
| 14 | 5273356-329 | BRKT-CONTROL ARM,PIVOT,6X6,BLK | 2 | $54.99 | In stock | |
| 15 | 7515382 | SCR-HH-5/16-18X3.75 GR5 ZY3 | 2 | $2.99 | In stock | |
| 16 | 7542343 | NUT-5/16-18 HX FLG NL-Y | 2 | Price TBD | Out of stock | |
| 17 | 7557235 | WSHR-FLAT-M10X2.0 ZTB | 8 | Price TBD | Out of stock | |
| 18 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 8 | Price TBD | Out of stock | |
| 19 | 7521333-95 | SCR-HXFL-M10X1.5X95 10.9 ZFB | 8 | $2.99 | In stock | |
| 20 | 5141292 | SHAFT-PIVOT,SHORT,M10,43MM | 2 | $4.99 | In stock |
