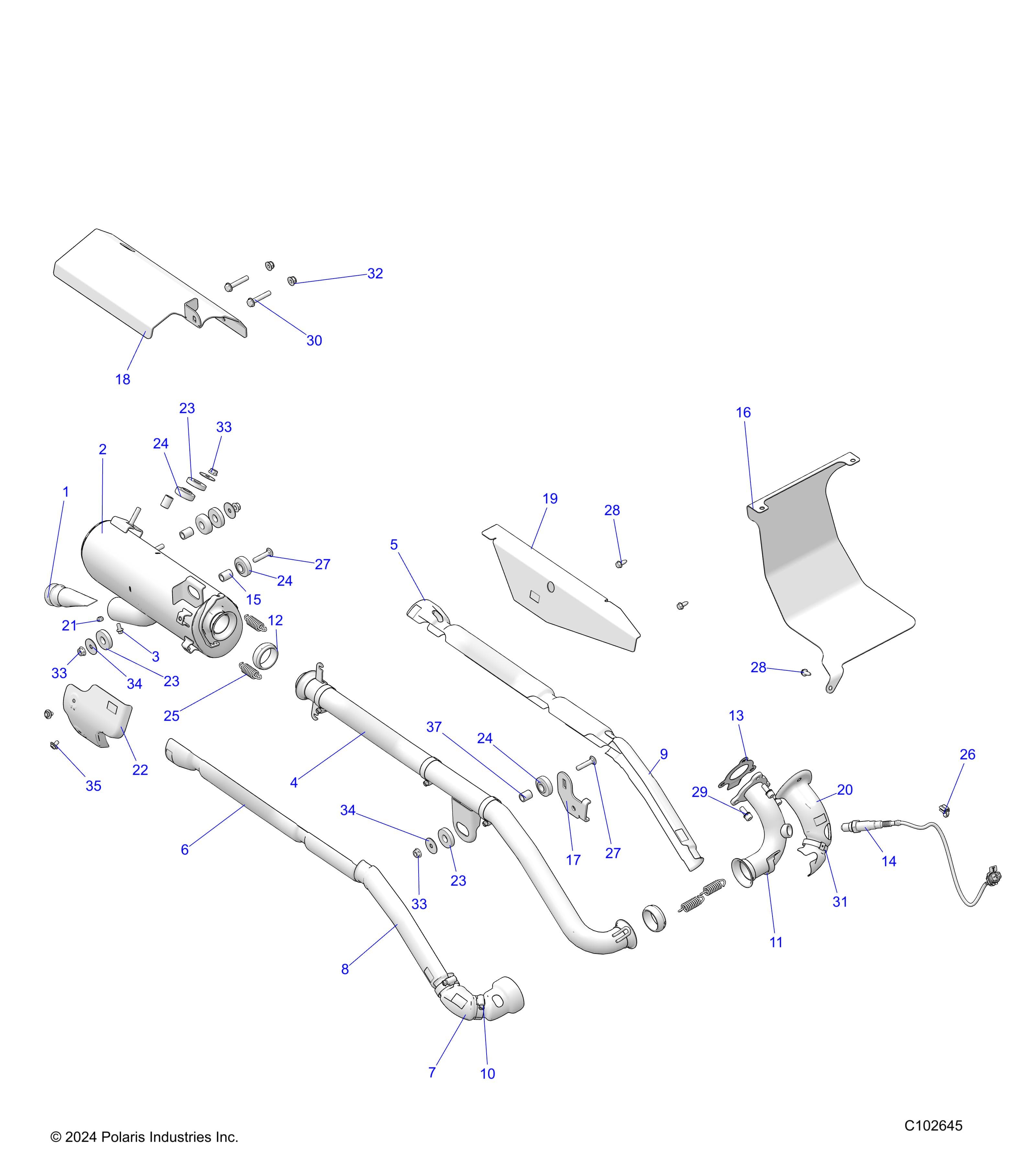

Schematic diagram
Polaris•Schematic assembly
ENGINE, EXHAUST - A26SKE57A1 (C102645)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253203
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1263571 | WELD-SPARK ARRESTOR,1IN | 1 | $59.99 | In stock | |
| 2 | 1263823 | WELD-SILENCER,570,CAT | 1 | $459.99 | In stock | |
| 3 | 7517257 | SCREW-HXFL-M6X1.0X12 10.9 ZPC | 1 | Price TBD | Out of stock | |
| 4 | 1263315 | ASM-EXHAUST PIPE,570 EFI,SS [INCL. 4-10] | 1 | $719.99 | In stock | |
| 5 | 5267238 | SHIELD-HEAT,EXHAUST,REAR | 1 | $89.99 | In stock | |
| 6 | 5267239 | SHIELD-HEAT,EXHAUST,REAR | 1 | $89.99 | In stock | |
| 7 | 5267240 | SHIELD-HEAT,EXHAUST,MID | 1 | $79.99 | In stock | |
| 8 | 5267284 | SHIELD-HEAT,EXHAUST,MID | 1 | $39.99 | In stock | |
| 9 | 5267368 | SHIELD-HEAT,EXHAUST MID,INNER | 1 | $39.99 | In stock | |
| 10 | 7082359 | CLAMP-HOSE, 2.00-SS | 5 | $16.99 | In stock | |
| 11 | 1263515 | WELD-MANIFOLD,570,O2 | 1 | $159.99 | Out of stock Est. Aug 27, 2026 | |
| 12 | 3610312 | GASKET-DOUBLE SPHERICAL,1.625" | 2 | $11.99 | Out of stock Est. Sep 11, 2026 | |
| 13 | 3610360 | SEAL-EXHAUST,MANIFOLD,570 | 1 | $13.99 | In stock | |
| 14 | 4011853 | SENSOR-LAMBDA,LSF 4.2 | 1 | Price TBD | Out of stock | |
| 15 | 5144284 | BUSHING-EXHAUST,15.87 X 21 | 4 | $7.99 | In stock | |
| 16 | 5262925 | SHIELD-FUEL TANK,FRAME MNT,TRG | 1 | $34.99 | In stock | |
| 17 | 5273917-458 | BRKT-EXHAUST PIPE SUPPORT,BLK | 1 | $14.99 | In stock | |
| 18 | 5276622 | BRACKET-SILENCER,FRAME,OVL,6X6 | 1 | $219.99 | In stock | |
| 19 | 5274786 | SHIELD-HEAT,AIRBOX | 1 | $59.99 | In stock | |
| 20 | 5269130 | SHIELD-HEAT,MANIFOLD,570,O2 | 1 | $59.99 | In stock | |
| 21 | 7547120 | NUT-HEX-M6X1.0 8 SPC | 1 | Price TBD | Out of stock | |
| 22 | 5273538 | SHIELD-DEBRIS,INTL | 1 | $19.99 | In stock | |
| 23 | 5418948 | WSHR-15.4X38.1X7.9 RUBBER | 4 | $4.99 | In stock | |
| 24 | 5418949 | DAMPENER-VIBRATION | 4 | $8.99 | In stock | |
| 25 | 7045211 | SPRING-EXHAUST | 4 | Price TBD | Out of stock | |
| 26 | 7082402 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 27 | 7515316 | BOLT-CARR-5/16-18X1 1/2 GR5-Y | 4 | $2.99 | In stock | |
| 28 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 3 | Price TBD | Out of stock | |
| 29 | 7517555 | SCR-M8X1.25X20,HXSOC-CSSPL-SEM | 3 | $10.99 | In stock | |
| 30 | 7521332-45 | SCR-HXFL-M8X1.25X45 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 31 | 7082132 | CLAMP-45.0DX7W,304SS,OETIKER | 1 | $5.99 | In stock | |
| 32 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 33 | 7547623 | NUT-5/16-18,HX,TCHLCK,FLNG,ZNC | 4 | $3.99 | In stock | |
| 34 | 7555716 | WASHER-.328X1.25X16GA, FL-Y | 4 | Price TBD | Out of stock | |
| 35 | 7520291 | SCR-HHSEMS-M6X1.0X10 A286,LOCK | 2 | Price TBD | Out of stock |
