DRIVE TRAIN, MAIN GEARCASE - A26SKE57A1 (101385)
Product Description

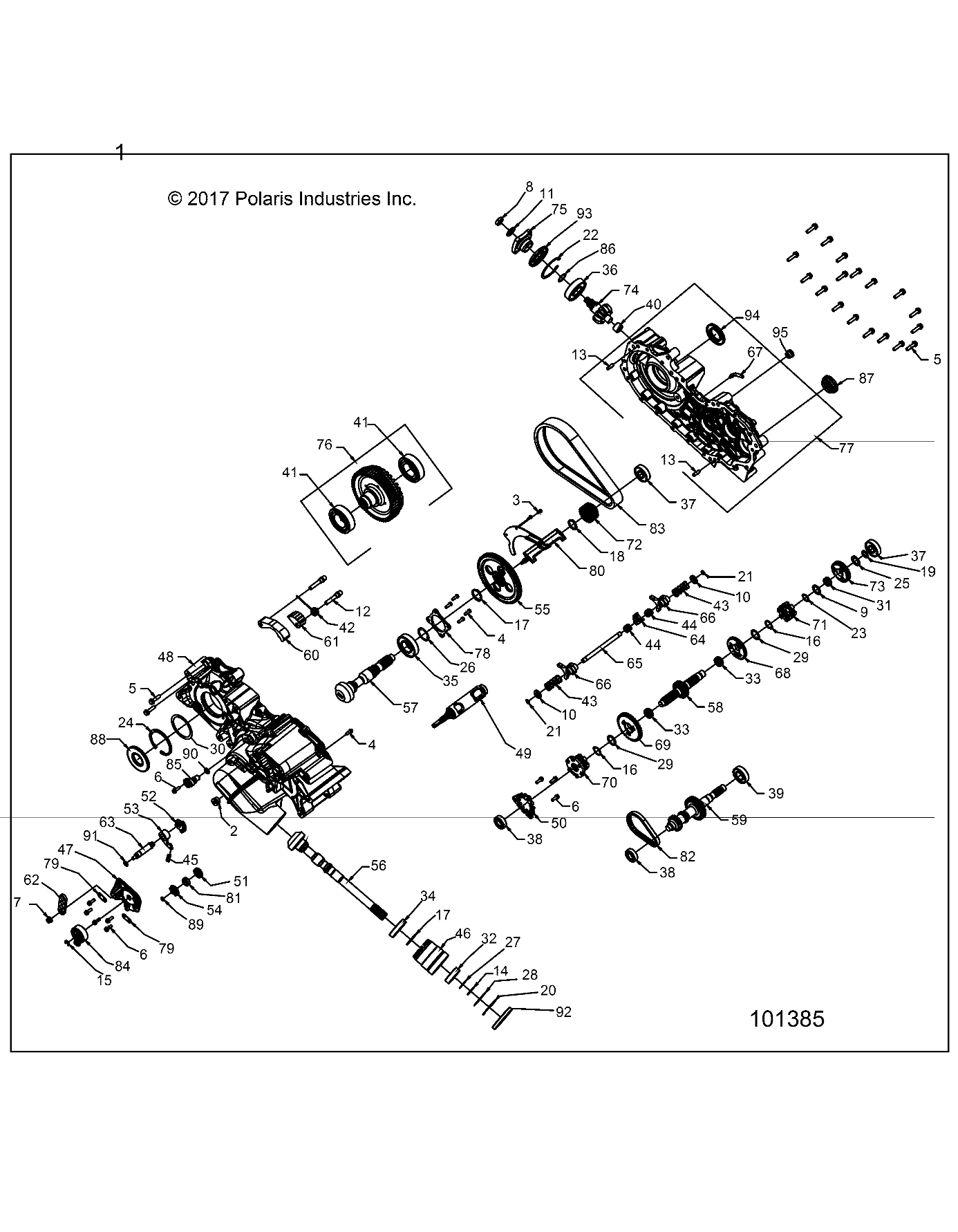

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253178
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 29 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337107 | ASM-TRANSMISSION,P190,6X6 [INCL. ALL] | 1 | $4,399.99 | In stock | |
| 2 | 3234529 | MAGNETIC PLUG, 3/4-16 INTERNAL HEX | 1 | Price TBD | Out of stock | |
| 3 | 3233749 | SCREW, TAPPING TORX, PH 11902 X.50 | 2 | $6.99 | In stock | |
| 4 | 3234086 | SCREW, TORX TRUSS HD 43834 X 0.75 | 5 | $6.99 | In stock | |
| 5 | 3234114 | SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25 | 20 | $8.99 | In stock | |
| 6 | 3234247 | SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75 | 9 | $6.99 | In stock | |
| 7 | 3233961 | NUT, LOCK, HEX FLANGE NYLON 5/16-24 | 1 | $3.49 | Out of stock Est. Aug 21, 2026 | |
| 8 | 3234776 | NUT, HEX M16 X 2.0 | 1 | $12.99 | In stock | |
| 9 | 3233855 | WASHER, 1.250 X 0.876 X 0.05 | 1 | $12.99 | In stock | |
| 10 | 3234091 | WASHER-CUP | 2 | Price TBD | Out of stock | |
| 11 | 3234777 | CUP WASHER, LOCKING 17 X 30 | 1 | $54.99 | In stock | |
| 12 | 3233432 | PIN, TENSIONER | 2 | $8.99 | In stock | |
| 13 | 3234244 | PIN, DOWEL 5/16 X 1.0 | 2 | $8.99 | In stock | |
| 14 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | Price TBD | Out of stock | |
| 15 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 16 | 3233306 | RING, RETAINING BASIC EXT 0.938 | 2 | $5.99 | In stock | |
| 17 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 2 | Price TBD | Out of stock | |
| 18 | 3233699 | RING RETAINING, IRR 7200-118 | 1 | $8.99 | In stock | |
| 19 | 3234067 | RING, RETAINING BASIC, EXTERNAL, .787 SHAFT | 1 | $9.99 | In stock | |
| 20 | 3234269 | RING,RETAINING BASIC,INTERNAL 2.047 | 1 | Price TBD | Out of stock | |
| 21 | 3234090 | RING,RETAINING BASIC,EXTERNAL 0.428 | 2 | Price TBD | Out of stock | |
| 22 | 3234158 | RING, RETAINING BEVELED INTERNAL 2.835 | 1 | $29.99 | In stock | |
| 23 | 3234336 | RING, RETAINING, BASIC EXTERNAL DIA 0.84 | 1 | $6.99 | In stock | |
| 24 | 3235849 | RING, RETAINING INTERNAL DHO-85 STZD | 1 | $39.99 | In stock | |
| 25 | 3233176 | WASHER THRUST, 1.270 X 0.793 X 0.065 | 1 | $11.99 | In stock | |
| 26 | 3234271 | SHIM, 1.700 X 1.385 | 1 | $29.99 | In stock | |
| 27 | 3234272 | SHIM, 1.180 OD X 0.995 ID | 1 | Price TBD | Out of stock | |
| 28 | 3234273 | SHIM, 2.040 OD X 1.63 ID | 1 | Price TBD | Out of stock | |
| 29 | 3234248 | WASHER, THRUST 1.300 X 0.995 X 0.065 | 2 | $11.99 | In stock | |
| 30 | 3235850 | SHIM 2.750 X 3.3125 X .050 | 1 | $134.99 | In stock | |
| 31 | 3233009 | BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10 | 1 | $49.99 | In stock | |
| 32 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 1 | Price TBD | Out of stock | |
| 33 | 3233103 | BEARING, NEEDLE 25 X 29 X 10 | 2 | $39.99 | In stock | |
| 34 | 3233265 | BEARING-BALL 6007 C3 35 X 62 X 14 | 1 | $49.99 | In stock | |
| 35 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 1 | Price TBD | Out of stock | |
| 36 | 3233714 | BEARING, BALL 6306 STD 30X72X19 | 1 | $39.99 | In stock | |
| 37 | 3234651 | BEARING BALL,6304STD 20X52X15 | 2 | $19.99 | Out of stock Est. Sep 11, 2026 | |
| 38 | 3234274 | BEARING, BALL 6203 17 X 40 X 12 | 2 | $34.99 | In stock | |
| 39 | 3236118 | BEARING, BALL 62/32 | 1 | Price TBD | Out of stock | |
| 40 | 3234799 | BEARING, NEEDLE, DRAWN SHELL .75 X 1.0 X 0.625 | 1 | $19.99 | In stock | |
| 41 | 3235851 | BEARING, BALL DOUBLE ROW 45 X 85 X 23 4209 C3 | 2 | $119.99 | In stock | |
| 42 | 3233431 | SPRING, TORSION | 1 | $29.99 | In stock | |
| 43 | 3234078 | SPRING,COMPRESSION, .92 O.D. X 2.000 | 2 | Price TBD | Out of stock | |
| 44 | 3234089 | SPRING, COMPRESSION, 0.46 I.D. X 0.73 | 2 | Price TBD | Out of stock | |
| 45 | 3234578 | SPRING, COMPRESSION 0.36 O.D. X 1.125 | 1 | Price TBD | Out of stock | |
| 46 | 3234278 | TUBE, SNORKEL MACHINED | 1 | Price TBD | Out of stock | |
| 47 | 3234188 | COVER, SECTOR GEARS, MACHINED | 1 | $139.99 | In stock | |
| 48 | 3235852 | CASE, RH MACH | 1 | $724.99 | In stock | |
| 49 | 3234360 | DRUM, SHIFT MACH | 1 | $224.99 | In stock | |
| 50 | 3233915 | PLATE, PARK, 12 FACE | 1 | $49.99 | In stock | |
| 51 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 52 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 53 | 3233829 | PAWL, DETENT | 1 | $44.99 | In stock | |
| 54 | 3233909 | STAR, DETENT | 1 | $34.99 | In stock | |
| 55 | 3234062 | GEAR OUTPUT 91T, HRC | 1 | $329.99 | Out of stock Est. Aug 19, 2026 | |
| 56 | 3234262 | GEAR, 13T SNORKEL, | 1 | $409.99 | In stock | |
| 57 | 3234263 | PINION, CENTER DRIVE, 13T | 1 | $549.99 | In stock | |
| 58 | 3234280 | SHAFT, REVERSE, 26T | 1 | $324.99 | In stock | |
| 59 | 3236761 | SHAFT, INPUT - 43T/15T | 1 | $304.99 | In stock | |
| 60 | 3233433 | SHOE, CHAIN TENSIONER | 1 | $39.99 | In stock | |
| 61 | 3233434 | CAM, CHAIN, TENSIONER | 1 | $16.99 | In stock | |
| 62 | 3234584 | BELLCRANK, .510 HOLE, 92 ~ | 1 | $34.99 | In stock | |
| 63 | 3233831 | SHAFT, SHIFT | 1 | $74.99 | In stock | |
| 64 | 3234073 | COLLAR-SHIFT | 1 | Price TBD | Out of stock | |
| 65 | 3234079 | RAIL, SHIFT SHAFT | 1 | Price TBD | Out of stock | |
| 66 | 3234077 | FORK, SHIFT | 2 | $224.99 | In stock | |
| 67 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 68 | 3234290 | SPROCKET, 38T, 6 FACE | 1 | $189.99 | In stock | |
| 69 | 3234291 | GEAR, 33T, 6 FACE | 1 | $214.99 | In stock | |
| 70 | 3234257 | ENGAGEMENT DOG, 6-FACE L/P | 1 | $189.99 | In stock | |
| 71 | 3234258 | DOG, ENGAGEMENT, 6 FACE | 1 | $119.99 | In stock | |
| 72 | 3234441 | SPROCKET, 19T, 1.25" | 1 | $169.99 | In stock | |
| 73 | 3236033 | GEAR, HELICAL 44T | 1 | $209.99 | In stock | |
| 74 | 3235855 | SHAFT-PINION,10T,STRAIGHTBEVEL | 1 | $539.99 | In stock | |
| 75 | 3235925 | COUPLER | 1 | $134.99 | In stock | |
| 76 | 3235858 | SUBASSEMBLY, SHAFT - 59T SPROCKET 31T BEVEL | 1 | $669.99 | In stock | |
| 77 | 3239473 | SUBASSEMBLY, LH COVER PDS APACHE 6X6 | 1 | $774.99 | In stock | |
| 78 | 3234063 | COVER, BEARING, CENTER DRIVE | 1 | $39.99 | In stock | |
| 79 | 3235350 | BRACKET, WIRE HARNESS | 2 | Price TBD | Out of stock | |
| 80 | 3239943 | DEFLECTOR-OIL | 1 | $34.99 | In stock | |
| 81 | 3235243 | Disc, Lockout | 1 | $11.99 | In stock | |
| 82 | 3234264 | SILENT CHAIN, .25P X 0.4 W X 50L | 1 | $124.99 | In stock | |
| 83 | 3234442 | CHAIN SILENT 3/8" X 1.25" X 86P | 1 | $429.99 | In stock | |
| 84 | 7661999 | SWITCH, ROTARY , 2 PIN RESISTIVE | 1 | $144.99 | In stock | |
| 85 | 4082135 | SENSOR-SPEED | 1 | Price TBD | Out of stock | |
| 86 | 3234785 | O-RING 2-023 NITRILE | 1 | $11.99 | In stock | |
| 87 | 3236141 | SEAL, TRIPLE LIP 32 X 49 X 8 VITON | 1 | Price TBD | Out of stock | |
| 88 | 3235856 | SEAL, TRIPLE LIP 40 X 85 X 7 | 1 | $49.99 | In stock | |
| 89 | 3233076 | O-RING, 2-012 | 1 | $7.99 | In stock | |
| 90 | 3236279 | O-RING, -016 VITON | 1 | Price TBD | Out of stock | |
| 91 | 3233869 | O-RING, -014 | 1 | $6.99 | In stock | |
| 92 | 3234113 | SEAL, TRIPLE LIP VITON 25 X 80 X 10 | 1 | Price TBD | Out of stock | |
| 93 | 3235924 | SEAL, TRIPLE LIP, 40 X 72 X 7 | 1 | $49.99 | In stock | |
| 94 | 3234300 | SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315 | 1 | $39.99 | In stock | |
| 95 | 3233794 | PLUG, 3/4-16, 41775 INTERNAL HEX | 1 | $18.99 | In stock |
