Polaris•Schematic assembly

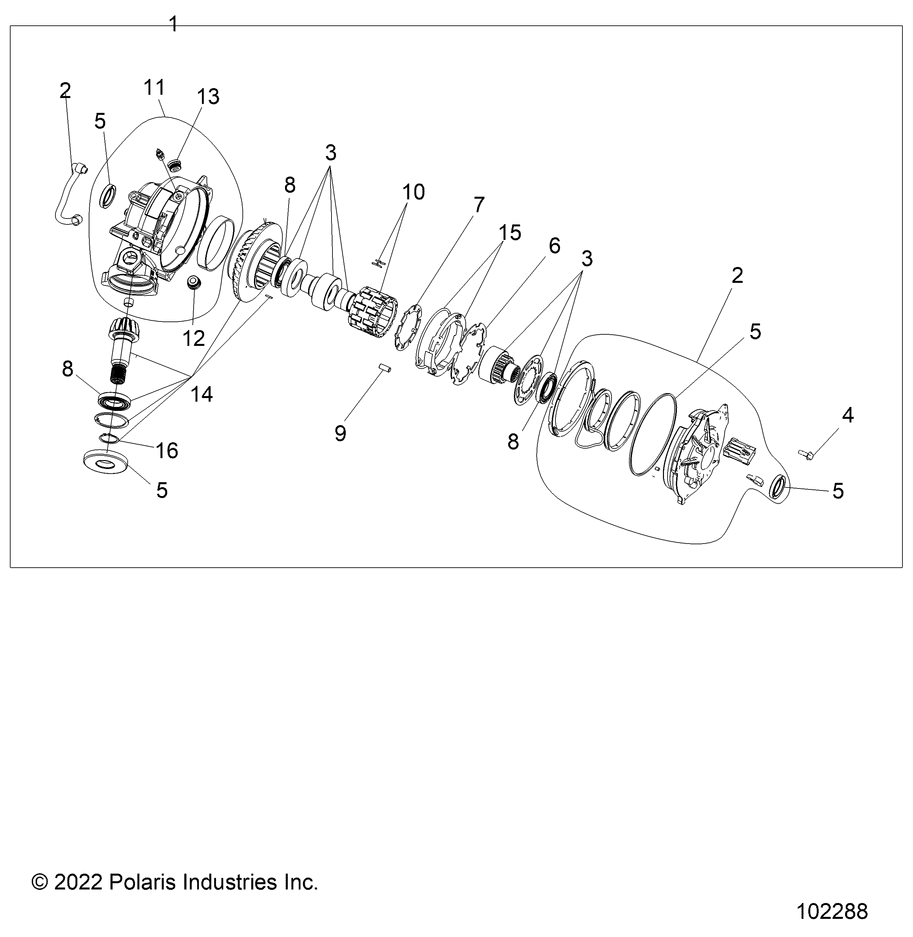

DRIVE TRAIN, FRONT GEARCASE - A26SKE57A1 (102288)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253174
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337138 | ASM., GEARCASE, FRONT, 12 POCKET [INCL. ALL][TO 11/20/2025] | 1 | $1,909.99 | In stock | |
| 1 | 1337454 | ASM-GEARCASE,FRT,12 PKT,TR,ADC [INCL. ALL][FRM 11/20/2025][TO 4/30/2026] | 1 | $2,099.99 | In stock | |
| 1 | 1337621 | ASM-GEARCASE,FRT,12 PKT,TR,ADC [INCL. ALL][FRM 4/30/2026] | 1 | Price TBD | Out of stock | |
| 2 | 3236664 | ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING] | 1 | $649.99 | In stock | |
| 3 | 3236673 | KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE] | 1 | $589.99 | In stock | |
| 4 | 3235469 | COVER-FASTENERS [INCL. SCREWS] | 1 | $16.99 | In stock | |
| 5 | 3236669 | KIT, SEAL REPAIR [INCL. ALL SEALS] | 1 | $94.99 | In stock | |
| 6 | 3235485 | PLATE, 4WD, ARMATURE | 1 | Price TBD | Out of stock | |
| 7 | 3235626 | ARMATURE PLATE, BACK DRIVE | 1 | $124.99 | In stock | |
| 8 | 3234390 | BEARING | 3 | $44.99 | In stock | |
| 9 | 3235624 | K-CLUTCH ROLLS [INCL. COMPLETE SET OF ROLLERS] | 1 | Price TBD | Out of stock | |
| 10 | 3235625 | ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS] | 1 | $214.99 | In stock | |
| 11 | 3236678 | ASM., GEARCASE [TO 11/20/2025][INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL] | 1 | $529.99 | In stock | |
| 11 | 3239770 | ASM., GEARCASE [FRM 11/20/2025][INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL] | 1 | $529.99 | In stock | |
| 12 | 3234412 | ASM., DRAIN PLUG, MAGNETIC | 1 | $54.99 | In stock | |
| 13 | 3234414 | PLUG, OIL FILL | 1 | Price TBD | Out of stock | |
| 14 | 3239540 | ASM-GEAR HOUSING & PINION GEAR [INCL RETAINING RING][TO 11/20/2025] | 1 | $1,099.99 | In stock | |
| 14 | 3239771 | ASM-GEAR HOUSING & PINION GEAR [INCL RETAINING RING][FRM 11/20/2025] | 1 | $1,079.99 | In stock | |
| 15 | 3235712 | KIT-TORSION,SPRING AND RETAINER | 1 | Price TBD | Out of stock | |
| 16 | ------- | RING, RETAINING, EXTERNAL | 1 | Price TBD | Out of stock |
