Polaris•Schematic assembly

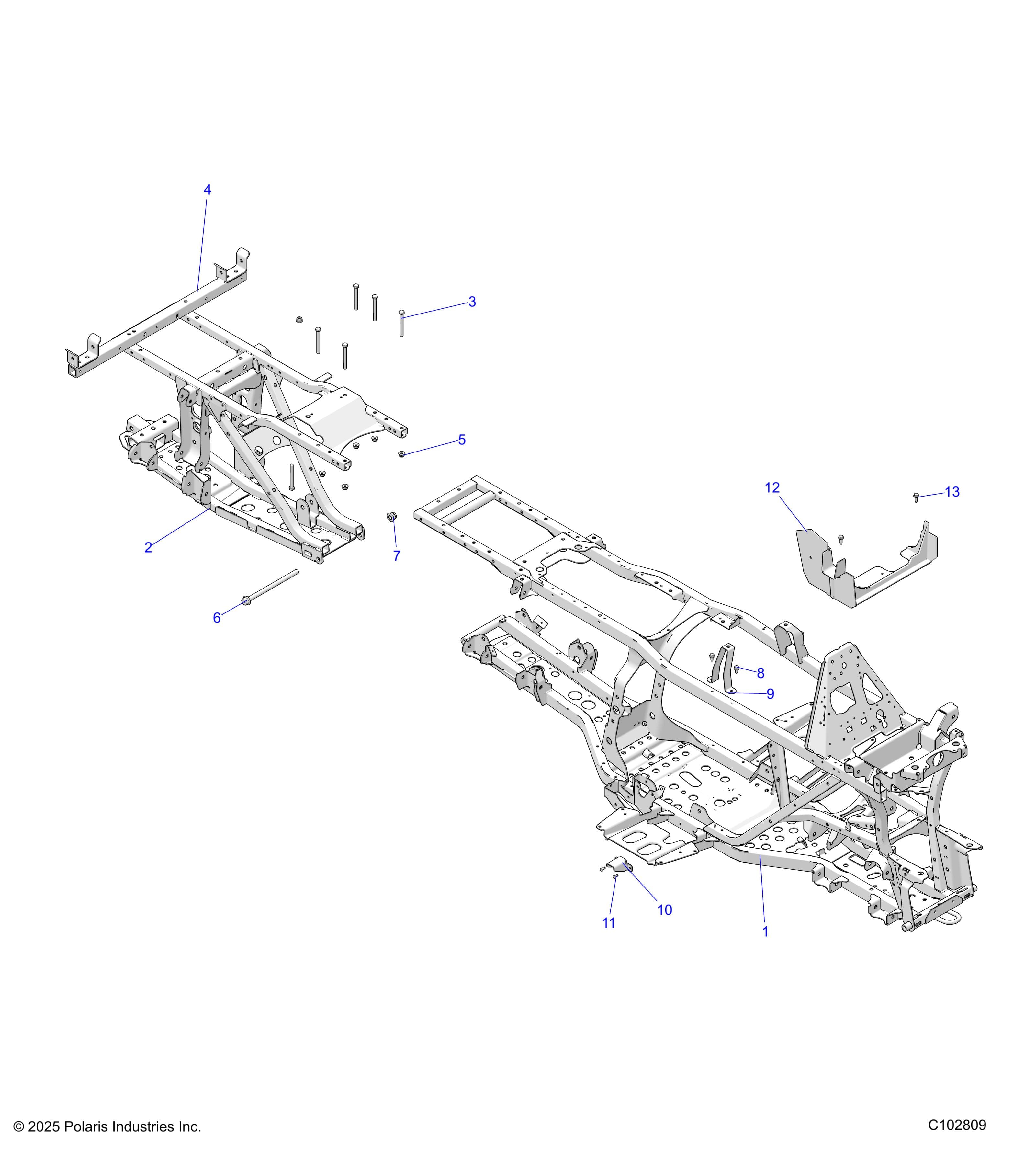

CHASSIS, FRAME - A26SKE57A1 (C102809)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253169
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029694-458 | WELD-MAIN FRAME,6X6,SP,M.BLK | 1 | $1,824.99 | In stock | |
| 2 | 1027609-458 | WELD-FRAME,REAR,6X6,M.BLK | 1 | $699.99 | In stock | |
| 3 | 7521332-75 | SCR-HXFL-M8X1.25X75 10.9 ZFB | 6 | $1.49 | In stock | |
| 4 | 1027682-329 | WELD-BOX,FRAME,PIVOT,E-COAT | 1 | $164.99 | In stock | |
| 5 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 6 | Price TBD | Out of stock | |
| 6 | 7521334-195 | SCR-HXFL-M12X1.75X195 10.9 ZFB | 1 | $9.99 | In stock | |
| 7 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 1 | Price TBD | Out of stock | |
| 8 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 9 | 5274276-458 | BRKT-SUPPORT,FUEL TANK,RH,M.BK | 1 | $34.99 | In stock | |
| 10 | 5274263-458 | BRKT-BRK,SWITCH,PROTECTOR,BLK | 1 | $15.99 | In stock | |
| 11 | 7621432 | RIVET-POP 3/16(.126-.250)-ST-B | 2 | Price TBD | Out of stock | |
| 12 | 5465254-070 | COVER-CVT,SPLASH,SHIELD,SP,BLK | 1 | $34.99 | In stock | |
| 13 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 3 | Price TBD | Out of stock |
