Polaris•Schematic assembly

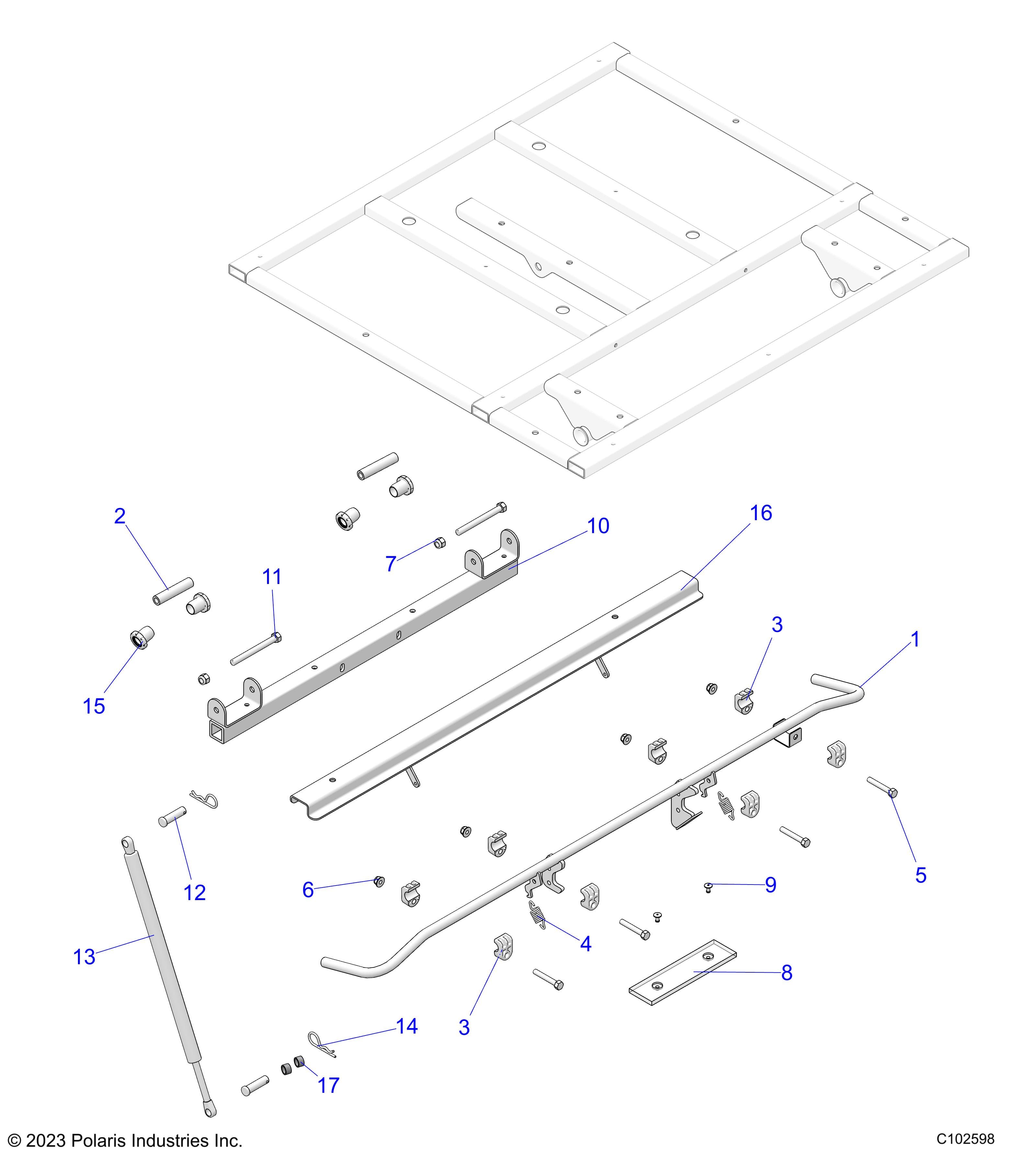

BODY, DUMP BOX LEVER and SHOCK MOUNTING - A26SKE57A1 (C102598)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253150
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1016753-458 | WELD-BOX LATCH,M.BLK���������� | 1 | $99.99 | In stock | |
| 2 | 5020826 | Shaft, A-Arm., Short | 2 | $14.99 | In stock | |
| 3 | 5434226 | BUSHING-BOX,LATCH | 8 | Price TBD | Out of stock | |
| 4 | 7041687 | SPRING-EXHAUST | 2 | Price TBD | Out of stock | |
| 5 | 7515319 | Bolt, Hex | 4 | $5.99 | In stock | |
| 6 | 7542343 | NUT-5/16-18 HX FLG NL-Y | 4 | Price TBD | Out of stock | |
| 7 | 7542439 | NUT-3/8-24(NYLOK)-Y | 2 | $1.49 | In stock | |
| 8 | 5413690 | BUMPER-BOX BASE,6X6 | 1 | $24.99 | In stock | |
| 9 | 7621418 | POP RIVET(50) | 2 | Price TBD | Out of stock | |
| 10 | 1027682-329 | WELD-BOX,FRAME,PIVOT,E-COAT | 1 | $164.99 | In stock | |
| 11 | 7518263 | SCR-3/8-24X4.00 HXCP-GR5-Y | 2 | $4.99 | In stock | |
| 12 | 7661878 | PIN-CLEVIS,1/2 X 1 3/4 | 2 | Price TBD | Out of stock | |
| 13 | 7043232 | SHOCK, DUMP BOX | 1 | $84.99 | In stock | |
| 14 | 7661067 | CLIP-HITCHPIN .148X3 1/16 | 2 | Price TBD | Out of stock | |
| 15 | 5438895 | Bushing, A-Arm., Short, Black | 4 | Price TBD | Out of stock | |
| 16 | 5274787 | SHIELD-HEAT,LATCH,6X6 | 1 | $24.99 | In stock |
