Polaris•Schematic assembly

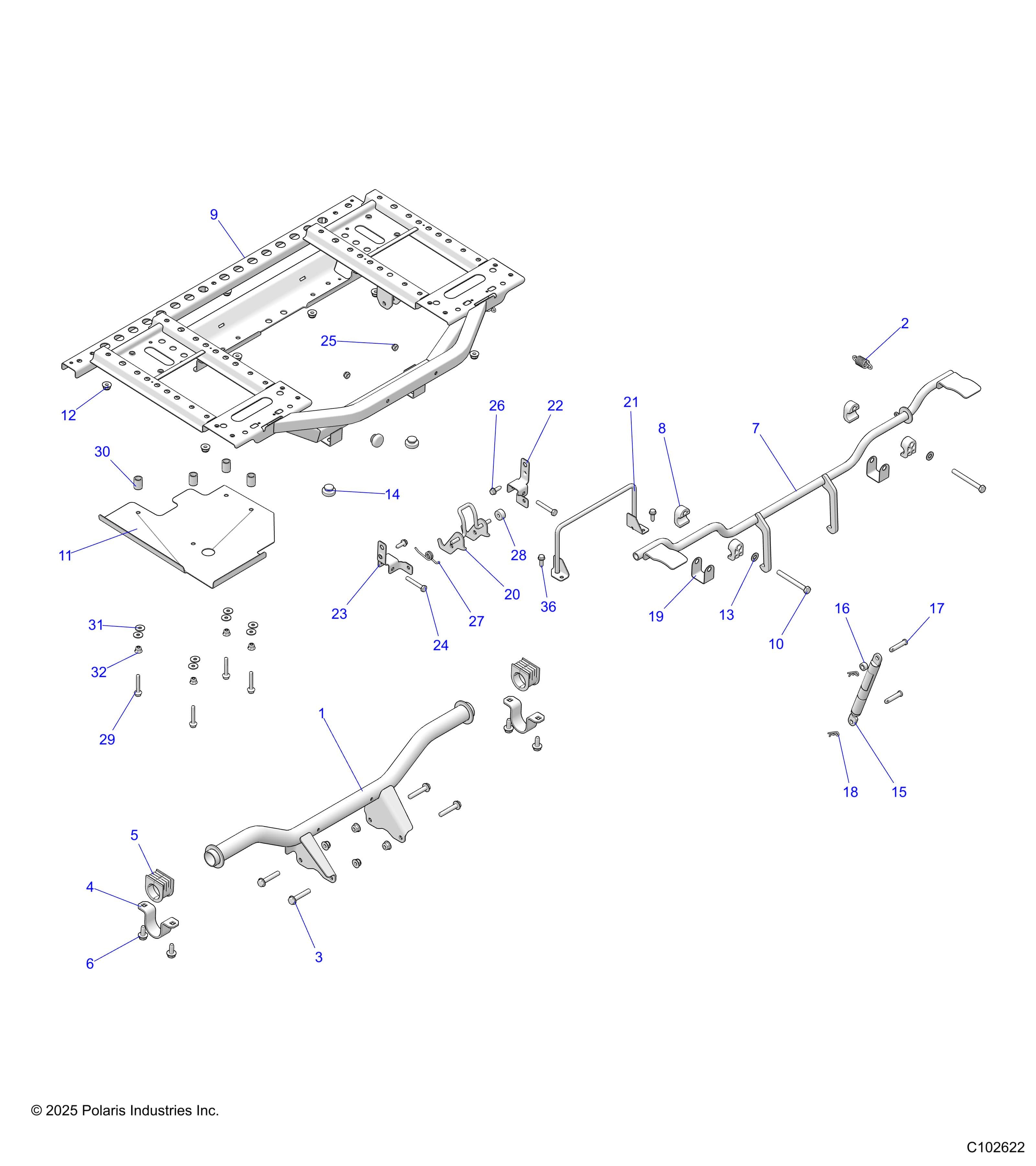

BODY, BOX, REAR FRAME AND PIVOT - A26SWE57AL (C102622)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 X2 EPS Assembly ID: 252975
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 X2 EPS
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029981-329 | WELD-BOX PIVOT,REAR,BLK | 1 | $149.99 | In stock | |
| 2 | 7041687 | SPRING-EXHAUST | 1 | Price TBD | Out of stock | |
| 3 | 7518341 | SCREW, HXFL-5/16-18X0.75 GR5 ZY3 | 4 | $5.99 | In stock | |
| 4 | 5262582 | BRKT-BUSHING STRAP | 2 | $34.99 | In stock | |
| 5 | 5438904 | BUSHING, STEERING, UPPER | 4 | $5.99 | In stock | |
| 6 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 4 | Price TBD | Out of stock | |
| 7 | 1029433-458 | WELD-LATCH,BOX,REAR,M.BLK | 1 | $174.99 | In stock | |
| 8 | 5434226 | BUSHING-BOX,LATCH | 4 | Price TBD | Out of stock | |
| 9 | 1027726-329 | WELD-BOX,FRAME,E-COAT | 1 | $314.99 | In stock | |
| 10 | 7515346 | SCR-5/16-18X3 HX CP GR5-Y | 2 | $6.99 | In stock | |
| 11 | 5275213 | SHIELD-HEAT,CARGO BOX,X2 | 1 | $64.99 | In stock | |
| 12 | 7542343 | NUT-5/16-18 HX FLG NL-Y | 15 | Price TBD | Out of stock | |
| 13 | 7558402 | WASHER-.344X.688X.063 FL-Y | 2 | $0.99 | In stock | |
| 14 | 5412067 | BUMPER-RUBBER | 2 | Price TBD | Out of stock | |
| 15 | 7046193 | SHOCK-DUMP BOX | 1 | $59.99 | In stock | |
| 16 | 7556373 | SPACER-.34 ID X .56 OD X .31 | 1 | $3.99 | In stock | |
| 17 | 7661163 | PIN-CLEVIS 5/16X1 1/2 | 2 | $4.99 | In stock | |
| 18 | 7661644 | PIN-HITCH, 3/32-Y | 2 | Price TBD | Out of stock | |
| 19 | 5259801 | BRACKET, LATCH, BUSHING LINER | 2 | $7.99 | In stock | |
| 20 | 1016335-458 | ROD, PASSENGER SEAT, MATTE BLACK [TO 1/15/2025] | 1 | $89.99 | In stock | |
| 20 | 1031990-458 | WELD-ROD,PASS SEAT,M.BLK [FRM 1/15/2025] | 1 | Price TBD | Out of stock | |
| 21 | 1028593-458 | WELD-LATCH,X2,M.BLK | 1 | $19.99 | In stock | |
| 22 | 5250563 | BRACKET-PIVOT,SEAT,LH | 1 | $12.99 | In stock | |
| 23 | 5250564 | BRACKET-PIVOT,SEAT,RH | 1 | $12.99 | In stock | |
| 24 | 7512130 | SCR-HH-1/4-20X1.75 GR5 ZY3 | 2 | $4.99 | In stock | |
| 25 | 7542122 | NUT-1/4-20-(NYLOK)-Y | 2 | $1.49 | In stock | |
| 26 | 7512232 | SCR-TFHFL-1/4-20X0.75 CHS ZY3 | 4 | $1.49 | In stock | |
| 27 | 7041370 | SPRING, LATCH | 1 | $11.99 | In stock | |
| 28 | 7556091 | SPACER-.26IDX.75ODX.38,NY,BLK | 1 | $4.99 | In stock | |
| 29 | 7521331-40 | SCR-HXFL-M6X1.0X40 10.9 ZFB | 4 | $0.99 | In stock | |
| 30 | 5144284 | BUSHING-EXHAUST,15.87 X 21 | 4 | $7.99 | In stock | |
| 31 | 7558714 | WSHR-FLAT-M6X1.6 LARGE ZTB | 8 | Price TBD | Out of stock | |
| 32 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 4 | Price TBD | Out of stock |
