Polaris•Schematic assembly

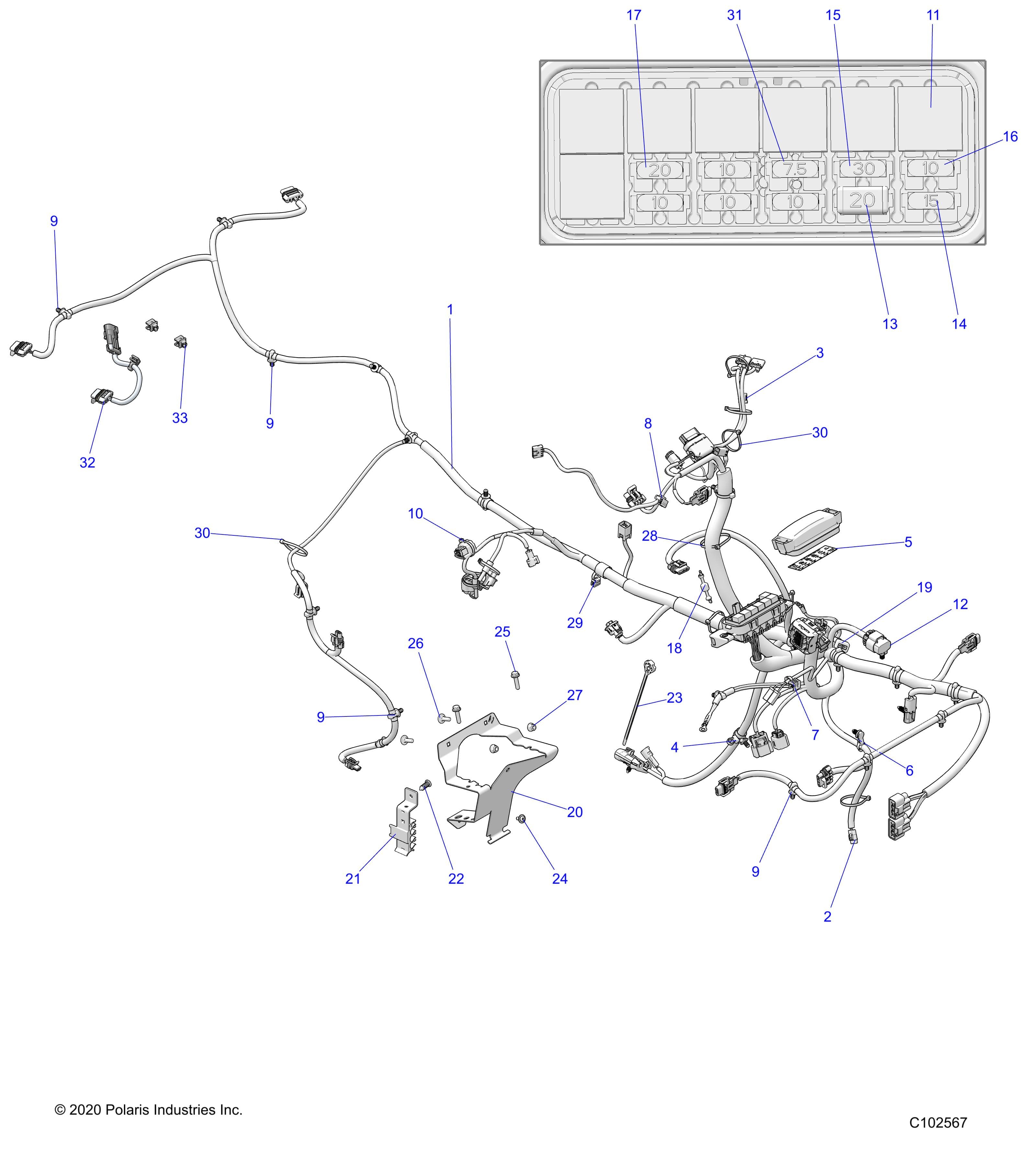

ELECTRICAL, MAIN WIRE HARNESS - A26SHY57AL/AS (C102567)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 EPS TRAIL PACKAGE Assembly ID: 252829
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 EPS TRAIL PACKAGE
Checkout Note
Please note that 26 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 4015011 | COVER- FUSE BOX, 48 WAY | 1 | Price TBD | Out of stock | |
| 1 | 2416302 | HARN-MAIN,SPMN 570,LED,MECH [INCL. 1-19,31] | 1 | $1,349.99 | In stock | |
| 2 | 4014891 | CONNECTOR-CAP, WINCH CONTACTOR | 1 | $10.99 | In stock | |
| 3 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 1 | Price TBD | Out of stock | |
| 4 | 7081033 | CABLE-TIE,7-46MM,DUAL-LOOP | 2 | Price TBD | Out of stock | |
| 5 | 7300335 | LABEL-FUSE BOX | 1 | Price TBD | Out of stock | |
| 6 | 7082406 | CLIP-FIR TREE,12.5MM OFF,90DEG | 1 | Price TBD | Out of stock | |
| 7 | 7082404 | CLIP-EDGE, 3-6MM THICKNESS | 1 | Price TBD | Out of stock | |
| 8 | 7082402 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 9 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 17 | Price TBD | Out of stock | |
| 10 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 2 | Price TBD | Out of stock | |
| 11 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 7 | Price TBD | Out of stock | |
| 12 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 13 | 4011372 | BREAKER-CIRCUIT,20 AMP | 1 | Price TBD | Out of stock | |
| 14 | 4010859 | FUSE-15AMP,MINI BLADE | 2 | Price TBD | Out of stock | |
| 15 | 2434015 | FUSE-MAIN,30 AMP | 1 | Price TBD | Out of stock | |
| 16 | 2434016 | FUSE-IGNITION,10 AMP | 5 | Price TBD | Out of stock | |
| 17 | 2434017 | FUSE-PARK,20 AMP | 1 | Price TBD | Out of stock | |
| 18 | 2411035 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 19 | 2410000 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 20 | 5268539-458 | BRKT-FUSE BLOCK,M.BLK | 1 | $34.99 | In stock | |
| 21 | 5457074 | CLIP-ROUTING,MIDFRAME | 1 | $4.99 | In stock | |
| 22 | 7670101 | CLIP-XMAS TREE, .945 X .228 | 1 | $2.99 | In stock | |
| 23 | 7082649 | CABLE-TIE,M10X1.5 STUD MNT | 1 | $4.99 | In stock | |
| 24 | 7512084 | SCR-10-24X1/2, PHTXTRIRD, SEMS-Y | 1 | Price TBD | Out of stock | |
| 25 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 2 | Price TBD | Out of stock | |
| 26 | 7519249 | SCREW, RH CARRIAGE | 2 | $3.99 | In stock | |
| 27 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 3 | Price TBD | Out of stock | |
| 28 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 1 | Price TBD | Out of stock | |
| 29 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 1 | Price TBD | Out of stock | |
| 30 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 8 | Price TBD | Out of stock | |
| 31 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 1 | Price TBD | Out of stock | |
| 32 | 2417040 | HARN-JUMPER,TAILLIGHT | 1 | $2.99 | In stock | |
| 33 | 7081824 | CLIP-EDGE,DIA5-50MM,OUT-SER | 2 | Price TBD | Out of stock |
