Schematic diagram
Polaris•Schematic assembly

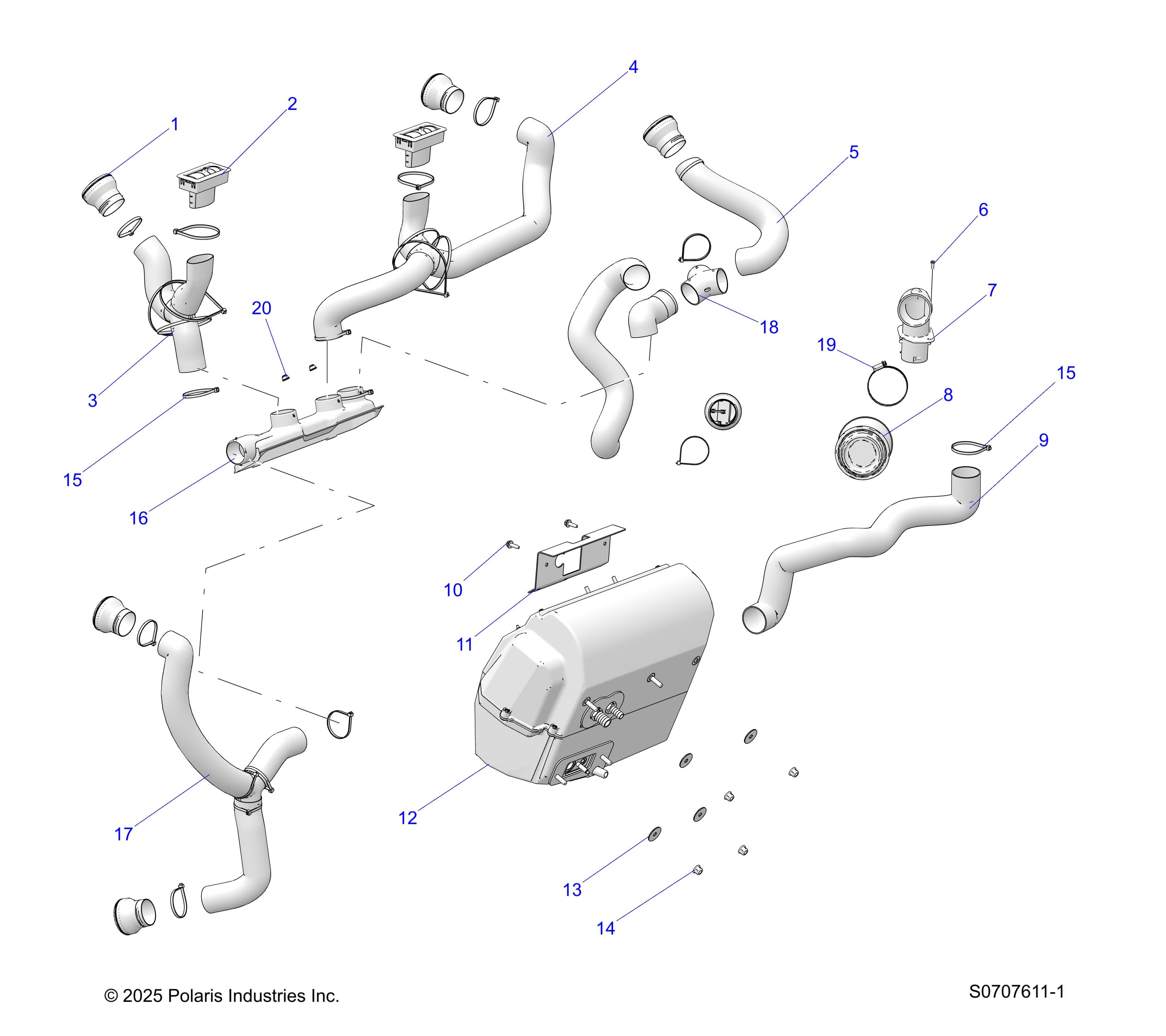

BODY, HVAC DUCTING - TO 10/01/2025
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR Assembly ID: 252687
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5452877 | VENT-ROUND | 6 | $39.99 | In stock | |
| 2 | 5453900 | VENT-DEFROST | 2 | $44.99 | In stock | |
| 3 | 2636687 | ASM-DUCTING, DASH, CENTER, RH [INCLUDES 18 & 3 OF 15] | 1 | $119.99 | In stock | |
| 4 | 2636686 | ASM-DUCTING, DASH, CENTER, LH [INCLUDES 18 & 3 OF 15] | 1 | $119.99 | In stock | |
| 5 | 2639539 | ASM-DUCTING,DASH,LH [INCLUDES 18 & 3 OF 15] | 1 | $139.99 | In stock | |
| 6 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 7 | 5453415 | SUPPORT-FILTER | 1 | $34.99 | In stock | |
| 8 | 1262218 | ASM-FILTER,AIR BOX | 1 | $29.99 | In stock | |
| 9 | 5416208 | HOSE-FRESH AIR | 1 | $44.99 | In stock | |
| 10 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | $1.49 | In stock | |
| 11 | 5263841-329 | BRKT-MOUNT, HVAC UNIT, BLK | 1 | $29.99 | In stock | |
| 12 | 2639607 | ASM-MAIN,HVAC [TO 10/09/2025] | 1 | Price TBD | Out of stock | |
| 12 | 2640566 | ASM-MAIN,HVAC [FROM 10/09/2025] | 1 | $2,599.99 | Out of stock Est. Jul 31, 2026 | |
| 13 | 7558715 | WSHR-FLAT-M8X2.0 LARGE ZTB | 4 | $15.99 | In stock | |
| 14 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | $4.99 | In stock | |
| 15 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 26 | $2.99 | In stock | |
| 16 | 5466734 | MANIFOLD-AIR DIST,HVAC,3S | 1 | Price TBD | Out of stock | |
| 17 | 2636685 | ASM-DUCTING, DASH, RH [INCLUDES 18 & 3 OF 15] | 1 | $169.99 | In stock | |
| 18 | 5452894 | DUCT-Y, HOSE, HTR, XORV | 4 | $69.99 | In stock | |
| 19 | 7080707 | CLAMP-BAND,NARROW 60-80MM | 1 | $3.99 | In stock | |
| 20 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 2 | $1.49 | In stock |
