Schematic diagram
Polaris•Schematic assembly

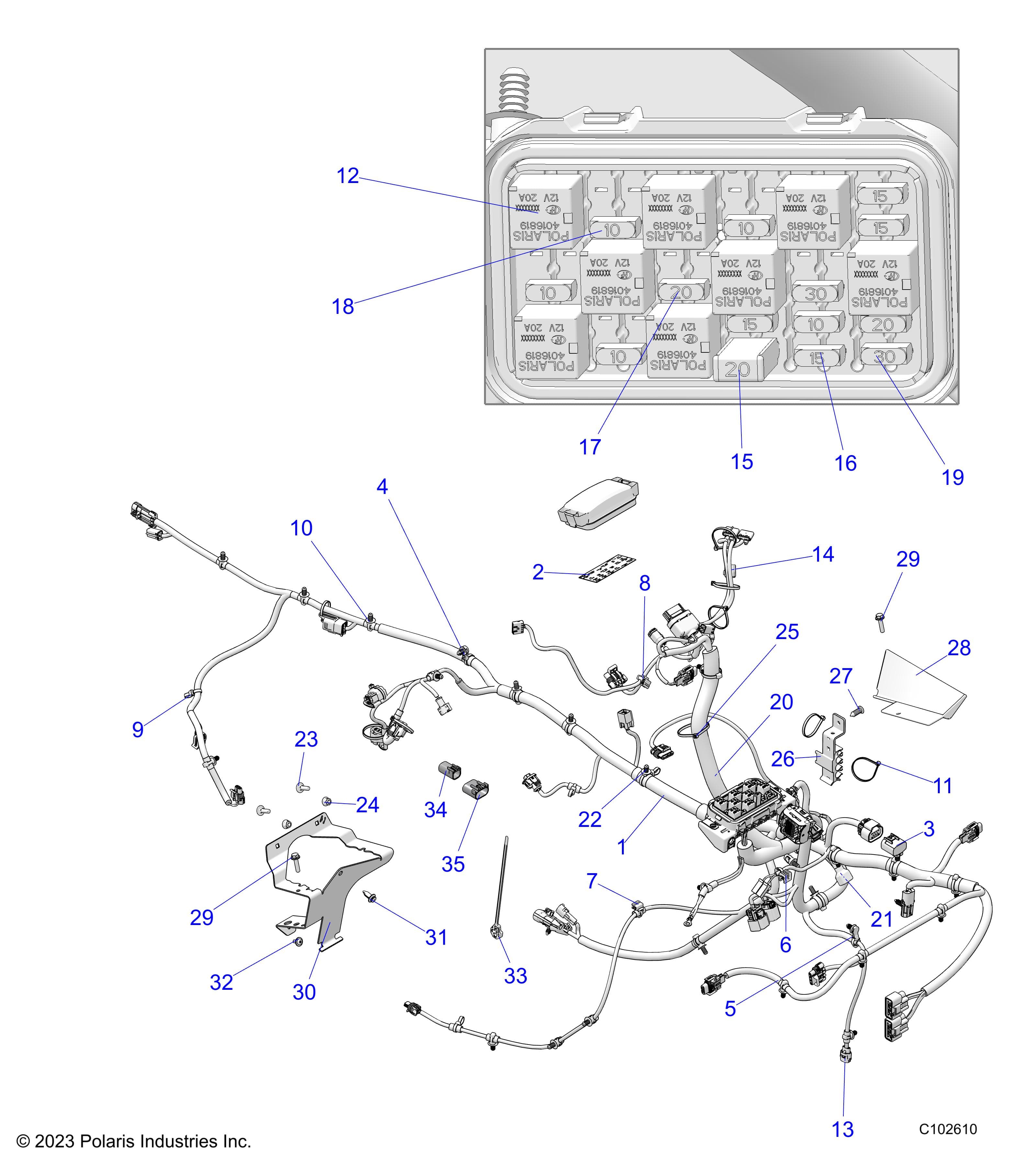

ELECTRICAL, WIRE HARNESS - A26SDA57A7 (C102610)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING 570 Assembly ID: 252644
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING 570
Checkout Note
Please note that 27 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 4014047 | COVER,FUSEBOX,72WAY | 1 | Price TBD | Out of stock | |
| 1 | 2418082 | HARN-MAIN,SPMN,EPS,2UP INCL. 1-25] | 1 | $1,089.99 | Out of stock Est. Jul 24, 2026 | |
| 2 | 7300888 | LABEL - FUSE BOX | 1 | Price TBD | Out of stock | |
| 3 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 4 | 7082458 | CLIP OFFSET 12.5MM FIRTREE(BK) | 1 | Price TBD | Out of stock | |
| 5 | 7082406 | CLIP-FIR TREE,12.5MM OFF,90DEG | 1 | Price TBD | Out of stock | |
| 6 | 7082404 | CLIP-EDGE, 3-6MM THICKNESS | 2 | Price TBD | Out of stock | |
| 7 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 8 | 7082402 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 9 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 3 | Price TBD | Out of stock | |
| 10 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 21 | Price TBD | Out of stock | |
| 11 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 3 | Price TBD | Out of stock | |
| 12 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 8 | Price TBD | Out of stock | |
| 13 | 4014891 | CONNECTOR-CAP, WINCH CONTACTOR | 1 | $10.99 | In stock | |
| 14 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 1 | Price TBD | Out of stock | |
| 15 | 4011372 | BREAKER-CIRCUIT,20 AMP | 1 | Price TBD | Out of stock | |
| 16 | 4010859 | FUSE-15AMP,MINI BLADE | 4 | Price TBD | Out of stock | |
| 17 | 2434017 | FUSE-PARK,20 AMP | 2 | Price TBD | Out of stock | |
| 18 | 2434016 | FUSE-IGNITION,10 AMP | 5 | Price TBD | Out of stock | |
| 19 | 2434015 | FUSE-MAIN,30 AMP | 2 | Price TBD | Out of stock | |
| 20 | 2411035 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 21 | 2410000 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 22 | 7081033 | CABLE-TIE,7-46MM,DUAL-LOOP | 2 | Price TBD | Out of stock | |
| 23 | 7519249 | SCREW, RH CARRIAGE | 2 | $3.99 | In stock | |
| 24 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 3 | Price TBD | Out of stock | |
| 25 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 2 | Price TBD | Out of stock | |
| 26 | 5457074 | CLIP-ROUTING,MIDFRAME | 1 | $4.99 | In stock | |
| 27 | 7670101 | CLIP-XMAS TREE, .945 X .228 | 1 | $2.99 | In stock | |
| 28 | 5465393-070 | DIVERTER,WTR SHLD,P-190X,BLK | 1 | $12.99 | In stock | |
| 29 | 7518535 | SCR-TXPHM6X1.0X25 8.8 RIE | 2 | Price TBD | Out of stock | |
| 30 | 5268539-458 | BRKT-FUSE BLOCK,M.BLK | 1 | $34.99 | In stock | |
| 31 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 1 | Price TBD | Out of stock | |
| 32 | 7512084 | SCR-10-24X1/2, PHTXTRIRD, SEMS-Y | 1 | Price TBD | Out of stock | |
| 33 | 7082649 | CABLE-TIE,M10X1.5 STUD MNT | 1 | $4.99 | In stock | |
| 34 | 4014235 | CONNECTOR, CAP, EPS, SIGNAL | 1 | $9.99 | In stock | |
| 35 | 4014236 | CONNECTOR, CAP, EPS POWER | 1 | $11.99 | In stock |
