Polaris•Schematic assembly

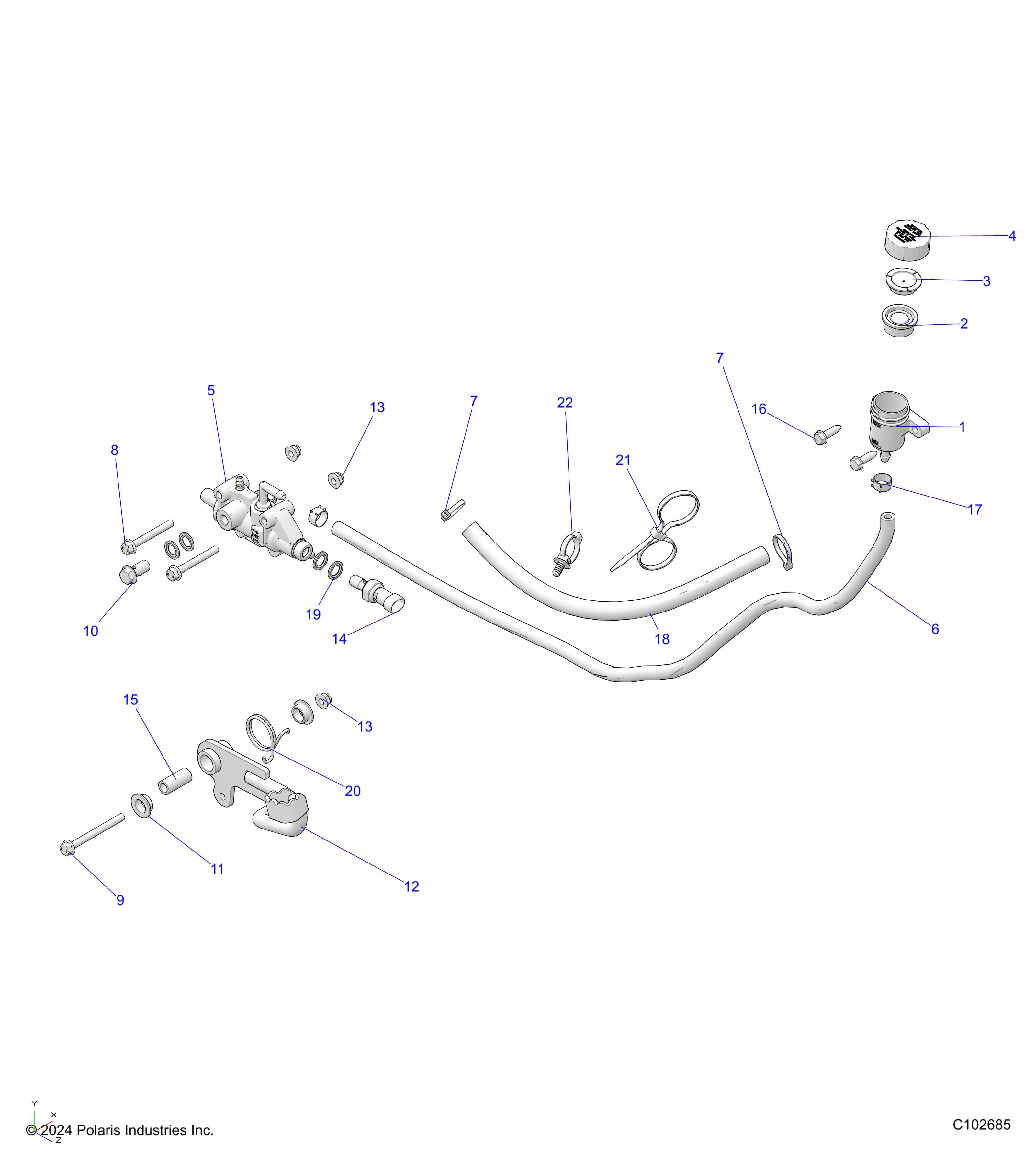

BRAKES, BRAKE PEDAL and MASTER CYLINDER - A26SEZ57AB/BB (C102685)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 EPS PREM 40th Assembly ID: 252447
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 EPS PREM 40th
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1911224 | ASM-RESERVOIR,BRAKE,TALL,2-EAR [INCL. 2-4] | 1 | $44.99 | In stock | |
| 1 | 5437040 | CUP-RESERVOIR,BRAKE | 1 | $8.99 | In stock | |
| 2 | 5413262 | DIAPHRAGM, RESERVOIR, BRAKE | 1 | $5.99 | In stock | |
| 3 | 5437041 | RING, RESERVOIR, BRAKE | 1 | $6.99 | In stock | |
| 4 | 5437039 | CAP-RESERVOIR,BRAKE | 1 | $6.99 | In stock | |
| 5 | 1913815 | ASM-M/CYL,DIRMC,3/4HO,B/U-RING [INCL. HOSE, CLAMPS] | 1 | $119.99 | In stock | |
| 6 | 1911267-805 | HOSE-RESERVOIR,BRAKE,805MM | 1 | $13.99 | In stock | |
| 7 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 2 | Price TBD | Out of stock | |
| 8 | 7521331-50 | SCR-HXFL-M6X1.0X50 10.9 ZFB | 2 | $2.99 | In stock | |
| 9 | 7520105 | SCREW, M8x50 | 1 | $5.99 | In stock | |
| 10 | 1910958 | BOLT-BANJO, 10MM X 1.25-6G | 1 | Price TBD | Out of stock | |
| 11 | 5433189 | BUSHING, PIVOT, PEDAL | 2 | $4.99 | In stock | |
| 12 | 1914416-458 | WELD-BRAKE,PEDAL,M.BLK | 1 | $104.99 | In stock | |
| 13 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 14 | 4081979 | SWITCH-BRK,M10X1.25,SGL,30-40 [FOR USE WITH FOOT MASTER CYLINDER] | 1 | Price TBD | Out of stock | |
| 15 | 5343053 | TUBE-SPACER | 1 | $6.99 | In stock | |
| 16 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 17 | 7080003 | HOSE CLAMP, RED | 2 | Price TBD | Out of stock | |
| 18 | 8450226-330 | SHEATH-REFLECTSLEEVE,VTR,330MM | 1 | $17.99 | In stock | |
| 19 | 5413212 | SEAL-STAT-0-3/8, 70EP | 4 | Price TBD | Out of stock | |
| 20 | 7041750 | SPRING-TORSION,BRAKE | 1 | $10.99 | In stock | |
| 21 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 1 | Price TBD | Out of stock | |
| 22 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock |
