Schematic diagram

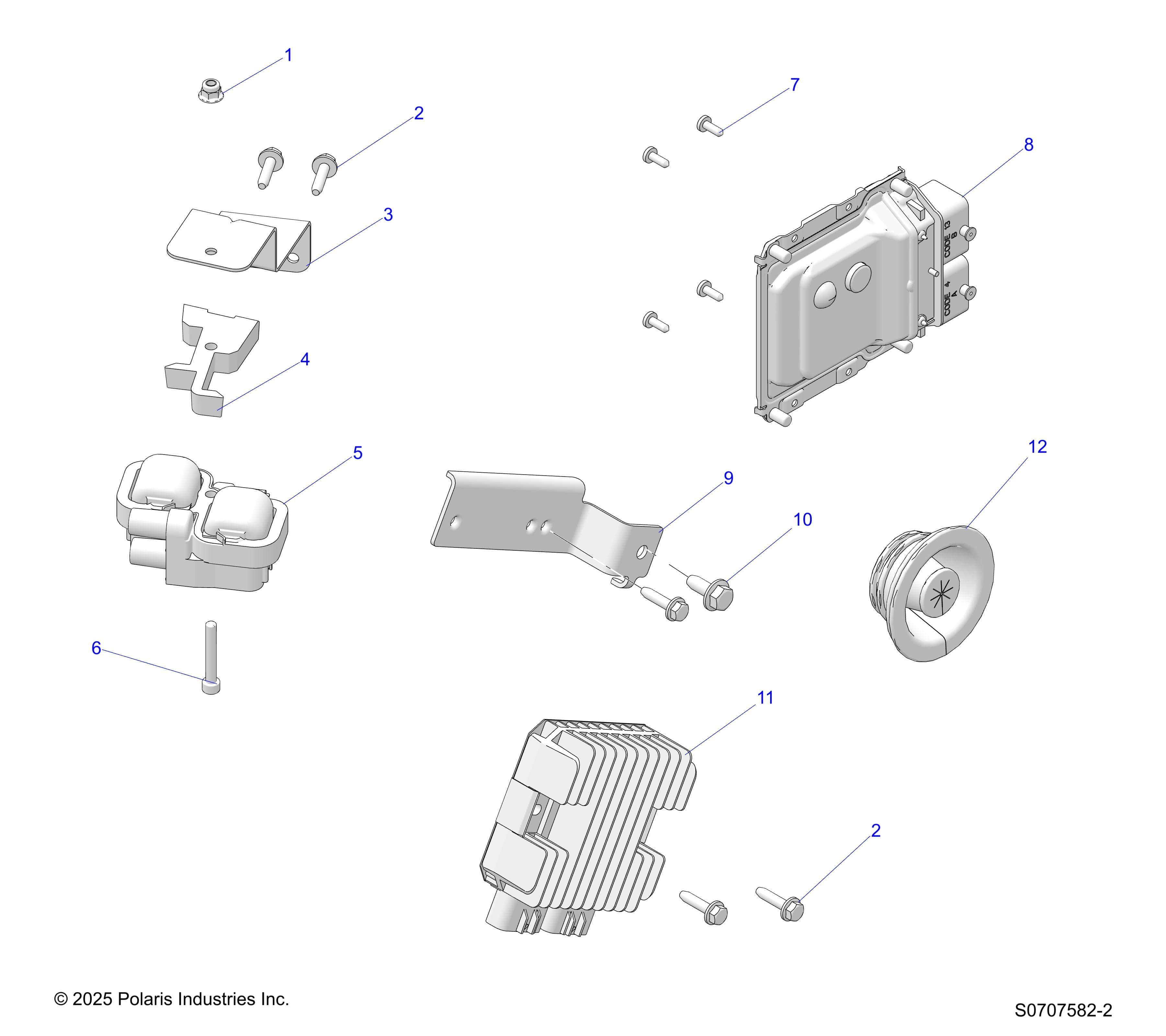

Polaris•Schematic assembly
ELECTRICAL, HARNESS COMPONENTS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 EPS Assembly ID: 250742
Vehicle Compatibility
- 2026 Polaris RANGER 1000 EPS
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 1 | $1.99 | In stock | |
| 2 | 7520715 | SCR-TFHFL-M6X1.0X25,ZY3 | 5 | $4.99 | In stock | |
| 3 | 5263891 | BRKT-COIL MOUNT | 1 | $12.99 | In stock | |
| 4 | 5436577 | SPACER-COIL MOUNT | 1 | $4.99 | In stock | |
| 5 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 6 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | $4.99 | In stock | |
| 7 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 8 | 4014125 | ECM-HARD,ME17,2CYL,250K [DEALER INSTALL REQUIRED] | 1 | $749.99 | Out of stock Est. Jul 24, 2026 | |
| 9 | 5263643 | BRKT-MOUNT,REG | 1 | $49.99 | In stock | |
| 10 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 1 | $2.99 | In stock | |
| 11 | 4016868 | REGULATOR-3PH,50A,SERIES,HISPD | 1 | $164.99 | In stock | |
| 12 | 5417082 | GROMMET-HOOD LINER,SPLIT | 1 | $8.99 | In stock |
