Schematic diagram
Polaris•Schematic assembly

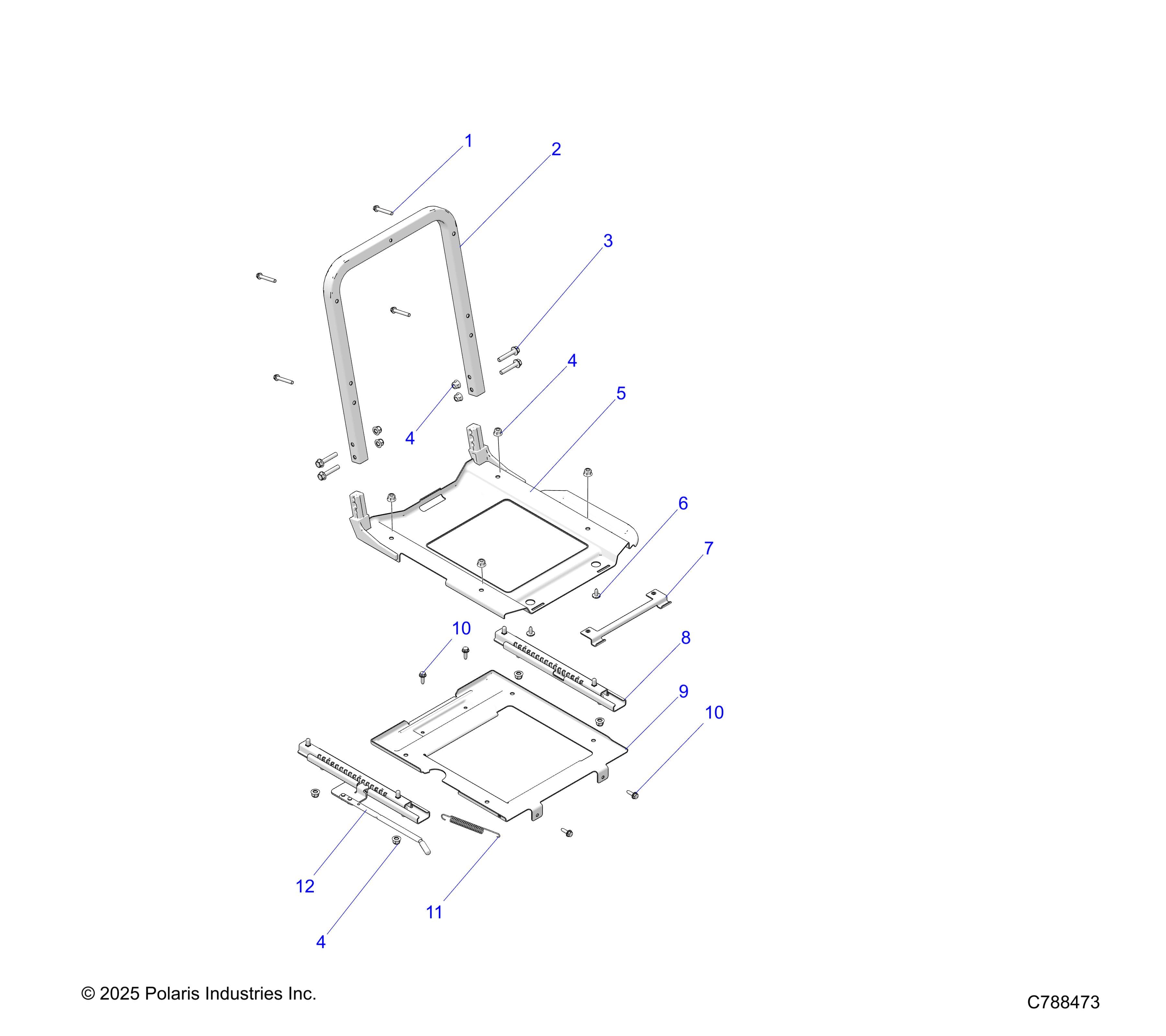

BODY, SLIDER DRIVERS SEAT PREMIUM UNITS - R26TAE99A9/AF/AJ/AK/B9/BF/BJ/BK (C788473)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 EPS Assembly ID: 250723
Vehicle Compatibility
- 2026 Polaris RANGER 1000 EPS
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7512093 | SCR-#14X1-3/4 LG,HI/LO/TAPER-M | 4 | $1.49 | In stock | |
| 2 | 5340280-458 | TUBE-SEAT,BACK,BLK | 1 | $89.99 | In stock | |
| 3 | 7519738 | SCR-HXFL-M8X1.25X45 8.8 ZOD | 4 | $4.99 | In stock | |
| 4 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D [TO 06/15/2026] | 12 | $4.99 | In stock | |
| 4 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D [FROM 06/15/2026] | 4 | $4.99 | In stock | |
| 4 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL [FROM 06/15/2026] | 8 | $2.99 | In stock | |
| 4 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D [TO 06/15/2026] | 12 | $4.99 | In stock | |
| 4 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D [FROM 06/15/2026] | 4 | $4.99 | In stock | |
| 4 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL [FROM 06/15/2026] | 8 | $2.99 | In stock | |
| 4 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D [TO 06/15/2026] | 12 | $4.99 | In stock | |
| 4 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D [FROM 06/15/2026] | 4 | $4.99 | In stock | |
| 4 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL [FROM 06/15/2026] | 8 | $2.99 | In stock | |
| 5 | 2688492 | ASM-SLIDE,SEAT [INCLUDES 4-12] | 1 | $559.99 | In stock | |
| 5 | 1023808-458 | WELD-SLIDE,SEAT,TOP,BLK | 1 | $109.99 | In stock | |
| 6 | 7518936 | SCR-M6X1X16 TR/TX-M | 2 | $4.99 | In stock | |
| 7 | 5265262-458 | BRKT-SEAT HINGE,DOUBLE,BLK | 1 | $34.99 | In stock | |
| 8 | 7082834 | SLIDER-SEAT ADJUSTER,LH,4IN | 1 | $64.99 | In stock | |
| 9 | 5270799-458 | BRKT-SEAT,BTM,BLK | 1 | $79.99 | In stock | |
| 10 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | $1.49 | In stock | |
| 11 | 7082802 | SPRING-SEAT SLIDER | 1 | $8.99 | In stock | |
| 12 | 7082835 | SLIDER-SEAT ADJUSTER,RH,4IN [TO 7/20/2026] | 1 | $64.99 | In stock | |
| 12 | 7083178 | SLIDER-SEAT ADJUSTER,RH,4IN [FROM 7/20/2026] | 1 | Price TBD | Out of stock |
