Polaris•Schematic assembly

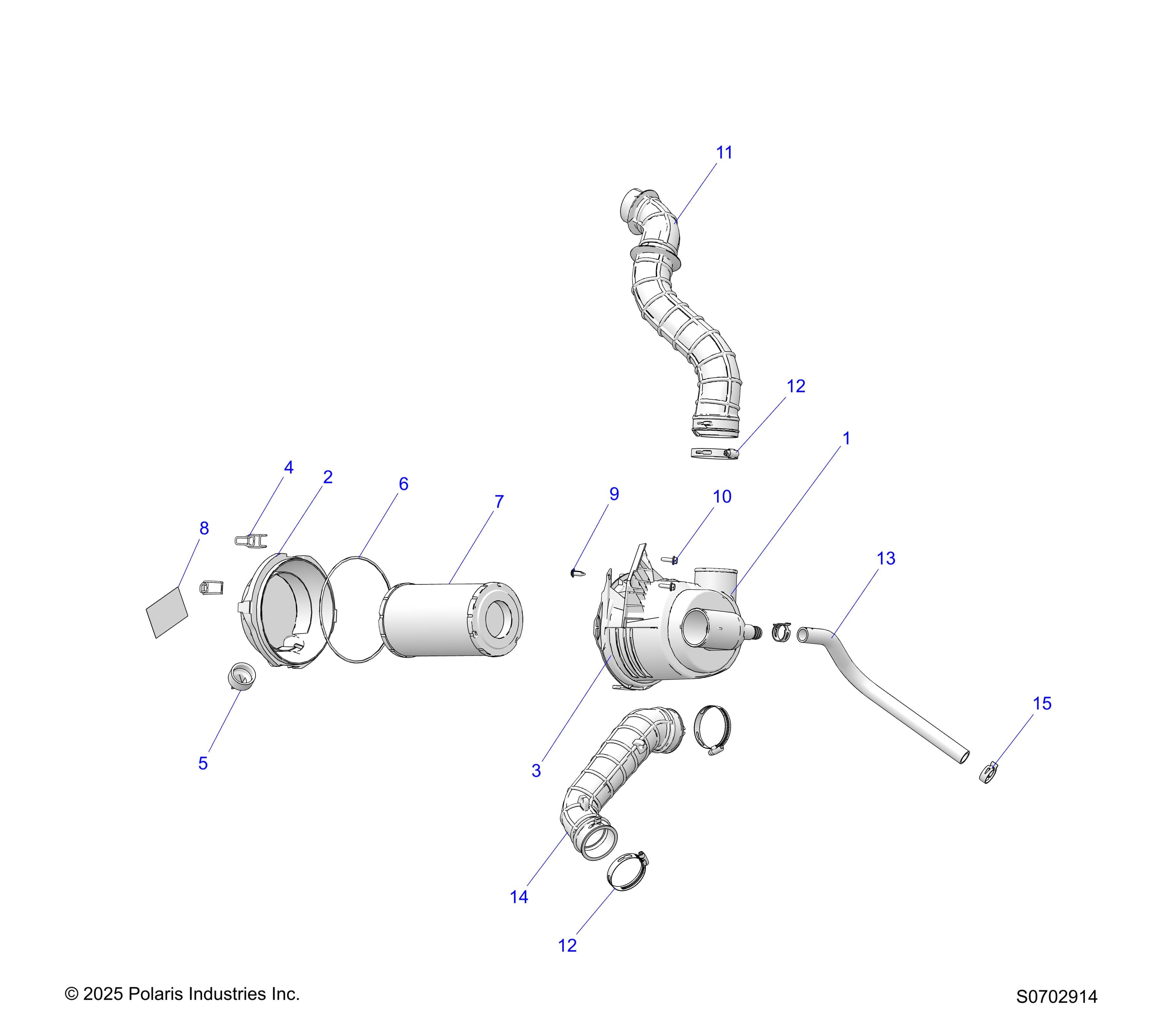

ENGINE, AIR INTAKE SYSTEM
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 250687
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | ------- | ASM-AIRBOX [INCLUDES 2-7] | 1 | Price TBD | Out of stock | |
| 2 | 1241256 | ASM-AIRBOX COVER [INCLUDES 2,4,5 & 7] | 1 | $84.99 | In stock | |
| 2 | ------- | COVER-AIRBOX | 1 | Price TBD | Out of stock | |
| 3 | 5454859 | BASE-AIRBOX | 1 | $64.99 | In stock | |
| 4 | 7082449 | ASM-AIRBOX CLIP | 2 | $7.99 | In stock | |
| 5 | 5417149 | BOOT-PURGE VALVE,AIR BOX | 1 | $5.99 | In stock | |
| 6 | 5815305 | SEAL-AIRBOX | 1 | $44.99 | In stock | |
| 7 | 7082265 | FILTER-AIR | 1 | $44.99 | In stock | |
| 7 | 7083113 | FILTER-HD,AIR INTAKE,220MM [HD OPTION] | 1 | $69.99 | In stock | |
| 8 | 7182652 | DECAL-CAUT.AIR BOX | 1 | Price TBD | Out of stock | |
| 9 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 1 | $1.49 | In stock | |
| 10 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | $1.49 | In stock | |
| 11 | 5416591 | HOSE-AIRBOX TO SIDE PANEL | 1 | $119.99 | In stock | |
| 12 | 7082509 | CLAMP-HOSE SLOTTED,60-80 DIA | 3 | $5.99 | In stock | |
| 13 | 5416590 | HOSE-VENT,ENGINE | 1 | $39.99 | In stock | |
| 14 | 5416592 | HOSE-AIRBOX TO PLENUM | 1 | $129.99 | In stock | |
| 15 | 7080841 | SPRINGBAND-CLAMP 27/12,GREEN | 2 | $8.99 | In stock |
