Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, HARNESS CHASSIS
Product Description

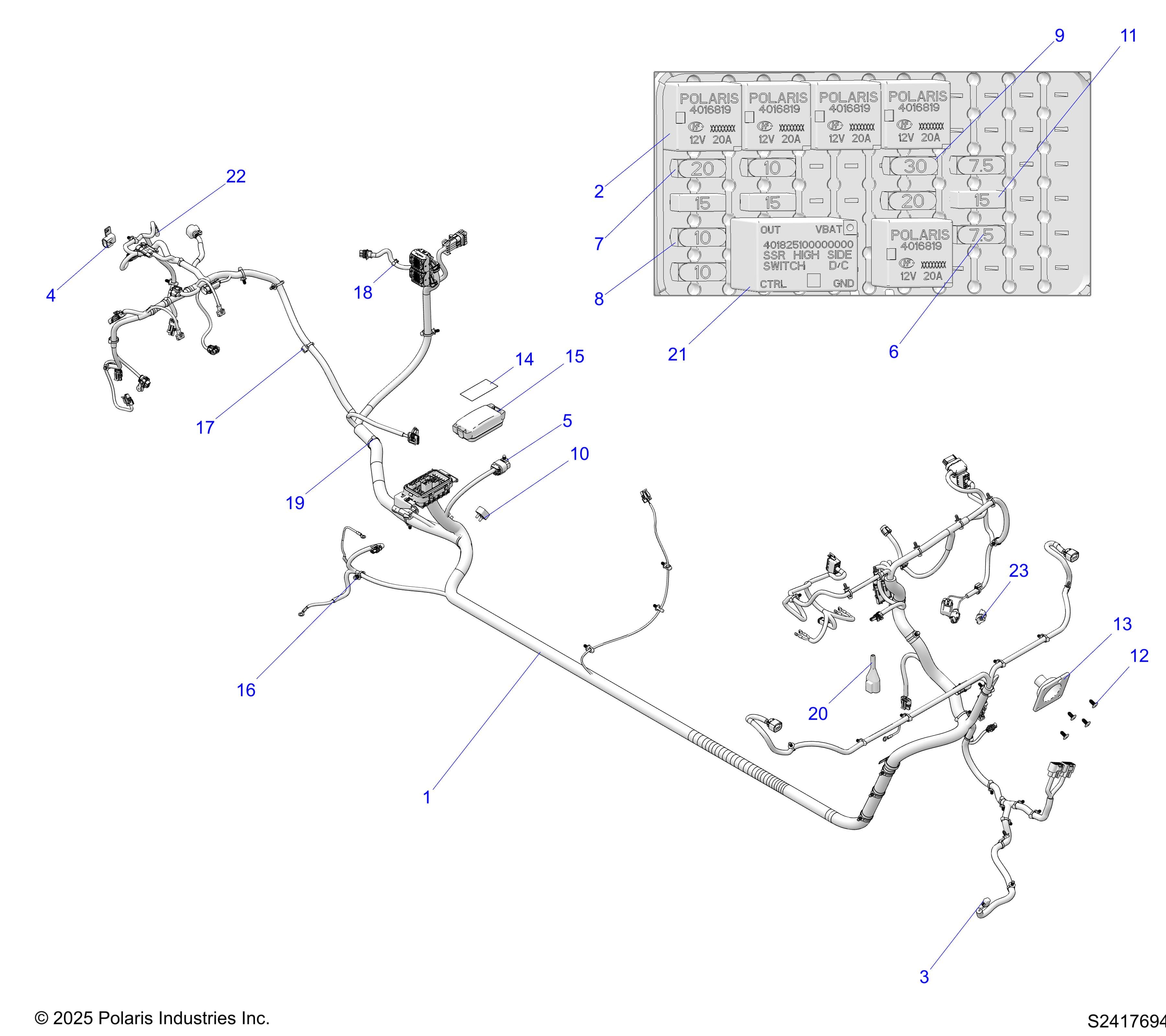

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CREW NON EPS Assembly ID: 250202
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CREW NON EPS
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2417694 | HARN-CHASSIS,BASE,CREW [INCLUDES 2-23] | 1 | $1,849.99 | In stock | |
| 2 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 5 | $44.99 | In stock | |
| 3 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 2 | $11.99 | In stock | |
| 4 | 4012260 | COVER-FUSEHOLDER | 1 | $12.99 | In stock | |
| 5 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | $10.99 | In stock | |
| 6 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 2 | $13.99 | Out of stock Est. Sep 14, 2026 | |
| 7 | 2434017 | FUSE-PARK,20 AMP | 2 | Price TBD | Out of stock | |
| 8 | 2434016 | FUSE-IGNITION,10 AMP | 3 | $6.99 | In stock | |
| 9 | 2434015 | FUSE-MAIN,30 AMP | 1 | $9.99 | In stock | |
| 10 | 2410881 | BREAKER-CIRCUIT,20 AMP,SEALED | 1 | $94.99 | In stock | |
| 11 | 2410280 | FUSE-MINI BLADE,15 AMP | 3 | Price TBD | Out of stock | |
| 12 | 7670090 | CLIP-FIR TREE,DART,6.35MM | 4 | $1.49 | In stock | |
| 13 | 5814560 | GROMMET - 65MM, W/FLANGE, BLK | 1 | $15.99 | In stock | |
| 14 | 7300222 | DECAL-RELAY/FUSE BLOCK,BASE | 1 | Price TBD | Out of stock | |
| 15 | 4014047 | COVER,FUSEBOX,72WAY | 1 | $89.99 | In stock | |
| 16 | 7082414 | CLIP-FIR TREE,9.7-10.0MM HOLE | 2 | $4.99 | In stock | |
| 17 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 2 | $5.99 | In stock | |
| 18 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 1 | $5.99 | In stock | |
| 19 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 39 | $5.99 | In stock | |
| 20 | 4080238 | THROTTLE-CON BOOT | 1 | $11.99 | In stock | |
| 21 | 4018251 | RELAY - SSR 10A | 1 | $74.99 | In stock | |
| 22 | 4018066 | CAP EVAP CONNECTOR | 1 | $4.99 | In stock | |
| 23 | 4082740 | CAP-CONNECTOR,TE,HP,3P | 1 | $4.99 | In stock |
