Polaris•Schematic assembly
ELECTRICAL, BATTERY
Product Description

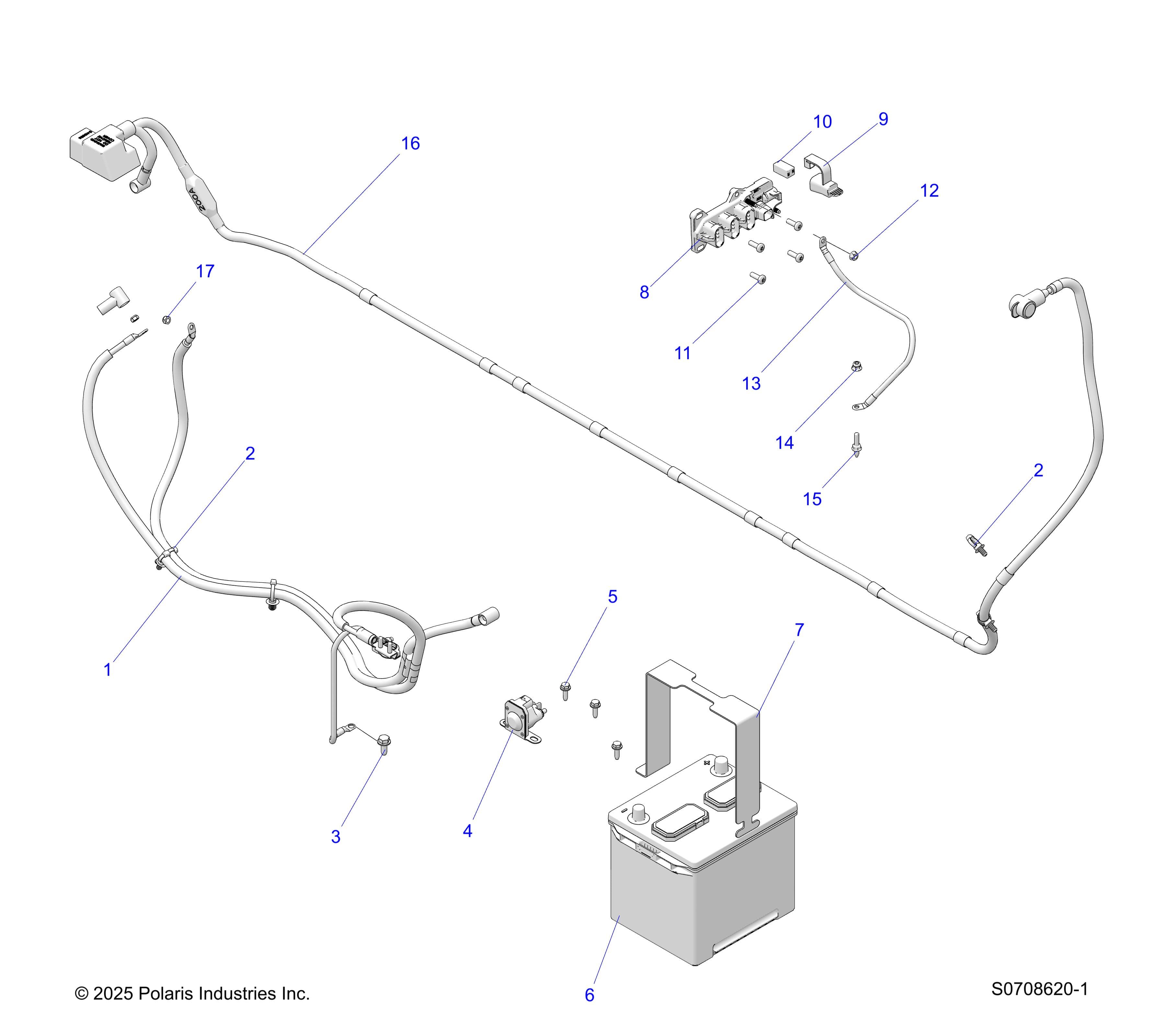

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CREW NON EPS Assembly ID: 250199
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CREW NON EPS
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4080963 | CABLE-START TO SOLENOID | 1 | $119.99 | In stock | |
| 2 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 2 | $5.99 | In stock | |
| 3 | 7520764 | SCR-HXFL-M8X1.25X20 TAP ZY3 | 1 | $5.99 | In stock | |
| 4 | 4014655 | SOLENOID-STARTER,SEALED | 1 | $54.99 | In stock | |
| 5 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | $1.49 | In stock | |
| 6 | 4014132 | BATTERY-575 CCA,FLOODED,FILLED | 1 | Price TBD | Out of stock | |
| 6 | 4081855 | BATTERY-HD,AGM,SEALED,R2 [HD OPTION] | 1 | $239.99 | In stock | |
| 7 | 5257827 | BRKT-BATTERY STRAP GALV | 1 | $44.99 | In stock | |
| 8 | 4018346 | BLOCK-TERMINAL,3 POS [INCLUDES 9 & 10] | 1 | $54.99 | Out of stock Est. Jul 21, 2026 | |
| 9 | 5456244 | COVER,TB,25A,JCASE | 1 | $16.99 | In stock | |
| 10 | 4018635 | FUSE-CARTRIDGE,25A | 1 | $11.99 | In stock | |
| 11 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | $4.99 | In stock | |
| 12 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 2 | $4.99 | In stock | |
| 13 | 4080965 | CABLE-BAT TO GND | 1 | $44.99 | In stock | |
| 14 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | $1.99 | In stock | |
| 15 | 7519333 | STUD-M6X1.0X19-M6 TAPTITE | 1 | $9.99 | In stock | |
| 16 | 4080967 | CABLE-BATTERY TO SOLENOID | 1 | $114.99 | In stock | |
| 17 | 7546703 | NUT-6MM X 1 NYLOK-Z | 2 | $1.49 | In stock |
