Polaris•Schematic assembly

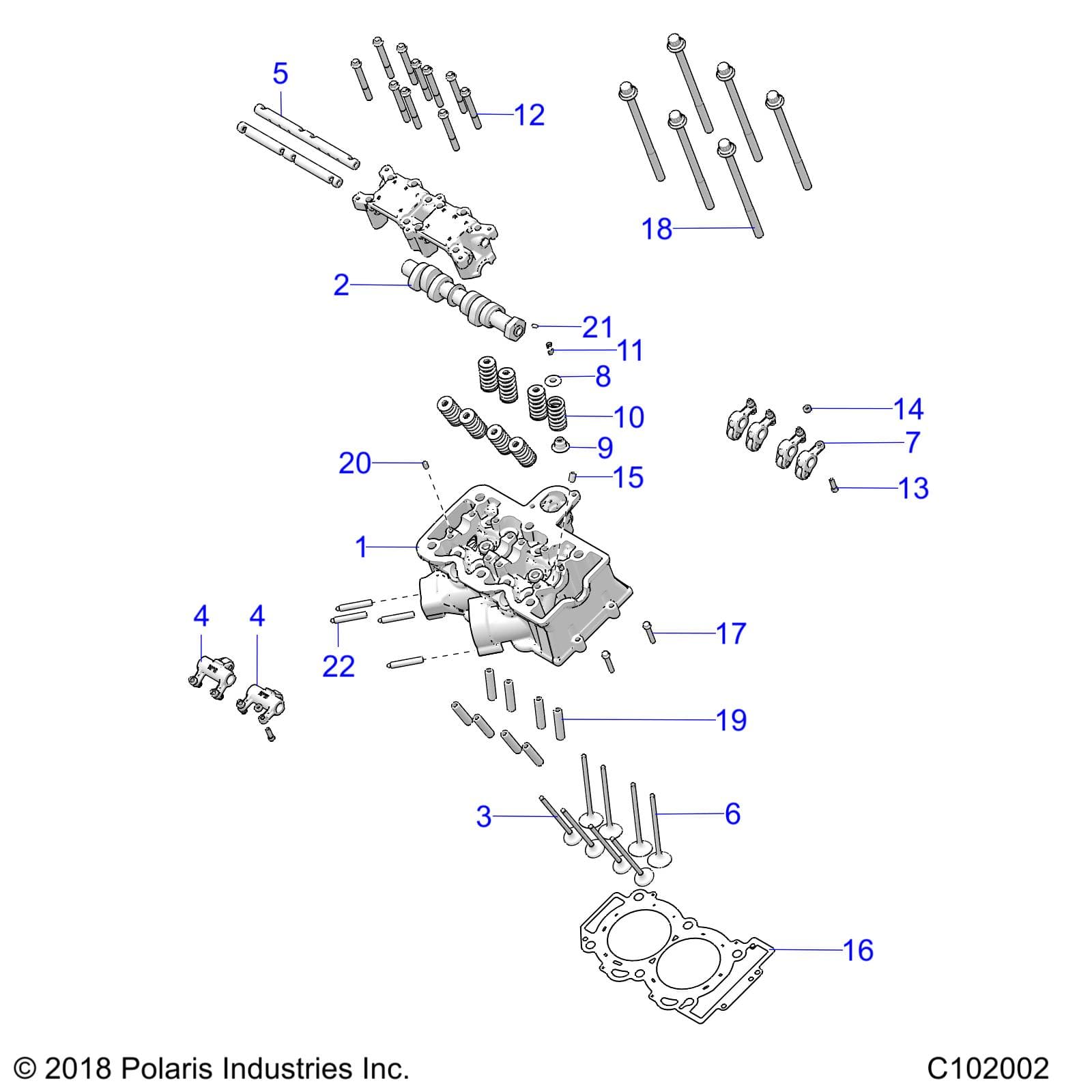

ENGINE, CYLINDER HEAD, CAM and VALVES - A26SXN85A7 (C102002)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 850 MUD 49S R01 - A26SXN85A7 Assembly ID: 249038
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 850 MUD 49S R01 - A26SXN85A7
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3022821 | ASM-CYLINDER HEAD 850XP [INCL. GUIDES, CAMSHAFT CARRIER, PLUG][TO 8/3/2026] | 1 | $1,099.99 | In stock | |
| 1 | 3024639 | ASM-CYLINDER HEAD,850 [INCL. GUIDES, CAMSHAFT CARRIER, PLUG][frm 8/3/2026] | 1 | Price TBD | Out of stock | |
| 1 | 7052532 | PLUG | 2 | $34.99 | In stock | |
| 2 | 3024064 | CAMSHAFT-850/1000XP [INCL. 21] | 1 | $489.99 | In stock | |
| 3 | 3022272 | VALVE, EXHAUST | 4 | $39.99 | In stock | |
| 4 | 3024037 | ASM-ROCKER ARM,EXH,IC [INCL. ARM, SCREW, NUT] | 2 | $169.99 | In stock | |
| 5 | 3024201 | ASM-ROCKER SHAFT | 2 | $84.99 | In stock | |
| 6 | 3022203 | VALVE-INTAKE,33MM | 4 | $39.99 | Out of stock Est. Sep 14, 2026 | |
| 7 | 3024036 | ASM-ROCKER ARM,INT,IC [INCL. ARM, SCREW, NUT] | 4 | $119.99 | In stock | |
| 8 | 3021865 | RETAINER, VALVE | 8 | $5.99 | In stock | |
| 9 | 3610165 | Seal, Valve | 8 | Price TBD | Out of stock | |
| 10 | 7045875 | SPRING, VALVE | 8 | $34.99 | In stock | |
| 11 | 7081470 | KEEPER-VALVE | 16 | Price TBD | Out of stock | |
| 12 | 7519293 | SCREW | 10 | $8.99 | In stock | |
| 13 | 5136463 | SCREW, LASH ADJUSTER | 8 | Price TBD | Out of stock | |
| 14 | 7547335 | NUT, LOCK | 8 | Price TBD | Out of stock | |
| 15 | 2540080 | JET-OIL,OIL PUMP | 1 | $11.99 | In stock | |
| 16 | 5813345 | GASKET, CYLINDER HEAD | 1 | $69.99 | In stock | |
| 17 | 7518578 | SCR-HXFL-M6X1.0X35 8.8 ZY3 | 2 | Price TBD | Out of stock | |
| 18 | 7519219 | Bolt, Head | 6 | $12.99 | In stock | |
| 19 | 3022348 | GUIDE, VALVE | 8 | $10.99 | In stock | |
| 20 | 5137624 | PIN-DOWEL,M6X10 | 2 | Price TBD | Out of stock | |
| 21 | ------- | PIN, DOWEL | 1 | Price TBD | Out of stock | |
| 22 | 7520724 | STUD-M8X1.25X45 | 4 | Price TBD | Out of stock |
