Polaris•Schematic assembly

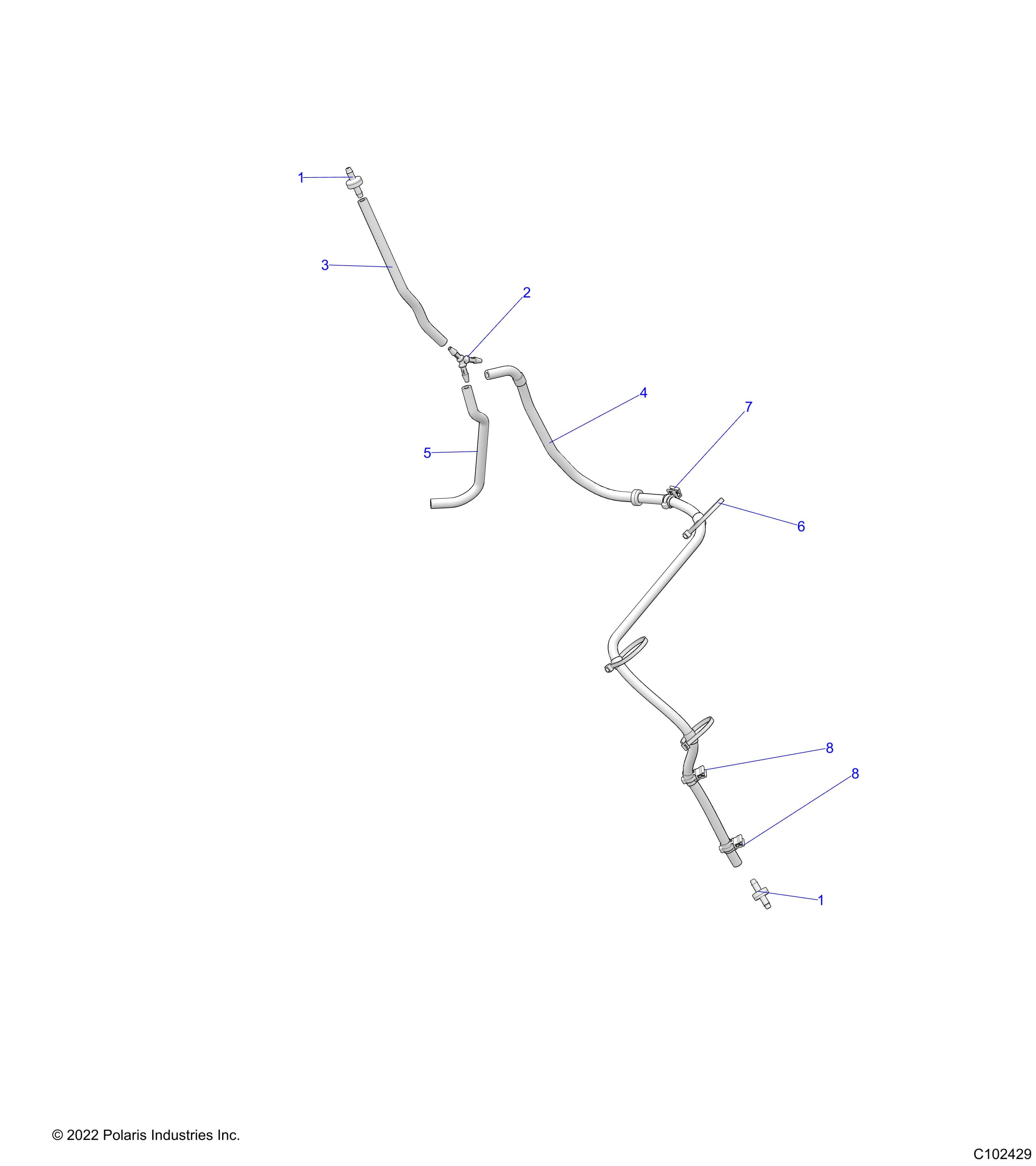

FUEL SYSTEM, FUEL TANK VENTING - A26SXZ85A9/AN/AZ (C102429)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 850 TRAIL 49 R01 - A26SXZ85A9/AN/AZ Assembly ID: 248886
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 850 TRAIL 49 R01 - A26SXZ85A9/AN/AZ
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2522600 | ASM-FUEL VENT LINES [INCL.1-2] | 1 | $34.99 | Out of stock | |
| 1 | 7052390 | VALVE, CHECK, VACUUM | 2 | $9.99 | In stock | |
| 1 | 2522600 | ASM-FUEL VENT LINES [INCL.1-2] | 1 | $34.99 | Out of stock | |
| 1 | 7052390 | VALVE, CHECK, VACUUM | 2 | $9.99 | In stock | |
| 2 | 7052589 | FITTING-Y,1/4 | 1 | $2.99 | In stock | |
| 3 | ------- | FUEL LINE-23 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 4 | ------- | FUEL LINE-65 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 5 | ------- | FUEL LINE-29 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 6 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 3 | Price TBD | Out of stock | |
| 7 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 8 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 2 | Price TBD | Out of stock |
