Polaris•Schematic assembly

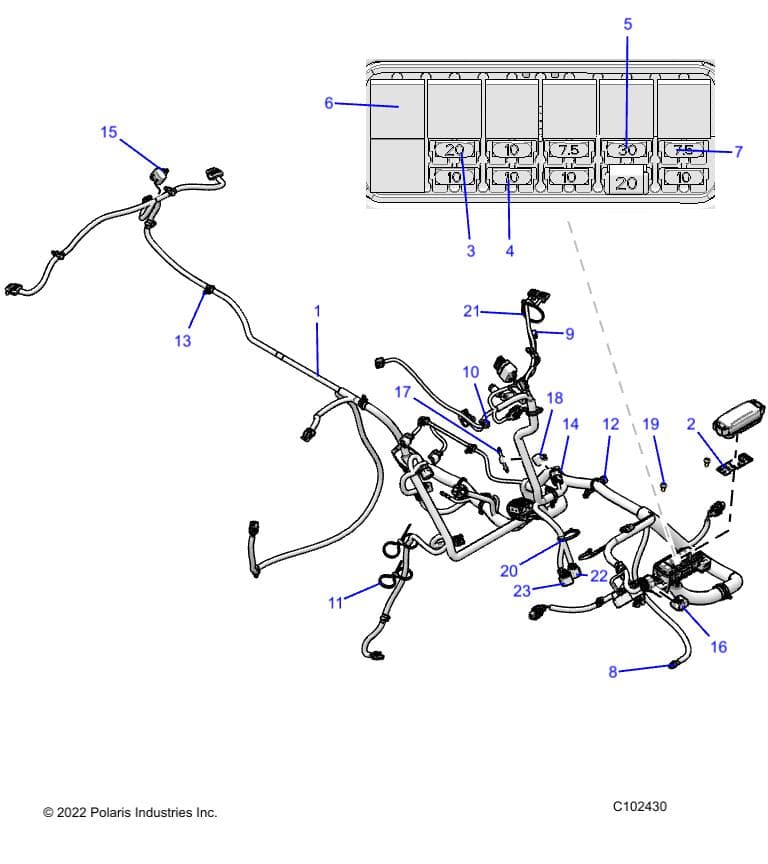

ELECTRICAL, HARNESS - A26SXE85AN/AZ (C102430)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 850 EPS PREM 48" R01 - A26SXE85AN/AZ Assembly ID: 248650
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 850 EPS PREM 48" R01 - A26SXE85AN/AZ
Checkout Note
Please note that 19 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2418115 | HARN-MAIN,SPXP NON-ETC,LED [INCL. 1-18, 22 &23] | 1 | $1,199.99 | Out of stock Est. Jul 22, 2026 | |
| 2 | 7300362 | LABEL, FUSE BOX | 1 | Price TBD | Out of stock | |
| 3 | 2434017 | FUSE-PARK,20 AMP | 1 | Price TBD | Out of stock | |
| 4 | 2434016 | FUSE-IGNITION,10 AMP | 5 | Price TBD | Out of stock | |
| 5 | 2434015 | FUSE-MAIN,30 AMP | 1 | Price TBD | Out of stock | |
| 6 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 7 | Price TBD | Out of stock | |
| 7 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 2 | Price TBD | Out of stock | |
| 8 | 4014891 | CONNECTOR-CAP, WINCH CONTACTOR | 1 | $10.99 | In stock | |
| 9 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 1 | Price TBD | Out of stock | |
| 10 | 7082402 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 11 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 4 | Price TBD | Out of stock | |
| 12 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 1 | Price TBD | Out of stock | |
| 13 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 14 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 1 | Price TBD | Out of stock | |
| 15 | 4016259 | COVER, TAILLIGHT, LED W/CLIP | 1 | $8.99 | In stock | |
| 16 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 17 | 2411035 | DIODE - 6 AMP, 1/4, 3/16 TERM | 2 | Price TBD | Out of stock | |
| 18 | 2410000 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 19 | 7518914 | SCREW-M6X1X14,PN/TX,TRI-LOB | 2 | Price TBD | Out of stock | |
| 20 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 7 | Price TBD | Out of stock | |
| 21 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 7 | Price TBD | Out of stock | |
| 22 | 4014235 | CONNECTOR, CAP, EPS, SIGNAL | 1 | $9.99 | In stock | |
| 23 | 4014236 | CONNECTOR, CAP, EPS POWER | 1 | $11.99 | In stock |
