Polaris•Schematic assembly
ELECTRICAL HARNESS COMPONENTS
Product Description

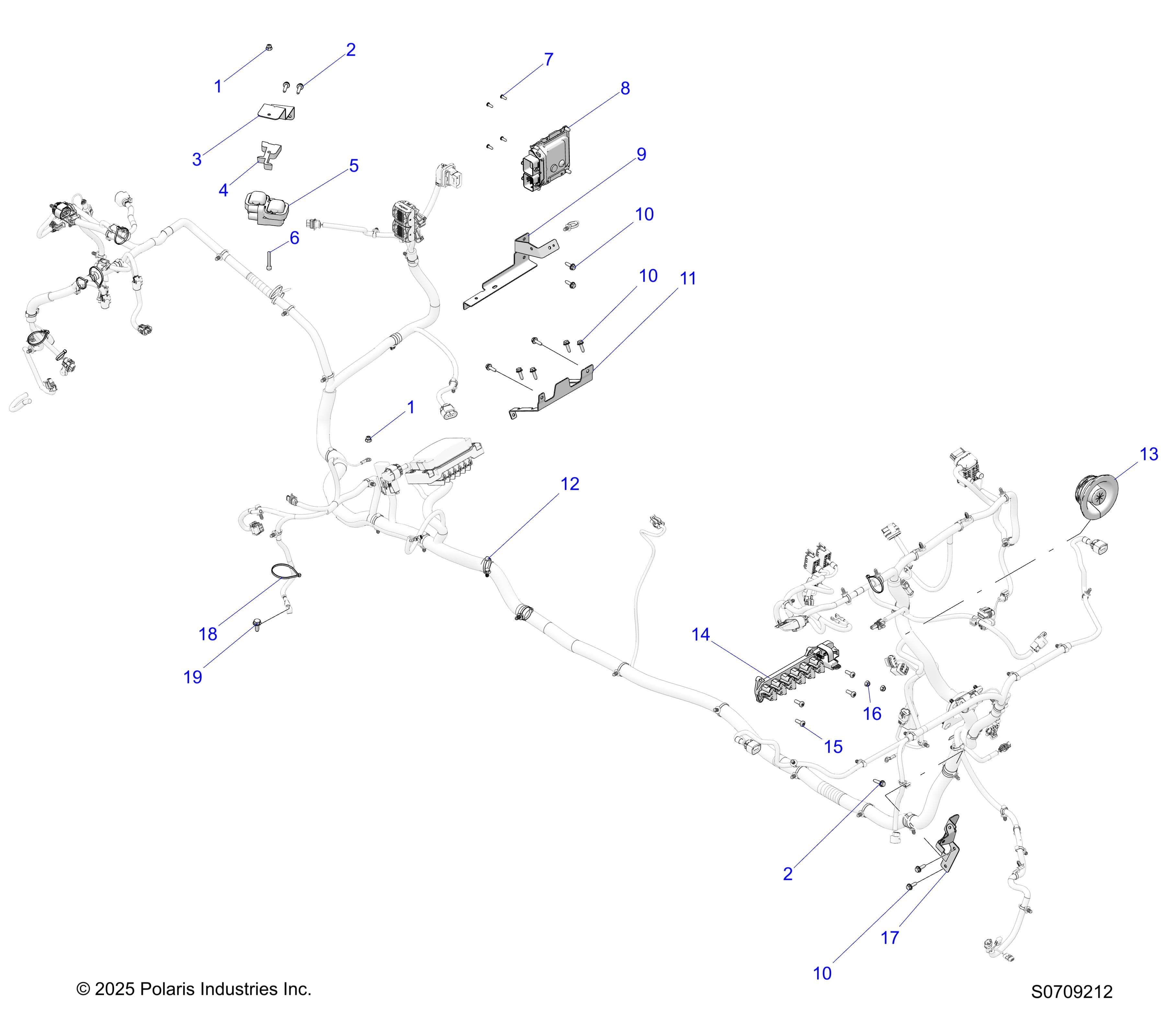

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE Assembly ID: 248283
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | $1.99 | In stock | |
| 2 | 7520715 | SCR-TFHFL-M6X1.0X25,ZY3 | 3 | $4.99 | In stock | |
| 3 | 5263891 | BRKT-COIL MOUNT | 1 | $12.99 | In stock | |
| 4 | 5436577 | SPACER-COIL MOUNT | 1 | $4.99 | In stock | |
| 5 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 6 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | $4.99 | In stock | |
| 7 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 8 | 4018203 | ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED] | 1 | $869.99 | In stock | |
| 9 | 5275805 | BRKT-HARNESS ROUTING | 1 | $14.99 | In stock | |
| 10 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 12 | $1.49 | In stock | |
| 11 | 5271546-329 | BRKT-FUSE HOLDER,PREM,BLK | 1 | $34.99 | In stock | |
| 12 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 0 | $5.99 | In stock | |
| 13 | 5417082 | GROMMET-HOOD LINER,SPLIT | 1 | $8.99 | In stock | |
| 14 | 4016007 | BLOCK-TERMINAL,3 POST,TALL [INCLUDES FUSE, PLUG & COVER] | 1 | $44.99 | Out of stock Est. Aug 21, 2026 | |
| 14 | 4013891 | FUSE-CARTRIDGE,40A | 1 | $44.99 | In stock | |
| 14 | 5454283 | PLUG,ACCY TB | 6 | $54.99 | In stock | |
| 14 | 5454284 | COVER,TB,JCASE | 1 | $39.99 | In stock | |
| 15 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | $4.99 | In stock | |
| 16 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 2 | $4.99 | In stock | |
| 17 | 5276381-329 | BRKT-ROUTING,ECOAT | 1 | Price TBD | Out of stock | |
| 18 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 0 | $2.99 | In stock | |
| 19 | 7520764 | SCR-HXFL-M8X1.25X20 TAP ZY3 | 1 | $5.99 | In stock |
