Polaris•Schematic assembly

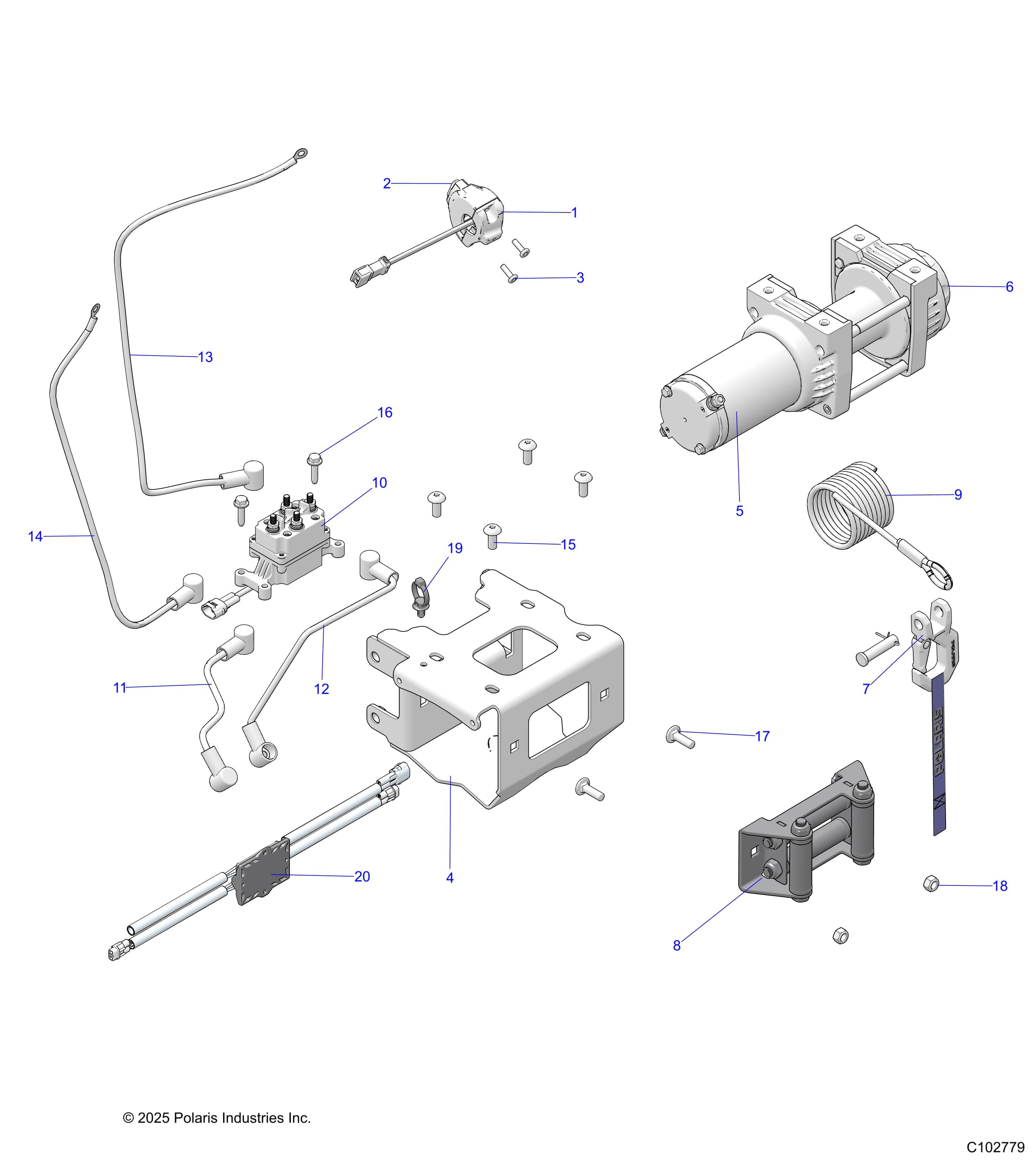

CHASSIS, WINCH - A26SYY95AK (C102779)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING XP 1000 R01 - A26SYY95AK Assembly ID: 248197
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING XP 1000 R01 - A26SYY95AK
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2207175 | K-WINCH SWITCH,HBR,EU,ATV | 1 | $79.99 | In stock | |
| 2 | 4017111 | SWITCH-HBR,EU,ATV | 1 | Price TBD | Out of stock | |
| 3 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 2 | Price TBD | Out of stock | |
| 4 | 1022577 | WELD-WINCH MT BRKT,CTR,ATV [INCL.4] | 1 | $114.99 | In stock | |
| 4 | ------- | BRKT-WINCH,CTR,ATV | 1 | Price TBD | Out of stock | |
| 5 | 2212756 | SVC-WINCH MOTOR,35HDT | 1 | $99.99 | In stock | |
| 5 | 2212694 | WINCH-POL,35HD,TH,T,B+45 | 1 | $364.99 | In stock | |
| 6 | 2205265 | K-SVC, HANDLE, HD WINCH | 1 | Price TBD | Out of stock | |
| 7 | 5910705 | HOOK-LATCH,WINCH,ULT,CMN [INCL7 | 1 | Price TBD | Out of stock | |
| 7 | 7083177 | STRAP-WINCH HOOK,POL,BLUE | 1 | Price TBD | Out of stock | |
| 8 | 2411848 | ROLLER, FAIRLEAD, WINCH 25/3500 | 1 | $99.99 | In stock | |
| 9 | 2878888 | ROPE-WINCH,SYNTHETIC,50' | 1 | $94.99 | In stock | |
| 10 | 4015095 | CONTACTOR-WINCH,POL,LIF,CAP | 1 | $109.99 | In stock | |
| 11 | 4013468-300 | CABLE-WINCH,YELLOW 6 GA,300MM | 1 | $44.99 | In stock | |
| 12 | 4013469-340 | CABLE-WINCH,BLUE 6 GA,340MM | 1 | $39.99 | In stock | |
| 13 | 4013470-530 | CABLE-POWER,WINCH,BLK #6,530MM | 1 | $44.99 | In stock | |
| 14 | 4013471-510WC | CABLE-POWER,WINCH,RED #6,510MM | 1 | $44.99 | In stock | |
| 15 | 7519260 | SCR-TXTH-M8X1.25X20 8.8 ZODP30 | 4 | $7.99 | In stock | |
| 16 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 2 | Price TBD | Out of stock | |
| 17 | 7527976 | SCR-RHCAR-M8X1.25X25 8.8 SPEC | 2 | $1.99 | In stock | |
| 18 | 7547317 | NUT-M8X1.25,HXFLG,NYLON INS | 2 | Price TBD | Out of stock | |
| 19 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 20 | 2640451 | ASM-WINCH,35HD,TH,SMF | 1 | $349.99 | In stock |
