Schematic diagram
Polaris•Schematic assembly

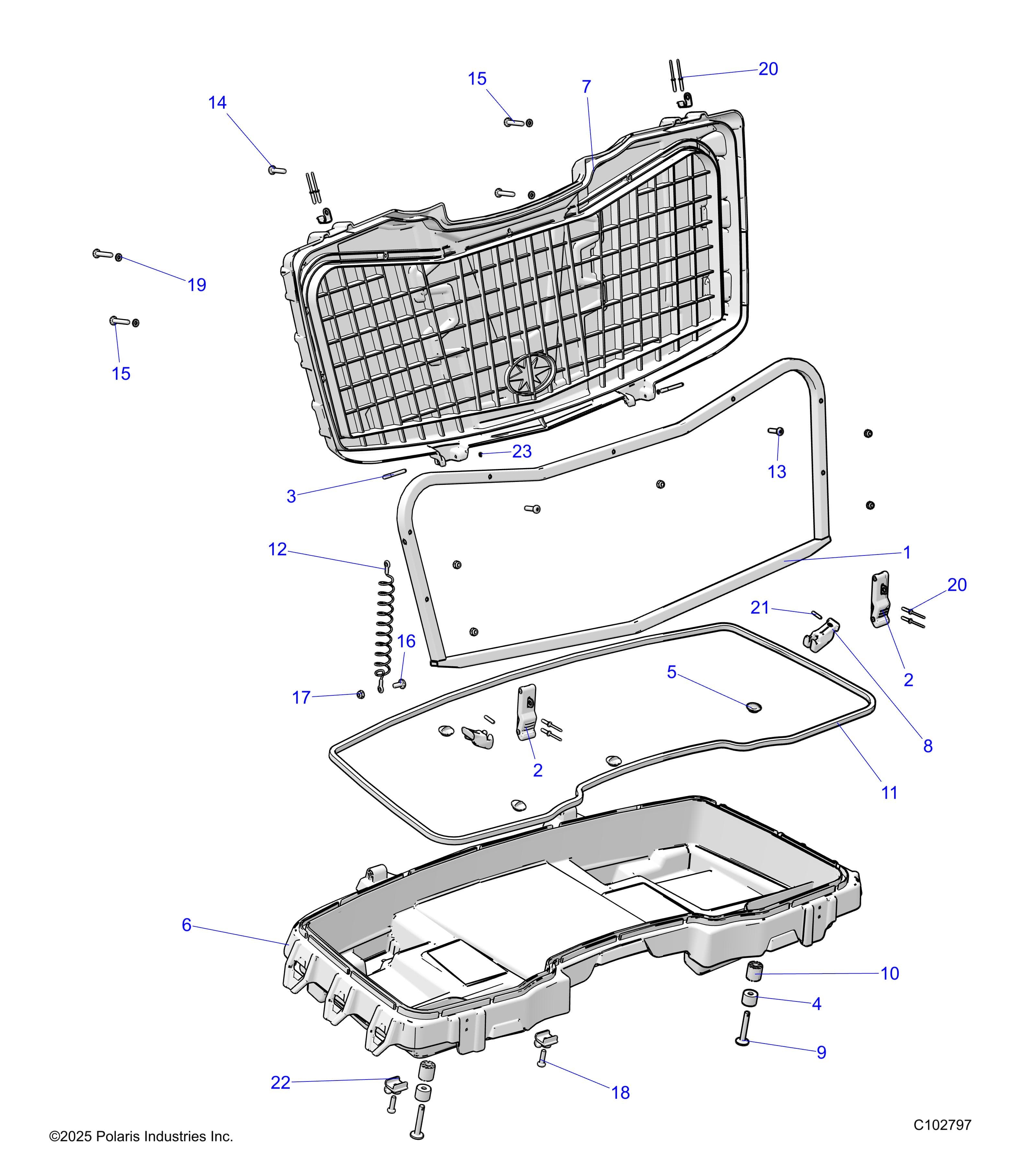

BODY, FRONT CARGO BOX - A26SYY95AK (C102797)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING XP 1000 R01 - A26SYY95AK Assembly ID: 248177
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING XP 1000 R01 - A26SYY95AK
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2877784 | KIT, LOCK AND RIDE ANCHOR, LONG [INCL. 4,8-10,21] | 1 | $34.99 | In stock | |
| - | 2877951 | Kit, Cargo Box, Front [INCL. ALL] | 1 | $214.99 | In stock | |
| 1 | 1016972 | Support, Lid | 1 | $109.99 | In stock | |
| 2 | 2877447 | Kit, Latch, Rubber | 2 | $30.99 | In stock | |
| 3 | 5137573 | Pin, Hinge, Front | 2 | $4.99 | In stock | |
| 4 | 5413887 | BUSHING, RUBBER, LOCK 'N' RIDE ANCHOR | 2 | $3.99 | In stock | |
| 5 | 5413899 | Plug, Compartment | 4 | $29.99 | In stock | |
| 6 | 5437761 | Box, Storage, Lower | 1 | $179.99 | In stock | |
| 7 | 5437762 | Box, Storage, Upper | 1 | $204.99 | In stock | |
| 8 | 5438117 | HANDLE, L&R ANCHOR, BLK | 2 | $6.99 | In stock | |
| 9 | 5138410 | SHAFT, LNR ANCHOR | 2 | $5.99 | In stock | |
| 10 | 5521796 | SPACER-LNR ANCHOR | 2 | $3.99 | In stock | |
| 11 | 5521810 | Seal, Box, Front | 1 | $19.99 | In stock | |
| 12 | 7081638 | Cable, Box Limiter, Pre-Coiled | 1 | $39.99 | In stock | |
| 13 | 7519189 | Screw | 2 | $4.99 | In stock | |
| 14 | 7519190 | Bolt | 1 | $6.99 | In stock | |
| 15 | 7519191 | Screw | 4 | $6.99 | In stock | |
| 16 | 7519192 | SCR-1/4X20X0.625",TORX | 1 | $6.99 | In stock | |
| 17 | 7547478 | Nut, Nylok | 6 | $3.99 | In stock | |
| 18 | 7519189 | Screw | 2 | $4.99 | In stock | |
| 19 | 7556541 | Washer, Seal | 5 | $3.99 | In stock | |
| 20 | 7661981 | Rivet | 8 | $6.99 | Out of stock Est. Dec 3, 2026 | |
| 21 | 7661982 | Pin, Dowel | 2 | $2.99 | In stock | |
| 22 | 5438790 | GUIDE, RACK | 2 | $3.99 | In stock | |
| 23 | 7710670 | RING, RETAINING, E-CLIP | 2 | $4.99 | In stock |
