Schematic diagram
Polaris•Schematic assembly

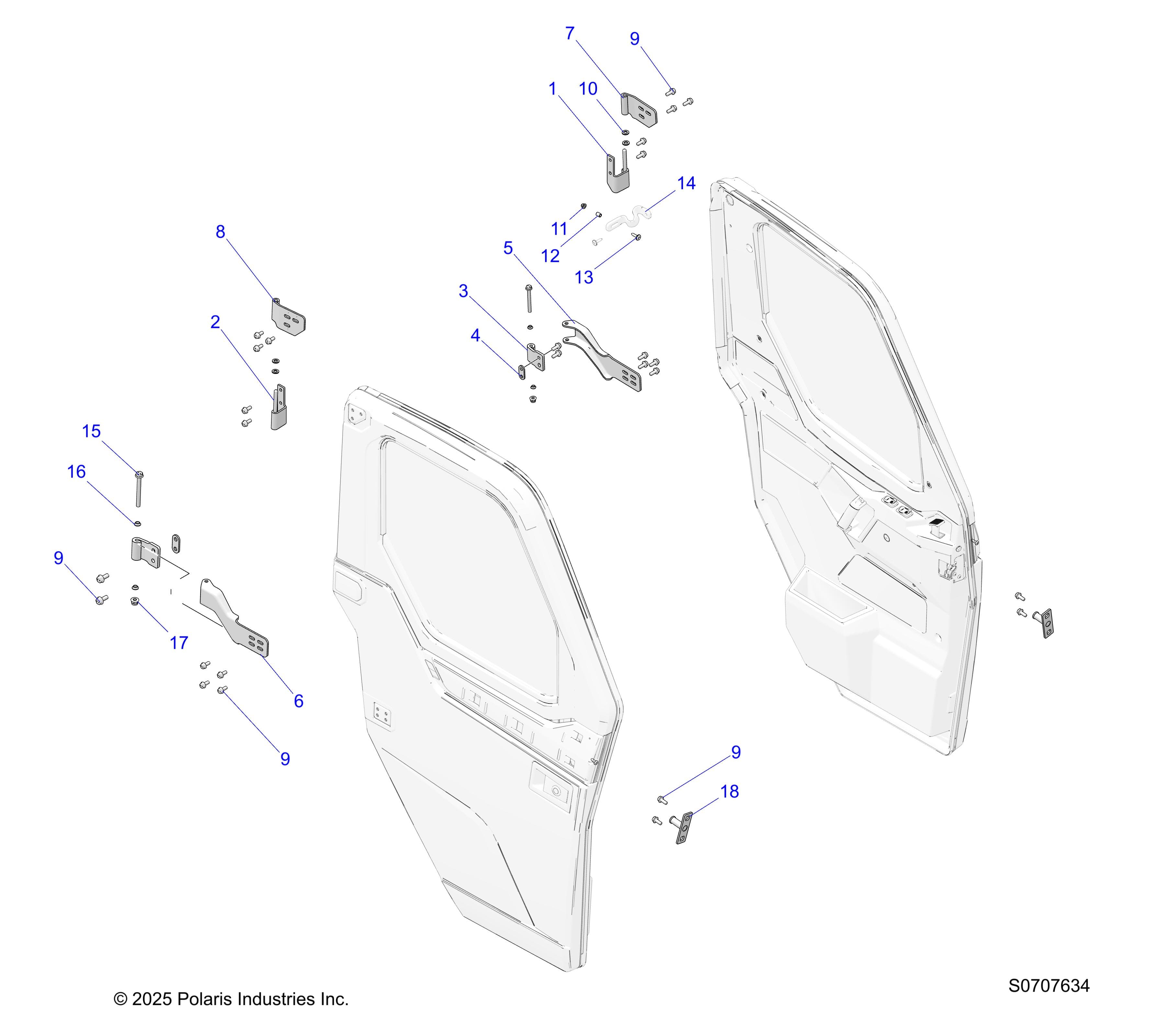

BODY, DOOR, FRONT MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE Assembly ID: 248099
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2213210 | K-HINGE ASM,UPR,CREW FRONT,LH [INCLUDES 1,7,9 &10] | 1 | $59.99 | Out of stock | |
| 1 | 1023598-458 | WELD-HINGE,UPPER,LH,BLK | 1 | $59.99 | In stock | |
| 2 | 2213211 | K-HINGE ASM,UPR,CREW FRONT,RH [INCLUDES 2,8,9 & 10] | 1 | $59.99 | Out of stock | |
| 2 | 1023599-458 | WELD-HINGE,UPPER,RH,BLK | 1 | $59.99 | In stock | |
| 3 | 5265231-458 | BRKT-HINGE,DOOR,LOWER,BLK | 2 | $17.99 | In stock | |
| 4 | 5265312-329 | BRKT-PLATE,HINGE SPACER,BLK | 2 | $7.99 | In stock | |
| 5 | 5267135-458 | BRKT-HINGE,DOORLWR,LH,CREW,BLK [TO 01/26/2026] | 1 | Price TBD | Out of stock | |
| 5 | 5276379-458 | BRKT-HINGE,DOOR LWR,LH,CR,BLK [FROM 01/26/2026] | 1 | $109.99 | In stock | |
| 6 | 5267136-458 | BRKT-HINGE,DOORLWR,RH,CREW,BLK [TO 01/26/2026] | 1 | $109.99 | In stock | |
| 6 | 5276380-458 | BRKT-HINGE,DOOR LWR,RH,CR,BLK [FROM 01/26/2026] | 1 | $109.99 | In stock | |
| 7 | ------- | BRKT-HINGE,DOOR UPPER,LH.BLK | 1 | Price TBD | Out of stock | |
| 8 | ------- | BRKT-HINGE,DOOR UPPER,RH,BLK | 1 | Price TBD | Out of stock | |
| 9 | 7521332-20 | SCR-HXFL-M8X1.25X20 10.9 ZFB | 0 | $3.99 | In stock | |
| 10 | 5439712 | WASHER-10.25X19.0X2.0,NYLON [2 EACH TOP HINGES ONLY] | 6 | $1.99 | In stock | |
| 11 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 2 | $1.49 | In stock | |
| 12 | 5139193 | SPACER-ALUM,M6,DOOR RETNR,TTN | 2 | $15.99 | In stock | |
| 13 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | $4.99 | In stock | |
| 14 | 2205280 | K-SVC, RUBBER LIMIT STRAPS [INCLUDES 11-14] | 1 | $44.99 | In stock | |
| 15 | 7521332-80 | SCR-HXFL-M8X1.25X80 10.9 ZFB | 2 | $4.49 | In stock | |
| 16 | 5522270 | BUSHING-HINGE | 4 | $3.99 | In stock | |
| 17 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | $2.99 | In stock | |
| 18 | 2207717 | K- HRDWR SVC STRIKER, ZS | 2 | $44.99 | In stock |
