Polaris•Schematic assembly

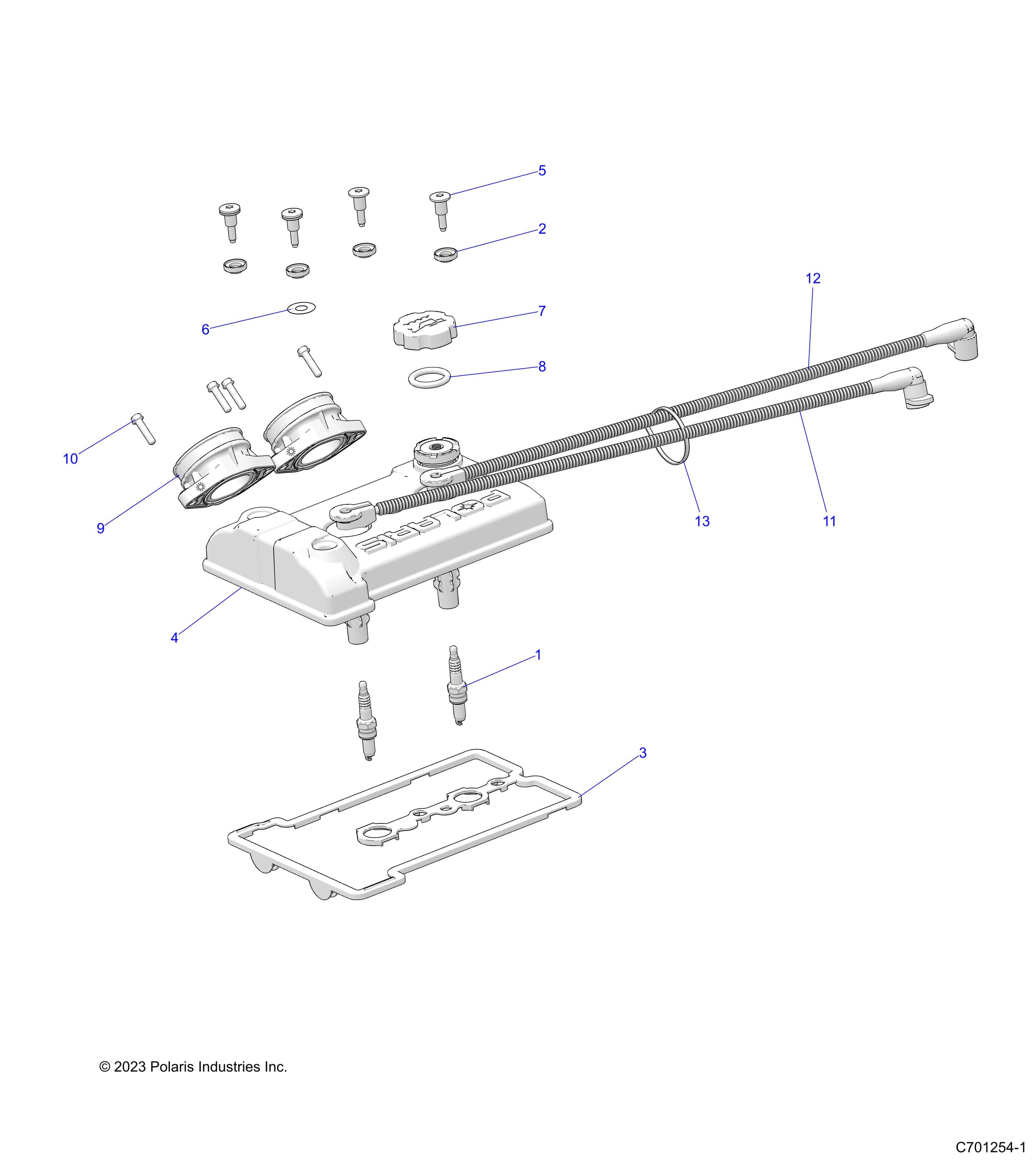

ENGINE, THROTTLE BODY & VALVE COVER - R26RSV99AK (C701254-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247938
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3022662 | SPARK PLUG-10 MM | 2 | $11.99 | In stock | |
| 2 | 5413806 | ISOLATOR-VALVE COVER | 4 | $9.99 | In stock | |
| 3 | 5415011 | SEAL-VALVE COVER,2CY,DOHC | 1 | $64.99 | In stock | |
| 4 | 5633264 | COVER, VALVE, CAST | 1 | Price TBD | Out of stock | |
| 5 | 7519165 | SCREW-TXPH-M6X1.0X14 8.8 A2K SHB | 4 | $16.99 | In stock | |
| 6 | 7556750 | WASHER-GROUNDING | 1 | $4.99 | In stock | |
| 7 | 1205012 | ASM-OIL FILL CAP [INCLUDES 8] | 1 | $44.99 | In stock | |
| 8 | 5414362 | O-RING-FILL CAP | 1 | $4.49 | In stock | |
| 9 | 3023789 | ADAPTER-THROTTLE BODY | 2 | $54.99 | In stock | |
| 10 | 7519297 | SCREW-HXFLG,M6X1.0X25,10.9 | 4 | $4.99 | In stock | |
| 11 | 4082559 | WIRE-SPARKPLUG,MAG | 1 | $64.99 | Out of stock Est. Jul 21, 2026 | |
| 12 | 4082560 | WIRE-SPARKPLUG,PTO | 1 | $64.99 | In stock | |
| 13 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 1 | $2.99 | In stock |
