Polaris•Schematic assembly

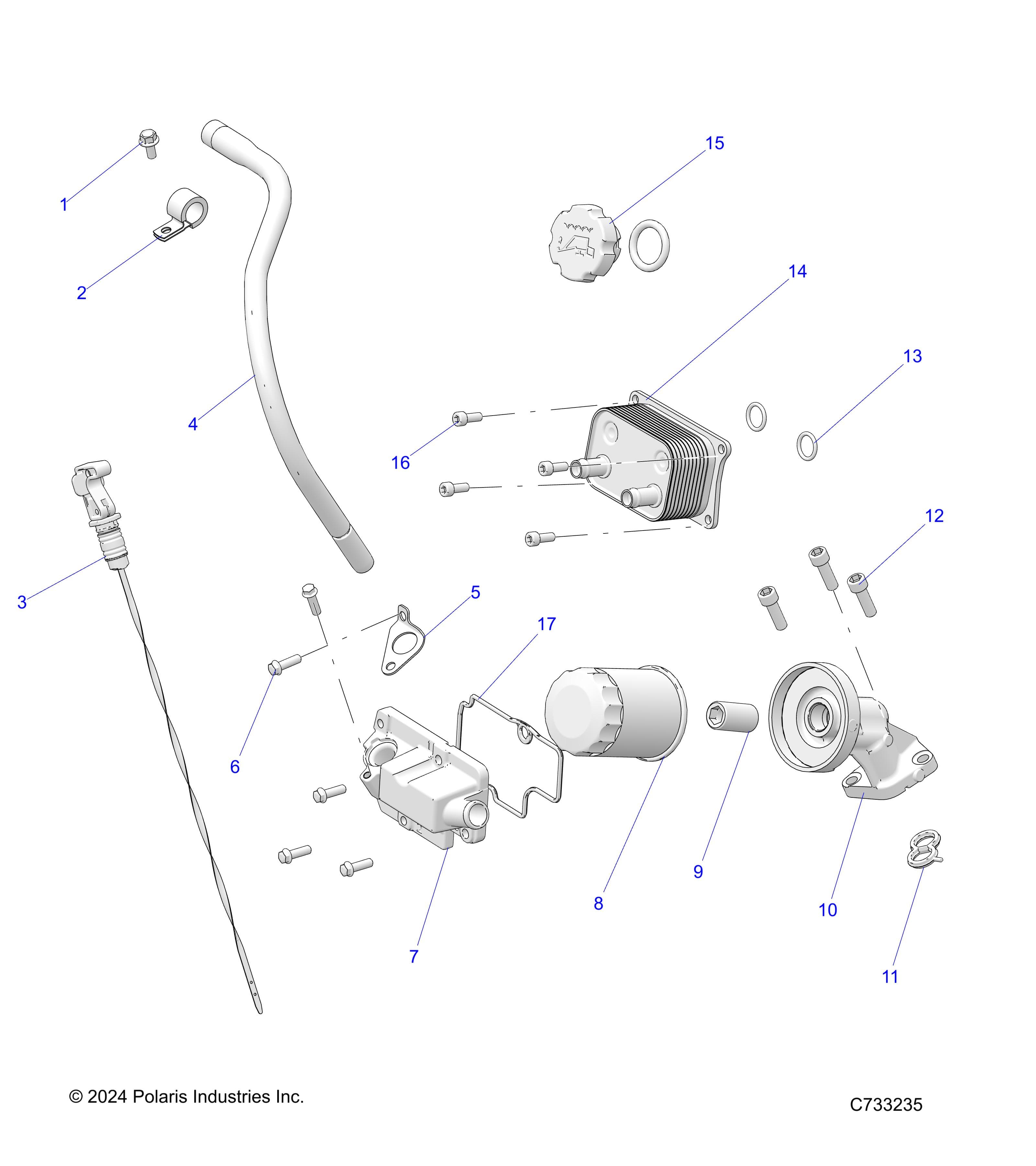

ENGINE, DIPSTICK & OIL FILTER - R26RSV99AK (C733235)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247933
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7521131 | SCR-HXFL-M6X1.0X14 10.9 ZOPD30 | 1 | $3.99 | In stock | |
| 2 | 7082877 | CLIP-P,5/8X281 HOLE,HT,FULL | 1 | $4.99 | In stock | |
| 3 | 3024377 | ASM-DIPSTICK | 1 | $44.99 | In stock | |
| 4 | 3023689 | ASM-OIL FILL TUBE [INCLUDES O-RING] | 1 | $49.99 | Out of stock Est. Oct 29, 2026 | |
| 4 | 5414047 | O-RING, 12MMX2MM | 1 | $4.49 | In stock | |
| 5 | 5255453 | BRACKET, TUBE, OIL FILL, LOWER | 1 | $10.99 | In stock | |
| 6 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 5 | $3.99 | In stock | |
| 7 | 5145419 | COVER-BREATHER,MACH | 1 | $49.99 | In stock | |
| 8 | 2540086 | FILTER-OIL (10 MICRON) [SVC PART] | 1 | $14.99 | In stock | |
| 8 | 2522485 | FILTER-HD,OIL [HD OPTION] | 1 | $19.99 | Out of stock Est. Jul 30, 2026 | |
| 9 | 2521530 | ADAPTOR-FILTER,STRAIGHT | 1 | $44.99 | In stock | |
| 10 | 5142156 | ADAPTER-OIL FILTER, MACH | 1 | $54.99 | In stock | |
| 11 | 3610348 | SEAL-FILTER ADAPTER-3HOLE | 1 | $11.99 | In stock | |
| 12 | 7518142 | SCR-SH-M8X1.25X25 8.8 ZPC NYL | 3 | $12.99 | In stock | |
| 13 | 5413837 | O-RING,.612X.818X.103 | 2 | $5.99 | In stock | |
| 14 | 1240821 | COOLER-OIL TO WATER,5 | 1 | $119.99 | In stock | |
| 15 | 1205012 | ASM-OIL FILL CAP [INCLUDES O-RING] | 1 | $44.99 | In stock | |
| 16 | 7519303 | SCREW-SH-M6X1.0X16 8.8 ZPY D204 | 4 | $4.99 | In stock | |
| 17 | 5813759 | SEAL-COVER,BREATHER | 1 | $34.99 | In stock |
