Schematic diagram
Polaris•Schematic assembly

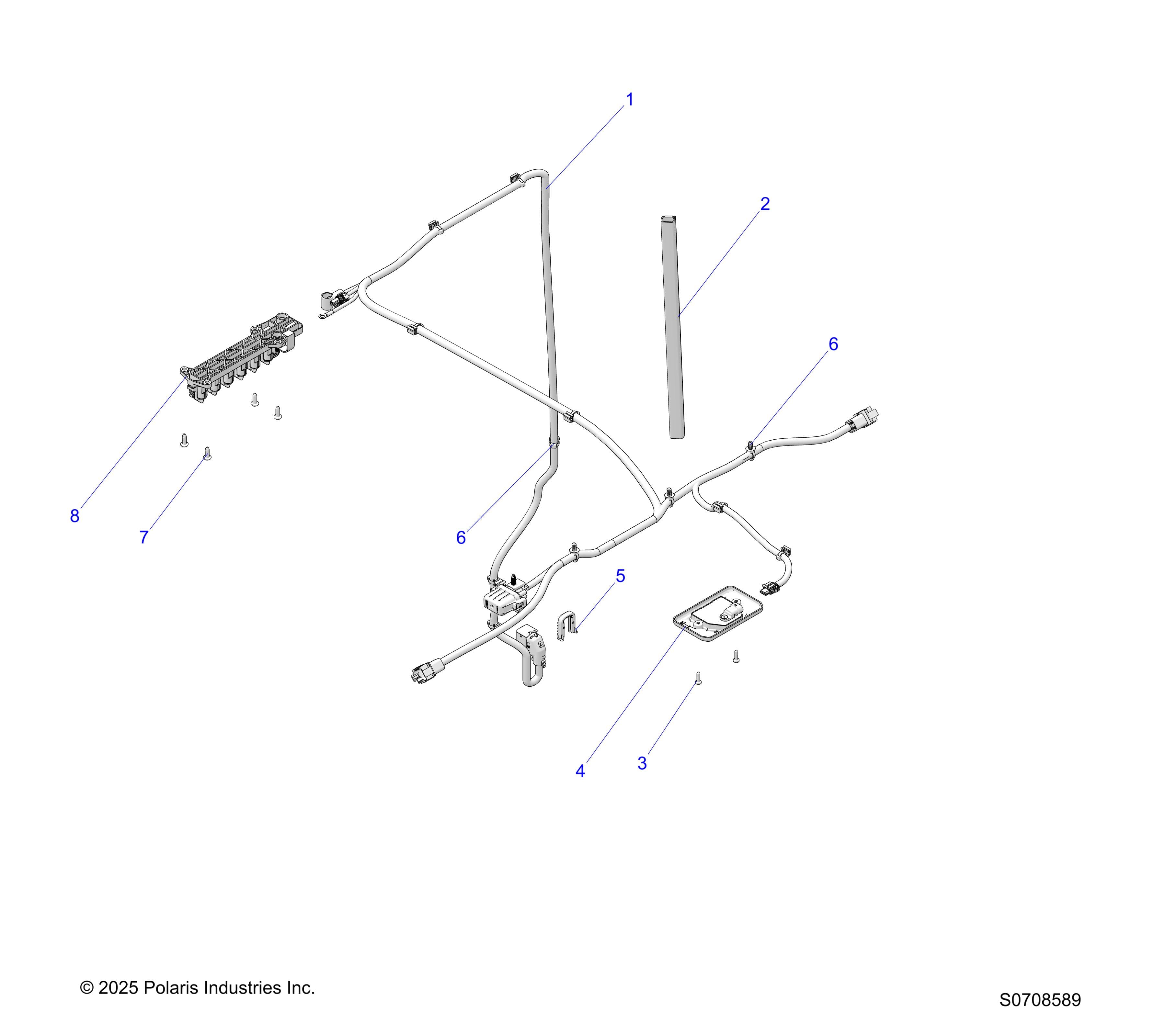

ELECTRICAL, ROOF
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247913
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2418379 | HARN-DOOR CROSSOVER,CREW | 1 | $209.99 | In stock | |
| 2 | 5416632 | CHANNEL-ROUTING,B-PILLAR | 1 | $79.99 | In stock | |
| 3 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 2 | $1.49 | In stock | |
| 4 | 4080421 | LIGHT-OVRHD,LED | 1 | $79.99 | In stock | |
| 5 | 7082944 | CLIP-SLIDE | 1 | $6.99 | In stock | |
| 6 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 0 | $5.99 | In stock | |
| 7 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 4 | $3.99 | In stock | |
| 8 | 4016007 | BLOCK-TERMINAL,3 POST,TALL | 1 | $44.99 | Out of stock Est. Aug 21, 2026 |
