Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, HARNESS CHASSIS - 2418157-01 (S2418157-01)
Product Description

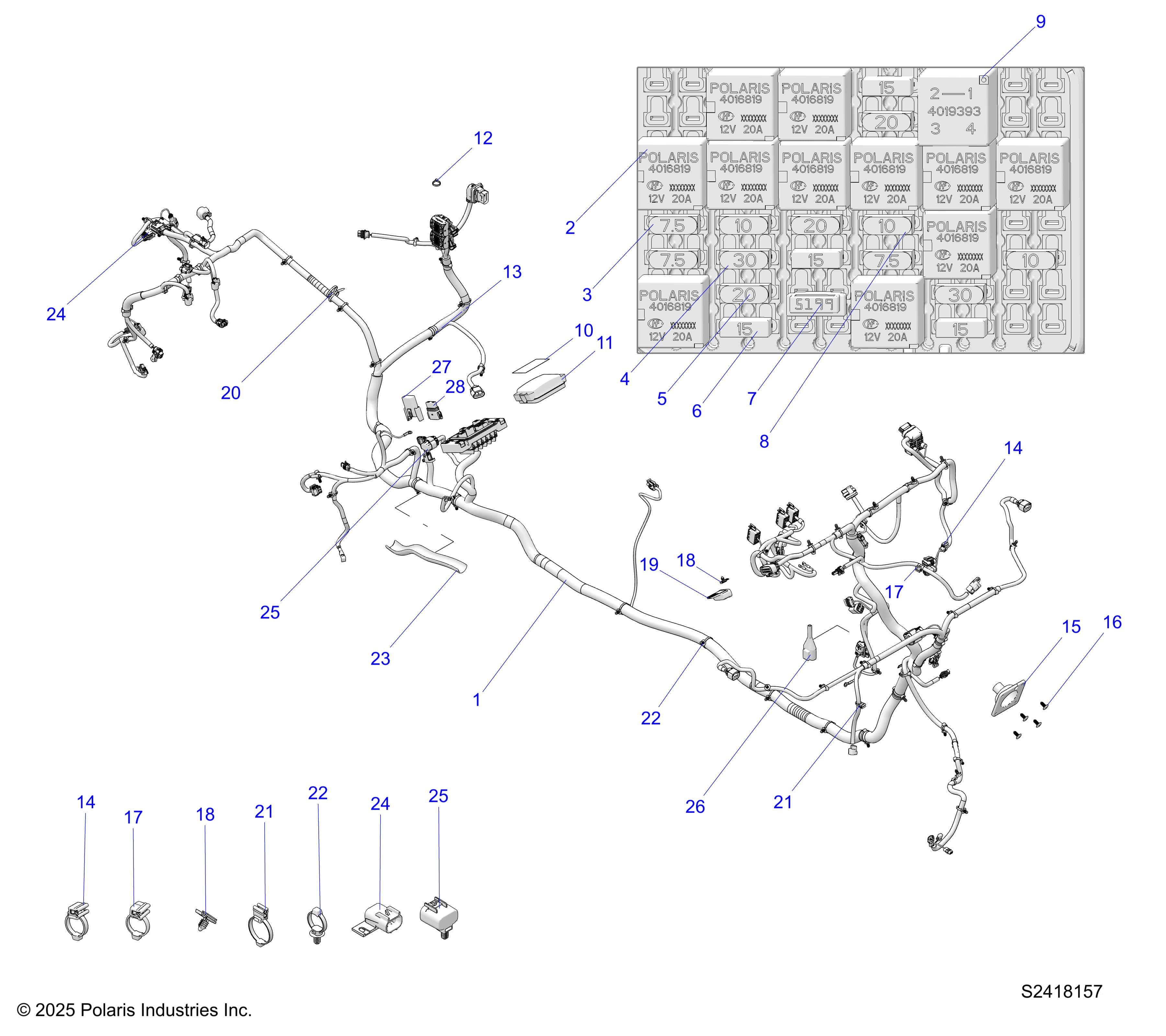

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247911
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2418157-06 | HARN-CHASSIS,HVAC,CREW,TB [INCLUDES ALL] | 1 | $1,729.99 | In stock | |
| 2 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 11 | $44.99 | In stock | |
| 3 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 3 | $13.99 | Out of stock Est. Sep 14, 2026 | |
| 4 | 2434015 | FUSE-MAIN,30 AMP | 2 | $9.99 | In stock | |
| 5 | 2434017 | FUSE-PARK,20 AMP | 3 | Price TBD | Out of stock | |
| 6 | 2410280 | FUSE-MINI BLADE,15 AMP | 4 | Price TBD | Out of stock | |
| 7 | 4081932 | RESISTOR-620 OHM, MINI | 1 | $54.99 | Out of stock Est. Sep 11, 2026 | |
| 8 | 2434016 | FUSE-IGNITION,10 AMP | 3 | $6.99 | In stock | |
| 9 | 4019393 | SSR-4PIN | 1 | $134.99 | In stock | |
| 10 | 7301184 | DECAL-RELAY/FUSE BLOCK,HVAC | 1 | Price TBD | Out of stock | |
| 11 | 4081174 | COVER-FUSEBOX,96WAY | 1 | $84.99 | In stock | |
| 12 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 1 | $2.99 | In stock | |
| 13 | 7082747 | STRAP-TREE MOUNT CABLE TIE | 1 | $0.99 | In stock | |
| 14 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | $5.99 | In stock | |
| 15 | 5814560 | GROMMET - 65MM, W/FLANGE, BLK | 1 | $15.99 | In stock | |
| 16 | 7670090 | CLIP-FIR TREE,DART,6.35MM | 4 | $1.49 | In stock | |
| 17 | 7082400 | CLIP-EDGE,1-3MM THICKNESS | 1 | $6.99 | In stock | |
| 18 | 7082134 | CLIP-FIR,HOLE6.35MM | 1 | $4.99 | In stock | |
| 19 | 4083558 | CAP-CON,16P,GT150/280 | 1 | $9.99 | In stock | |
| 20 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 1 | $5.99 | In stock | |
| 21 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 1 | $6.99 | In stock | |
| 22 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 47 | $5.99 | In stock | |
| 23 | 5466438 | TRAY-ROUTING,HARNESS | 1 | $5.99 | In stock | |
| 24 | 4083557 | CAP-CONN,2P,MP280 | 1 | $9.99 | In stock | |
| 25 | 4083556 | CAP-CONN,8P,DIAGNOSTIC,W/CLIP | 1 | $9.99 | In stock | |
| 26 | 4080238 | THROTTLE-CON BOOT | 1 | $11.99 | In stock | |
| 27 | 4018207 | HOLDER-FUSE,SEALED | 1 | $89.99 | In stock | |
| 28 | 4017180 | FUSE-MAXI,50A | 1 | $54.99 | In stock |
