Schematic diagram
Polaris•Schematic assembly

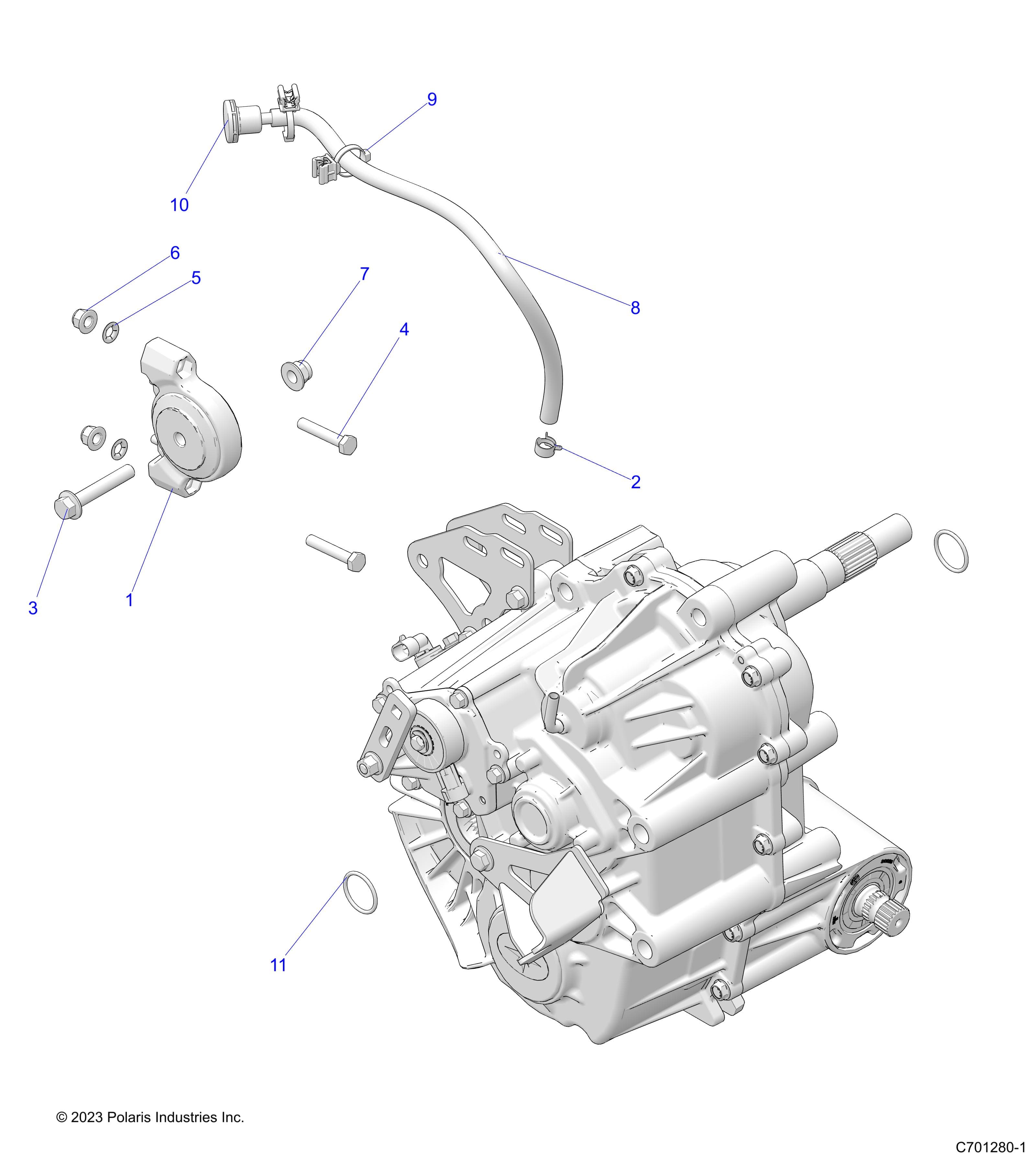

DRIVE TRAIN, MAIN GEARCASE MOUNTING - R26RSV99AK (C701280-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247902
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1337232 | ASM-GEARCASE,REAR,DIFF [TO 07/23/2026] | 1 | $3,299.99 | Out of stock Est. Jul 16, 2026 | |
| - | 1337551 | ASM-GEARCASE,MAIN,RC [FROM 07/23/2026] | 1 | Price TBD | Out of stock | |
| 1 | 1332955 | MOUNT-ISOLATOR,DRIVELINE | 1 | $89.99 | In stock | |
| 2 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 1 | $4.99 | In stock | |
| 3 | 7518563 | SCR-HXFL-M10X1.25X60 8.8 ZOD | 1 | $3.99 | In stock | |
| 4 | 7519097 | SCREW-HH M8X1.25X45 8.8 ZOD | 2 | $1.99 | In stock | |
| 5 | 7547030 | NUT-5/16-PAL-Y | 2 | $5.99 | In stock | |
| 6 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | $4.99 | In stock | |
| 7 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 1 | $1.99 | In stock | |
| 8 | 8450040-43 | FUEL LINE-43 CENTIMETERS | 1 | $10.99 | In stock | |
| 9 | 7081824 | CLIP-EDGE,DIA5-50MM,OUT-SER | 1 | $15.99 | In stock | |
| 10 | 7052758 | VENT-GEARCASE,8MM | 1 | $17.99 | In stock | |
| 11 | 5143247 | O-RING,28.24X2.62,VITON,60A | 2 | $5.99 | In stock |
