Schematic diagram
Polaris•Schematic assembly

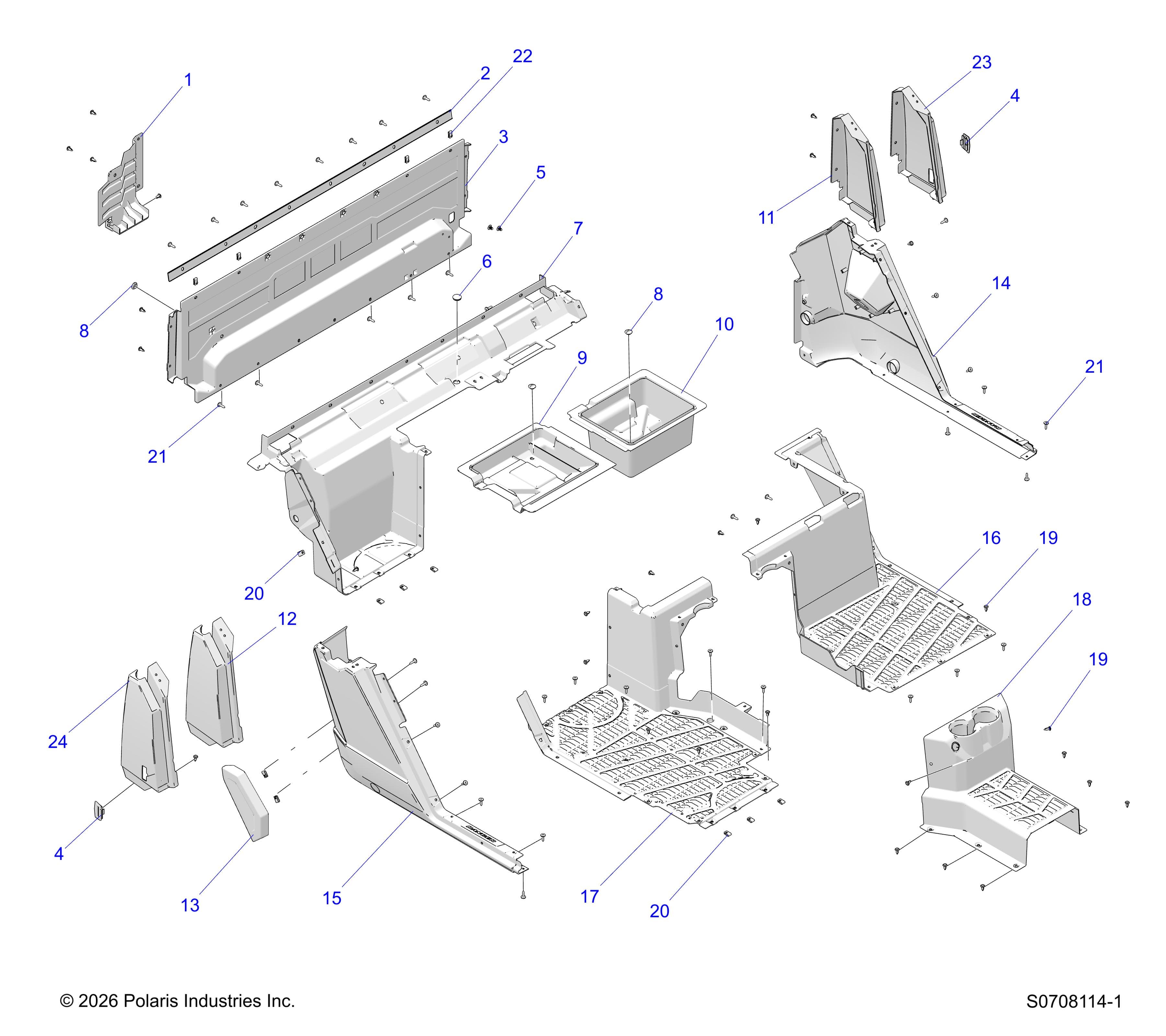

BODY, REAR CLOSE OFF, FENDERS & FLOOR
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247870
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5466812-070 | PANEL-CLOSEOFF,FUEL RGR,BLK | 1 | $24.99 | In stock | |
| 2 | 5273784-458 | CVR-CLOSEOFF,LWR,RR,FS,BLK [TO 03/09/2026] | 1 | $69.99 | In stock | |
| 2 | 5276394-458 | CVR-CLOSEOFF,LWR,RR,FS,BLK [FROM 03/09/2026 | 1 | Price TBD | Out of stock | |
| 3 | 5466830-070 | PANEL-CLOSEOFF,REAR,BLK | 1 | $449.99 | In stock | |
| 4 | 5419393 | GROMMET-DOOR,HINGE,LOWER [FROM 07/06/2026] | 2 | $3.99 | Out of stock Est. Sep 25, 2026 | |
| 5 | 7670088 | CLIP-PLASTIC DART, NYLON | 3 | $1.99 | In stock | |
| 6 | 5415304 | GROMMET | 1 | $3.99 | In stock | |
| 7 | 5466354-070 | PANEL-CLOSEOFF,LOWER,BLK | 1 | $354.99 | In stock | |
| 8 | 5418084 | PLUG-COMPARTMENT | 3 | $3.99 | In stock | |
| 9 | 2209538 | K-BIN-STORAGE,RH,BLK [INCLUDES DECAL] | 1 | $59.99 | In stock | |
| 10 | 2212947 | K-BIN,STORAGE,RGR XP,LH,BLK [INCLUDES DECAL] | 1 | $74.99 | In stock | |
| 11 | 5453734-070 | FENDER-REAR,UPPER,LH,BLK [TO 07/06/2026] | 1 | $134.99 | In stock | |
| 12 | 5453735-070 | FENDER-REAR,UPPER,RH,BLK [TO 07/06/2026] | 1 | $134.99 | In stock | |
| 13 | 5454230-070 | COVER-SEAT PIVOT, BLK | 2 | $15.99 | In stock | |
| 14 | 5459915-070 | FENDER-REAR,ROCKER,LH,BLK | 1 | $284.99 | In stock | |
| 15 | 5459916-070 | FENDER-REAR,ROCKER,RH,BLK | 1 | $284.99 | In stock | |
| 16 | 5454374-070 | FLOOR,REAR,LH,BLK | 1 | $304.99 | In stock | |
| 17 | 5454375-070 | FLOOR,REAR,RH,BLK | 1 | $304.99 | In stock | |
| 18 | 5454377-070 | COVER-TUNNEL FLOOR, REAR, BLK | 1 | $84.99 | In stock | |
| 19 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 0 | $1.49 | In stock | |
| 20 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 0 | $1.49 | In stock | |
| 21 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 0 | $4.99 | In stock | |
| 22 | 7081305 | CLIP-U SPEED NUT � | 4 | $2.49 | In stock | |
| 23 | 5467360-070 | FENDER-REAR,UPPER,LH,BLK [FROM 07/06/2026] | 1 | $134.99 | Out of stock | |
| 24 | 5467361-070 | FENDER-REAR,UPPER,RH,BLK [FROM 07/06/2026] | 1 | $134.99 | Out of stock |
