Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, DASH INSTRUMENTS PLUS RIDE COMMAND
Product Description

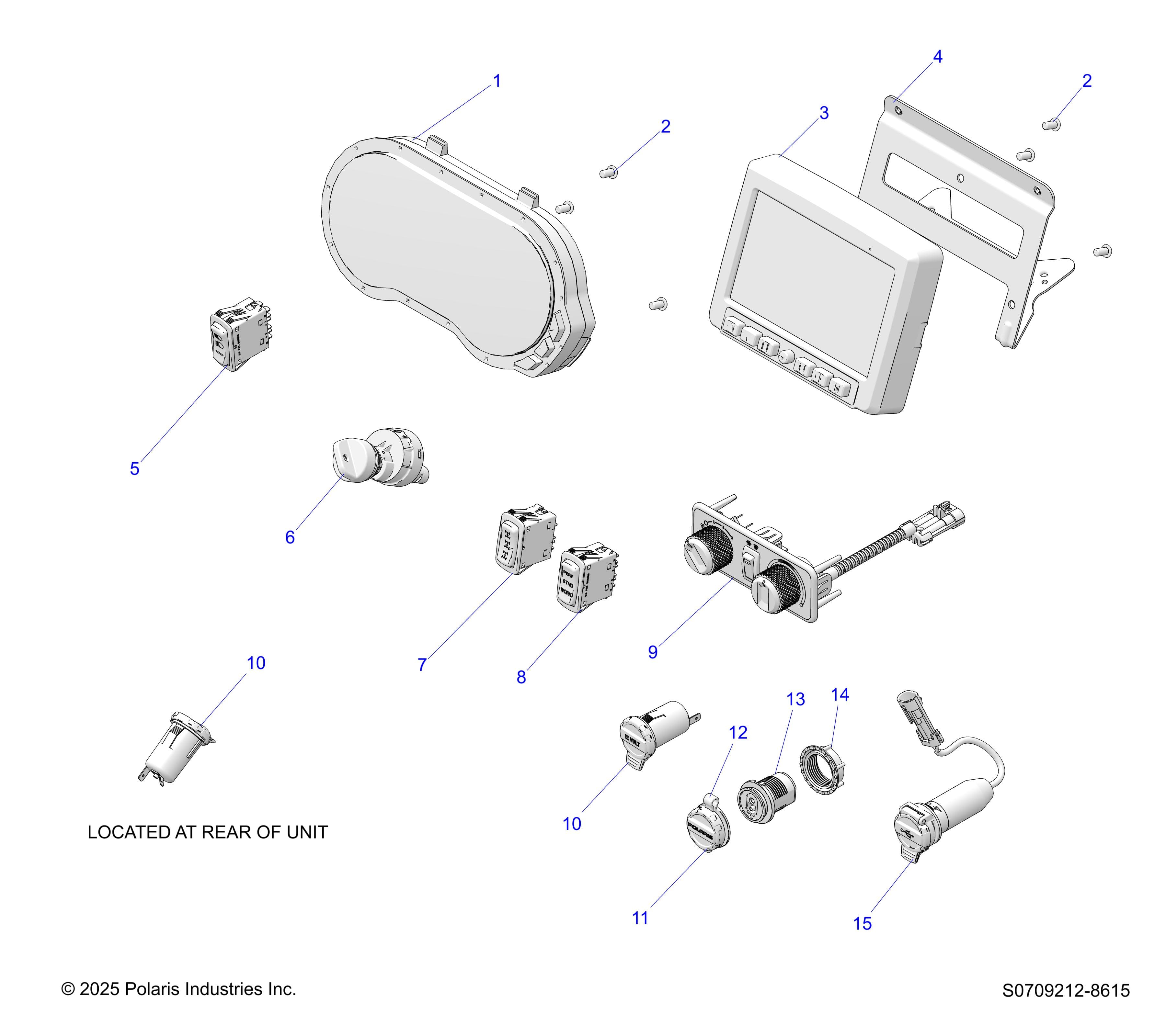

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE Assembly ID: 247561
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3287074 | ASM-C4,RZR,RGR,GNRL,500K | 1 | $509.99 | In stock | |
| 2 | 7518330 | SCR-TORX BTNHD,M6X12,0600129 | 3 | $5.99 | In stock | |
| 3 | 3286949 | ASM DISPLAY-DIG,P7,PRG,500K | 1 | $2,099.99 | In stock | |
| 4 | 5273092-329 | BRKT-7" DISPLAY,RC,BLK | 1 | $14.99 | In stock | |
| 5 | 4080274-01 | SWITCH, HEADLIGHT | 1 | $74.99 | In stock | |
| 6 | 4083542 | SWITCH-KEY,4 POSITION,SEALED | 1 | $139.99 | In stock | |
| 7 | 4018371 | SWITCH-AWD | 1 | $119.99 | In stock | |
| 8 | 4080274-07 | SWITCH-DRIVEMODE,3MODE,RGR | 1 | $64.99 | Out of stock Est. Sep 28, 2026 | |
| 9 | 2416422 | CONTROL,HVAC | 1 | $224.99 | In stock | |
| 10 | 4080487 | RECEPTACLE-POD MNT,12 VOLT | 2 | $44.99 | In stock | |
| 11 | 2415295 | ASM-CHARGE PORT,BASE [INCLUDES 12-14] | 1 | $54.99 | In stock | |
| 12 | 2415198 | PLUG-HARNESS CHARGE PORT | 1 | Price TBD | Out of stock | |
| 13 | 5417215 | CAP-CHARGE PORT | 1 | $15.99 | In stock | |
| 14 | 5456622 | NUT-CHARGE PORT | 1 | Price TBD | Out of stock | |
| 15 | 4019210 | PORT-USB | 1 | $109.99 | In stock |
